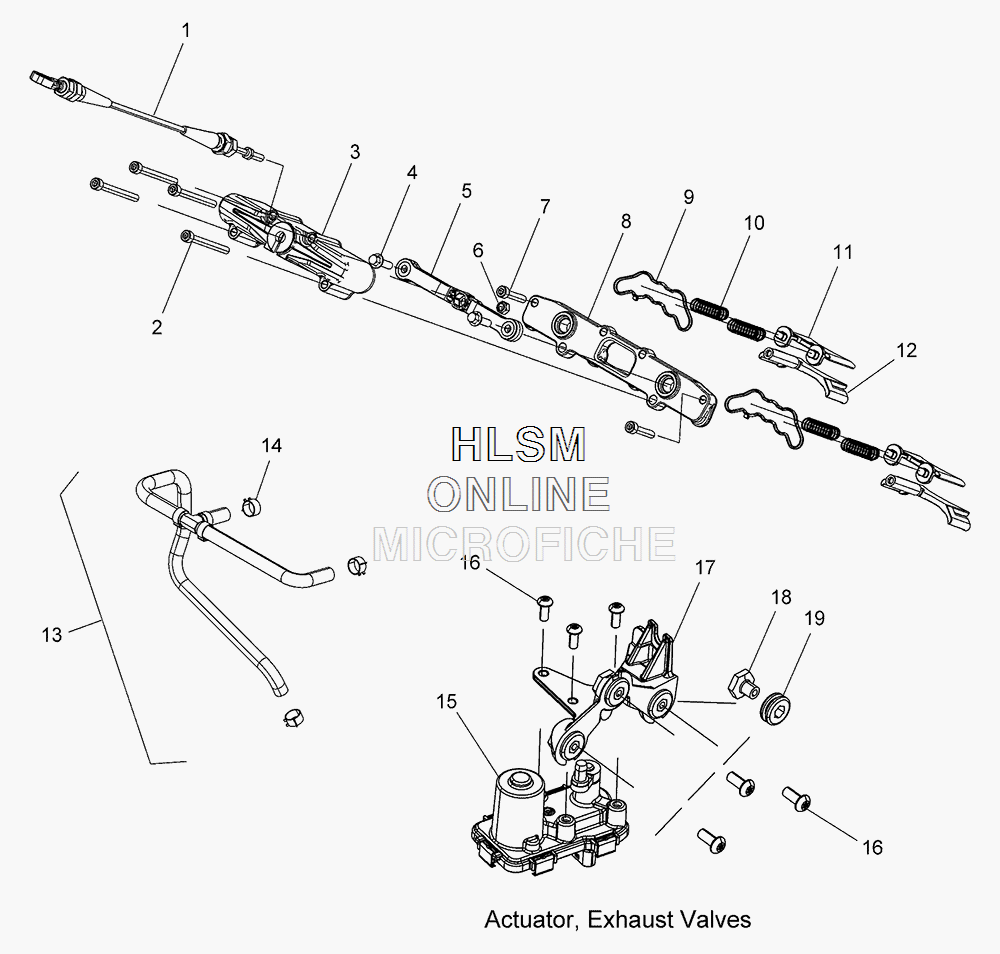

EXHAUST VALVE ASM. для Polaris 800 PRO RMK [S16EC8PSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2205698 KIT, EXHAUST VALVE ASM. (INCL. 1,4-6,8-12)
    KIT, EXHAUST VALVE ASM. (INCL. 1,4-6,8-12)
  • 1
    7081870 CABLE, EV VALVE, PUSH/PULL
    CABLE, EV VALVE, PUSH/PULL
  • 2
    7519885 SCREW
    SCREW
  • 3
    5632865 COVER, EXHAUST VALVE
    COVER, EXHAUST VALVE
  • 6
    7546703 NUT
    NUT
  • 7
    7519058 SCREW
    SCREW
  • 9
    5414680 SEAL, BASE TO CYL.
    SEAL, BASE TO CYL.
  • 10
    7044014 SPRING, EV, UPPER
    SPRING, EV, UPPER
  • 11
    5138524 VALVE, GUILLOTINE, EXHAUST, UPPER
    VALVE, GUILLOTINE, EXHAUST, UPPER
  • 13
    1205097 ASM-SUB,EV COOLANT HOSE (INCL. 14)
    ASM-SUB,EV COOLANT HOSE (INCL. 14)
  • 14
    7080003 CLAMP, HOSE, RED
    CLAMP, HOSE, RED
  • 15
    4014355 ACTUATOR, EV-SMART
    ACTUATOR, EV-SMART
  • 16
    7518656 BOLT
    BOLT
  • 17
    5139022 MOUNT, ACTUATOR, EV
    MOUNT, ACTUATOR, EV
  • 18
    5139301 SPACER, ISOLATION BUSHING
    SPACER, ISOLATION BUSHING
  • 19
    5415111 GROMMET, ISOLATION
    GROMMET, ISOLATION
