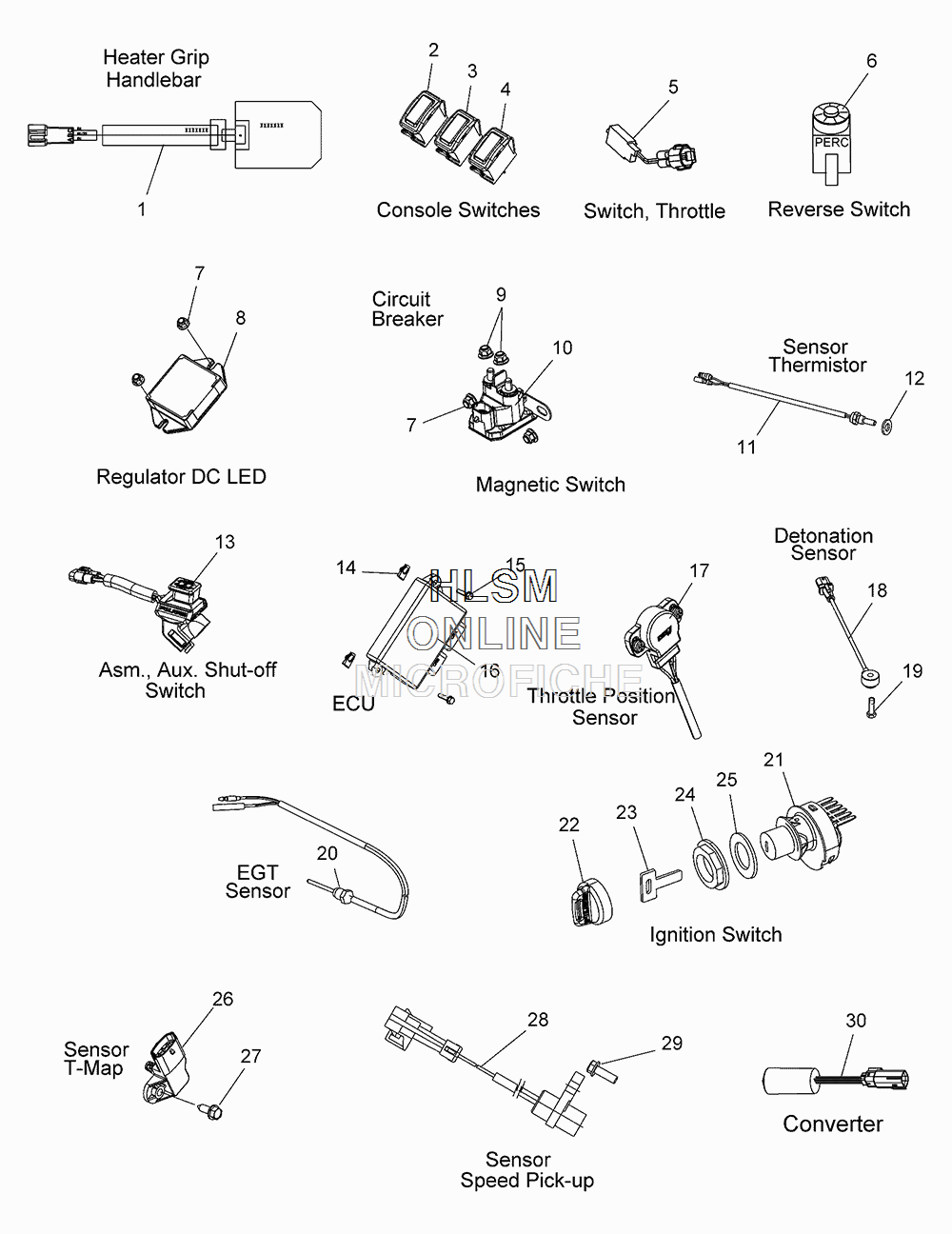

ELECTRICAL - SENSORS AND SWITCHES для Polaris 800 PRO RMK [S16EC8PSA] - 2016 года выпуска
-
№АртикулНазвание
-
12413077 GRIP, HEATER, LO/HI, ALUMGRIP, HEATER, LO/HI, ALUM
-
24011319 SWITCH, HAND WARMERSWITCH, HAND WARMER
-
34012090 SWITCH, MODE/SETSWITCH, MODE/SET
-
44012091 SWITCH, HEADLIGHT, HI/LOSWITCH, HEADLIGHT, HI/LO
-
54015245 SWITCH, THROTTLESWITCH, THROTTLE
-
64010874 SWITCH, E/R, MOMENTARYSWITCH, E/R, MOMENTARY
-
77547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
84015642 REGULATOR, DC LEDREGULATOR, DC LED
-
97547339 NUT, FLANGE, NYLOCNUT, FLANGE, NYLOC
-
104014655 SOLENOID, STARTER, SEALEDSOLENOID, STARTER, SEALED
-
114012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
127556357 WASHER, COPPERWASHER, COPPER
-
132010427 ASM., SWITCH, AUX. SHUTOFF, PRO T MNTASM., SWITCH, AUX. SHUTOFF, PRO T MNT
-
147547366 CLIP,''U''CLIP,''U''
-
157516823 SCREWSCREW
-
164014919 ECU, DC/SDI LE, AS, 32MHZECU, DC/SDI LE, AS, 32MHZ
-
173131751 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
182410369 SENSOR, DETONATIONSENSOR, DETONATION
-
197517262 SCREWSCREW
-
204013133 SENSOR, EGTSENSOR, EGT
-
214012165 SWITCH, KEY, 3 POSITION (INCL. 22-25)SWITCH, KEY, 3 POSITION (INCL. 22-25)
-
225433534 COVER, KEYCOVER, KEY
-
234010278 KEY, BLANK (SEE NOTE)KEY, BLANK (SEE NOTE)
-
245433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
257556327 WASHER, NYLONWASHER, NYLON
-
262410422 SENSOR, T-MAPSENSOR, T-MAP
-
277512098 SCREWSCREW
-
282412792 SENSOR, SPEED PICK-UP, LGSENSOR, SPEED PICK-UP, LG
-
297519236 SCREWSCREW
-
304014356 CONVERTER, PWM TO ANALOGCONVERTER, PWM TO ANALOG
