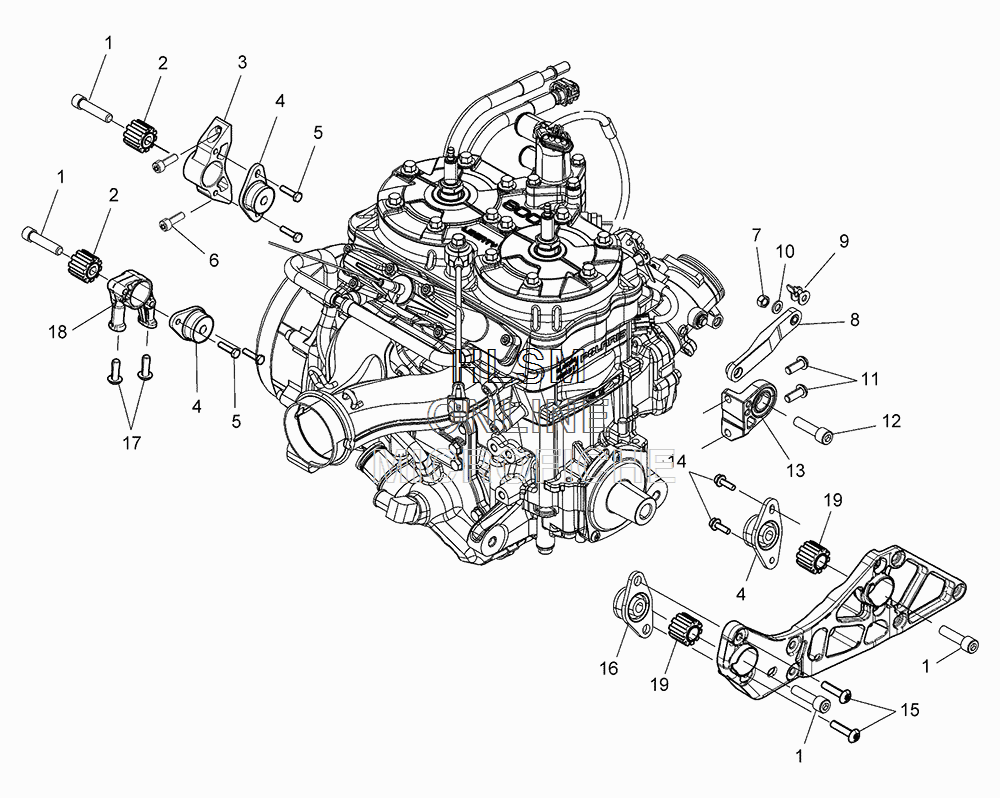

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 PRO RMK [S16EC8PSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2205653 ENGINE, SHORT BLOCK
    ENGINE, SHORT BLOCK
  • 1
    7519334 SCREW
    SCREW
  • 2
    3022698 MOUNT, ENGINE INSERT RAD, MAG
    MOUNT, ENGINE INSERT RAD, MAG
  • 3
    5138294 MOUNT, ENGINE, REAR, MAG
    MOUNT, ENGINE, REAR, MAG
  • 4
    3022713 MOUNT, ENGINE
    MOUNT, ENGINE
  • 5
    7516823 SCREW
    SCREW
  • 6
    7519010 SCREW
    SCREW
  • 7
    7547332 NUT, FLANGED, NYLOCK
    NUT, FLANGED, NYLOCK
  • 8
    1019944 ASM., LINK, TORQUE, FIXED, OFFSET
    ASM., LINK, TORQUE, FIXED, OFFSET
  • 9
    5258166 BRKT., WASHER, 14GA.
    BRKT., WASHER, 14GA.
  • 10
    7556216 WASHER
    WASHER
  • 11
    7519648 SCREW
    SCREW
  • 12
    7519119 SCREW
    SCREW
  • 13
    3022281 LIMITER, TORQUE, ENGINE
    LIMITER, TORQUE, ENGINE
  • 14
    7516822 SCREW
    SCREW
  • 15
    7519049 SCREW
    SCREW
  • 16
    3022712 MOUNT, ENGINE, PTO, FRONT
    MOUNT, ENGINE, PTO, FRONT
  • 17
    7519070 SCREW
    SCREW
  • 18
    5139042 ENGINE, MOUNT, FRONT
    ENGINE, MOUNT, FRONT
  • 19
    3022697 MOUNT, ENGINE INSERT RAD, PTO
    MOUNT, ENGINE INSERT RAD, PTO
