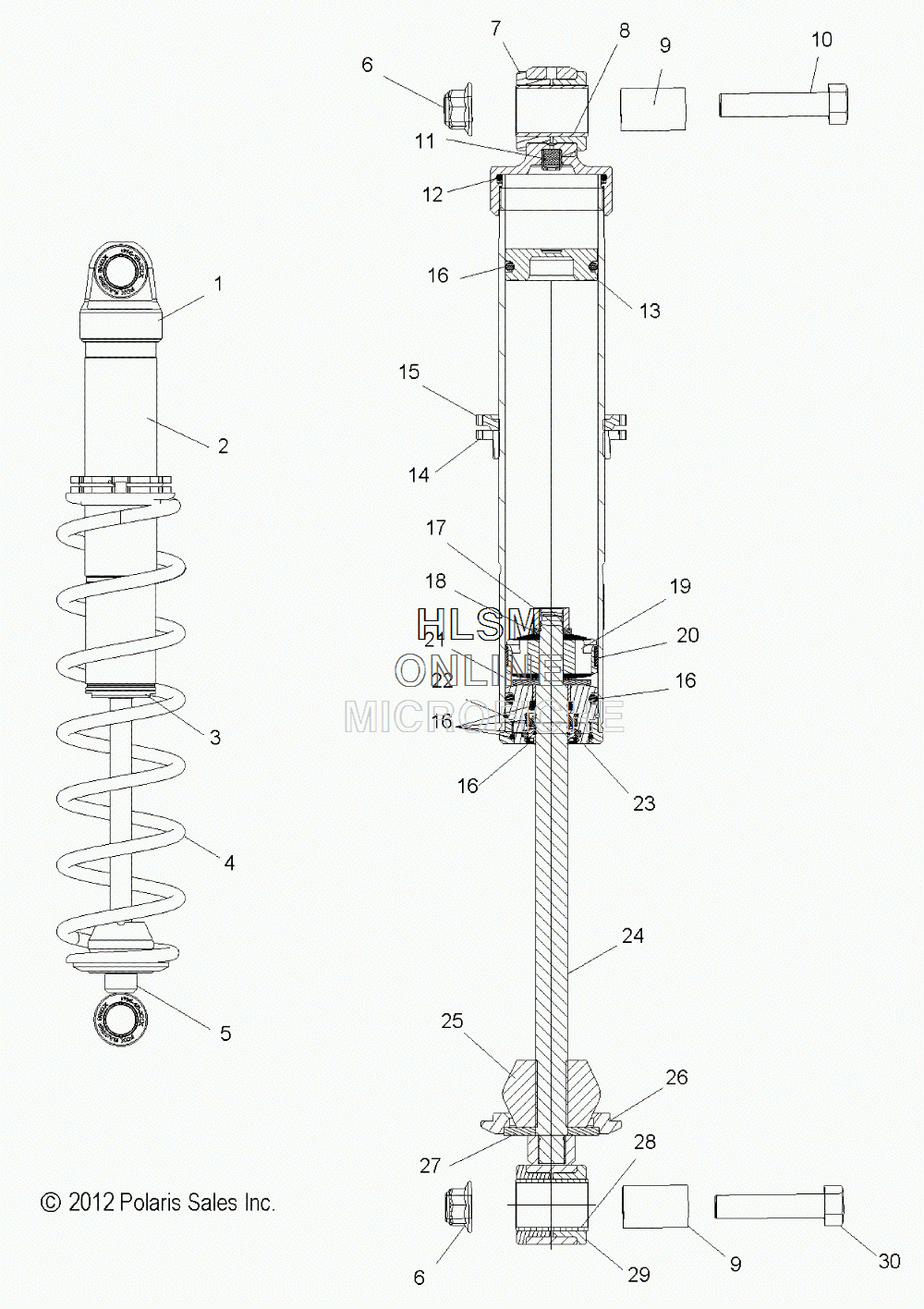

SUSPENSION - IFS SHOCK (7043861) для Polaris 800 INDY SP INTL [S15CP8] - 2015 года выпуска`
-
№АртикулНазвание
-
--7043861 SHOCK, IFSSHOCK, IFS
-
11500885 END CAP, BODYEND CAP, BODY
-
21500901 BODYBODY
-
31500891 BUSHINGBUSHING
-
47043732-133 SPRING, COMPRESSION, 80#, WHITESPRING, COMPRESSION, 80#, WHITE
-
51500889 EYELET, SHAFTEYELET, SHAFT
-
67547423 NUT, FLG. LOCNUT, FLG. LOC
-
71500903 BUSHINGBUSHING
-
81500852 SLEEVESLEEVE
-
95137360 BUSHINGBUSHING
-
107518941 SCREWSCREW
-
111500886 ASM., AIR VALVEASM., AIR VALVE
-
121500108 O-RINGO-RING
-
131500893 ASM., FLOAT. PISTONASM., FLOAT. PISTON
-
141500895 RING, SPRING PRELOADRING, SPRING PRELOAD
-
151500894 RING, PRELOAD, BACK-UPRING, PRELOAD, BACK-UP
-
161500710 KIT, REBUILDKIT, REBUILD
-
171500892 NUTNUT
-
181500017 PLATE, TOP-OUTPLATE, TOP-OUT
-
191500734 PISTON, .093 BLEEDPISTON, .093 BLEED
-
201500899 BEARING, EXTERNALBEARING, EXTERNAL
-
211500015 PLATE, BOTTOM-OUTPLATE, BOTTOM-OUT
-
221500097 WIRE, RETAINING RINGWIRE, RETAINING RING
-
231500890 ASM., BEARINGASM., BEARING
-
241500715 SHAFTSHAFT
-
251500902 BUMPERBUMPER
-
265630580 RETAINER, SPRING, SLOTTED, CASTRETAINER, SPRING, SLOTTED, CAST
-
271500896 WASHERWASHER
-
281500852 SLEEVESLEEVE
-
291500903 BUSHINGBUSHING
-
307518971 SCREWSCREW
