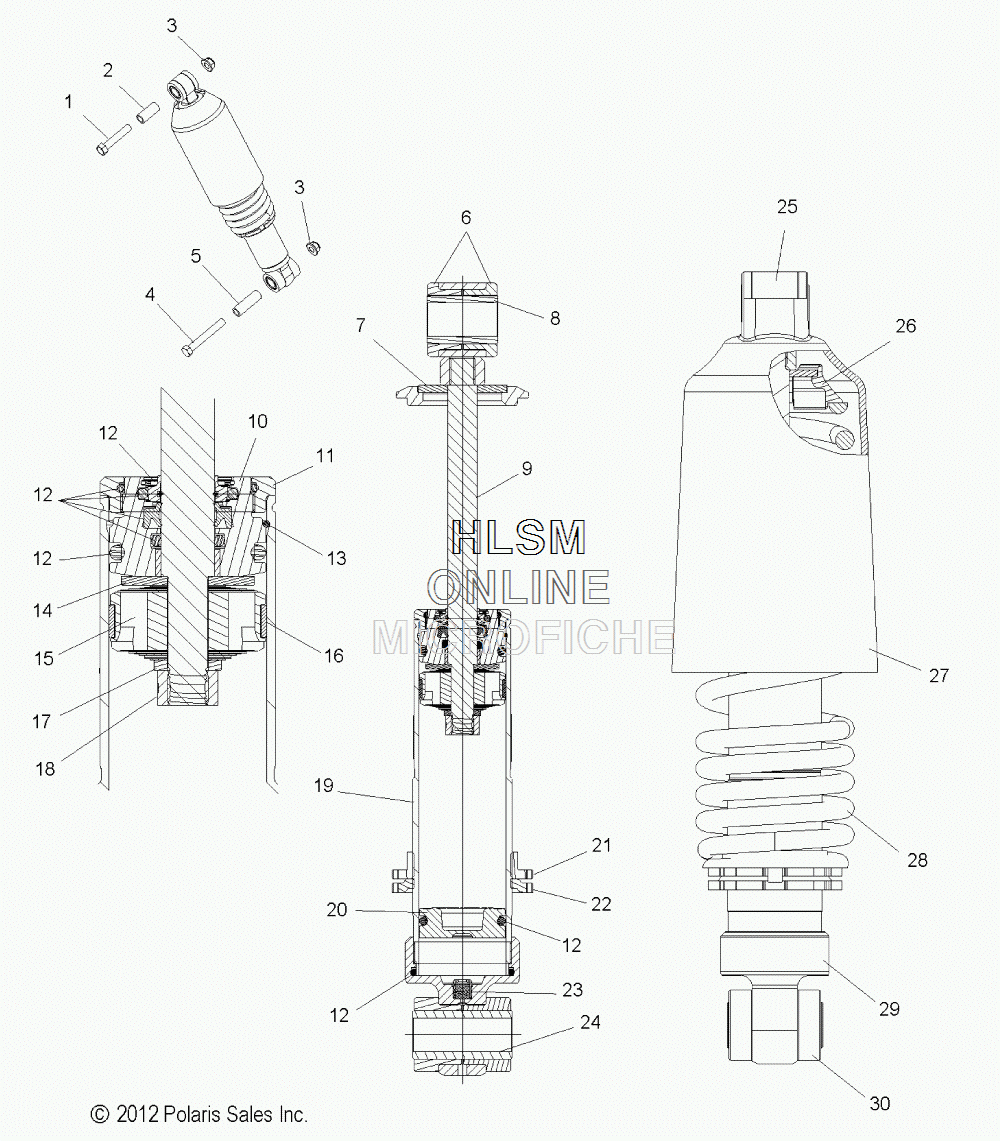

SUSPENSION - FRONT SHOCK TRACK (7043779) для Polaris 800 INDY SP INTL [S15CP8] - 2015 года выпуска`
-
№АртикулНазвание
-
--7043779 SHOCK, FRONT TRACK, IFPSHOCK, FRONT TRACK, IFP
-
--1500879 DECAL, ZERO PRODECAL, ZERO PRO
-
17515433 SCREWSCREW
-
25333905 BUSHINGBUSHING
-
37547263 NUT, FLG. LOCNUT, FLG. LOC
-
47515417 SCREWSCREW
-
55333906 BUSHINGBUSHING
-
61500898 BUSHINGBUSHING
-
71500896 WASHER, CUSTOMWASHER, CUSTOM
-
81500310 SLEEVESLEEVE
-
91500888 SHAFTSHAFT
-
101500890 ASM., BEARINGASM., BEARING
-
111500891 BEARING CAPBEARING CAP
-
121500710 KIT, REBUILDKIT, REBUILD
-
131500097 WIRE, RETAINING RINGWIRE, RETAINING RING
-
141500015 PLATE, BACK-UPPLATE, BACK-UP
-
151500702 PISTONPISTON
-
161500899 BEARING, EXTERNALBEARING, EXTERNAL
-
171500017 PLATE, TOP-OUTPLATE, TOP-OUT
-
181500892 NUT, REVERSIBLENUT, REVERSIBLE
-
191500887 BODYBODY
-
201500893 ASM., FLOATING PISTONASM., FLOATING PISTON
-
211500894 RING, PRELOADRING, PRELOAD
-
221500895 RING, PRELOAD BACK-UPRING, PRELOAD BACK-UP
-
231500886 ASM., AIR VALVEASM., AIR VALVE
-
241500312 SLEEVESLEEVE
-
251500889 EYELET, SHAFTEYELET, SHAFT
-
265632166 RETAINER, SPRING CONE, CASTRETAINER, SPRING CONE, CAST
-
275437525 SHIELD, SPRINGSHIELD, SPRING
-
287043147-067 SPRING, FT, BLACKSPRING, FT, BLACK
-
291500885 BODY CAPBODY CAP
-
301500897 BUSHINGBUSHING
