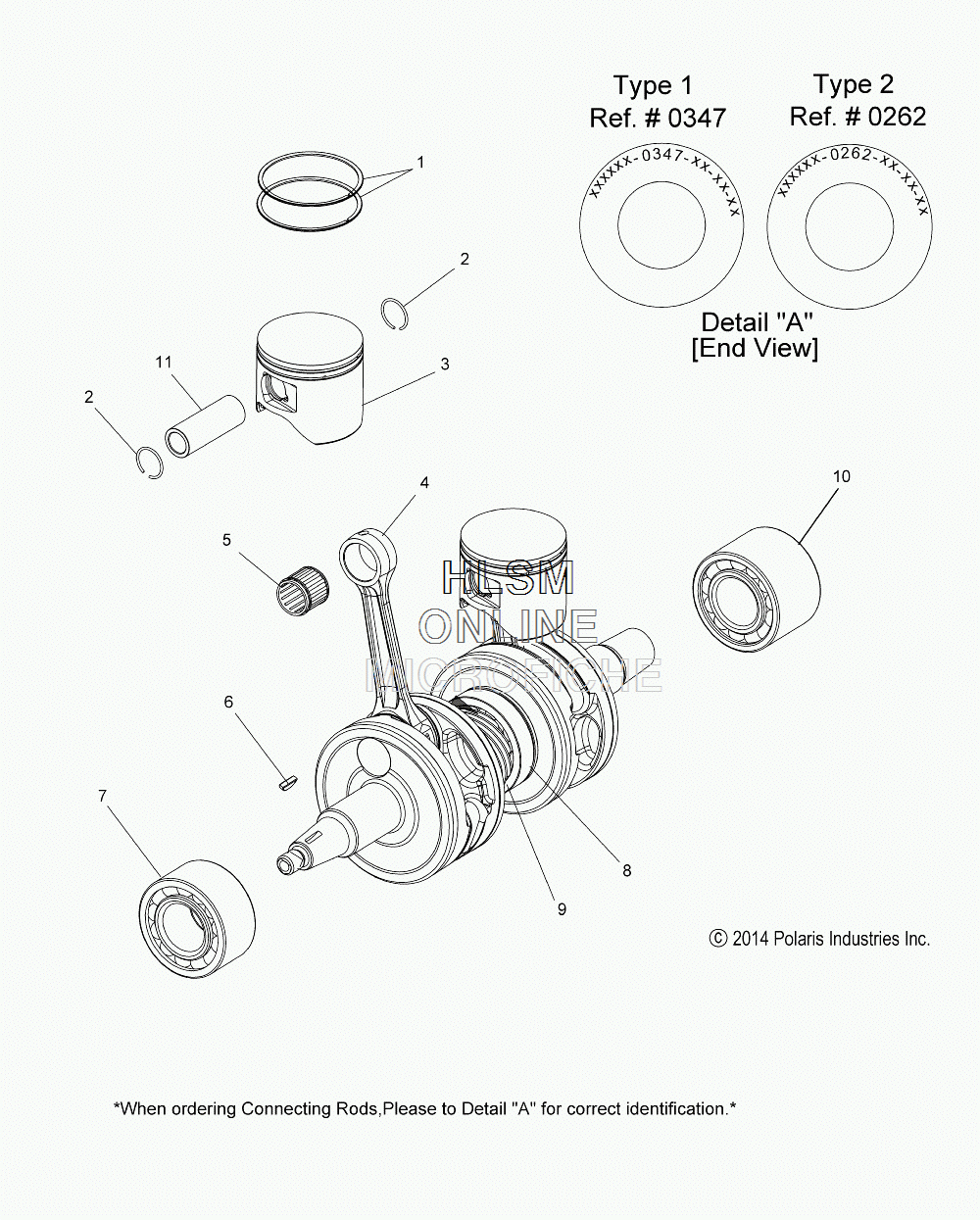

CRANKSHAFT ASSY. W/ PISTON для Polaris 800 INDY SP INTL [S15CP8] - 2015 года выпуска

‹-+›
  • №
    Артикул
    Название
  • --
    2205649 KIT, CRANKSHAFT (INCL. 4,5,7-10)
    KIT, CRANKSHAFT (INCL. 4,5,7-10)
  • 1
    2205177 KIT, PISTON RINGS, 800LE (INCL. 2 RINGS)
    KIT, PISTON RINGS, 800LE (INCL. 2 RINGS)
  • 2
    3021840 CIRCLIP, PISTON
    CIRCLIP, PISTON
  • 3
    2205176 KIT, PISTON (INCL. 1,2,11)
    KIT, PISTON (INCL. 1,2,11)
  • 4
    2205687 KIT, CONNECTING ROD (TYPE 1) (INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS)
    KIT, CONNECTING ROD (TYPE 1) (INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS)
  • 4
    2204622 KIT, CONNECTING ROD (TYPE 2) (INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS)
    KIT, CONNECTING ROD (TYPE 2) (INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS)
  • 5
    3514357 BEARING
    BEARING
  • 6
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 7
    3514499 BEARING, BALL, DOUBLE ROW
    BEARING, BALL, DOUBLE ROW
  • 8
    3514363 BEARING, BALL
    BEARING, BALL
  • 8
    7710528 RING, SNAP
    RING, SNAP
  • 9
    5133689 GEAR, PUMP DRIVE
    GEAR, PUMP DRIVE
  • 10
    3514710 BEARING, BALL
    BEARING, BALL
