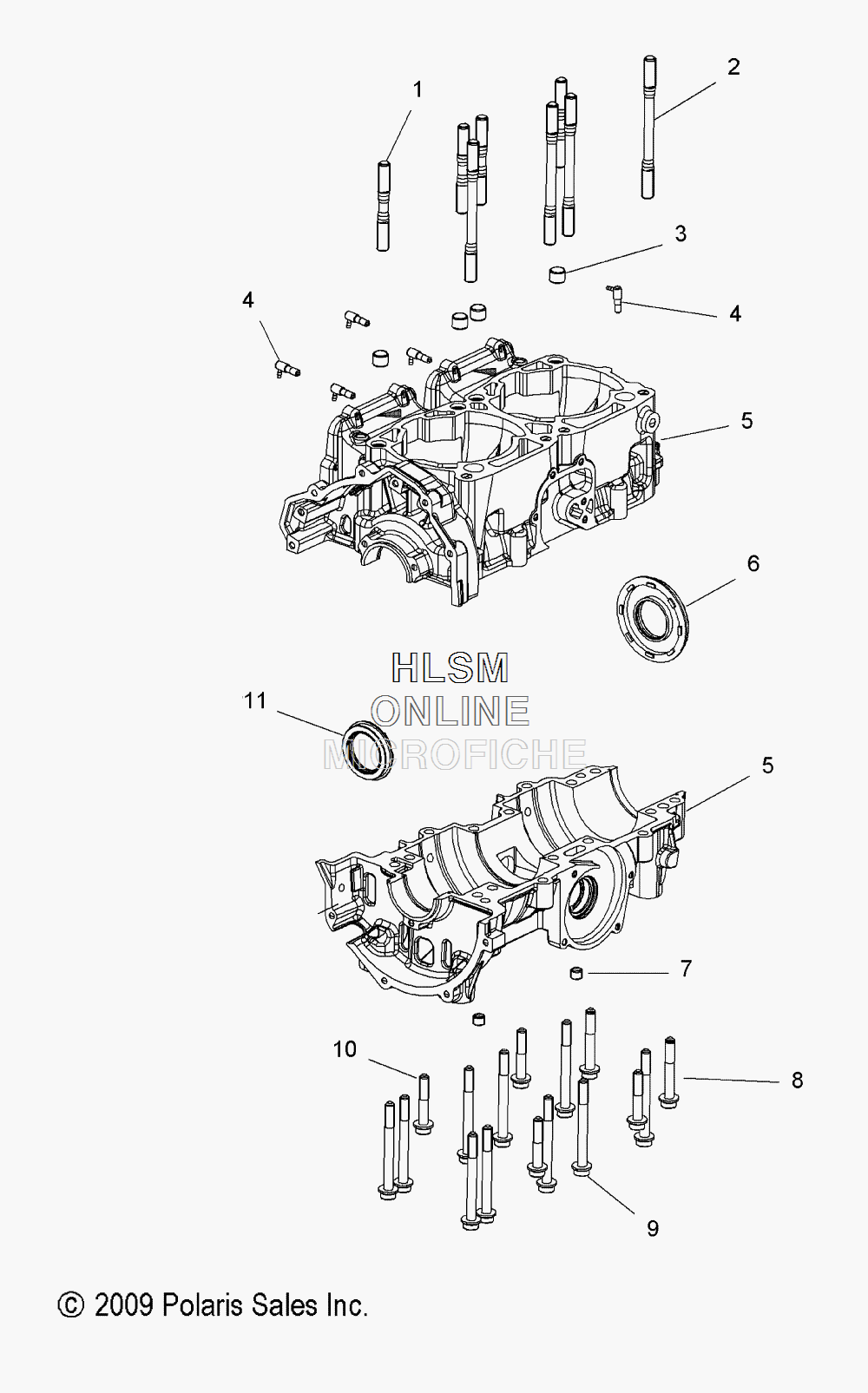

CRANKCASE ASSEMBLY для Polaris 600 SWITCHBACK ES [S12BR6NSL] - 2012 года выпуска`
-
№АртикулНазвание
-
15135956 STUD, CYLINDER 81MMSTUD, CYLINDER 81MM
-
25135955 STUD, CYLINDER 130MMSTUD, CYLINDER 130MM
-
37663008 DOWEL, HOLLOW M13X10DOWEL, HOLLOW M13X10
-
47051020 VALVE, CHECKVALVE, CHECK
-
52204114 KIT, CRANKCASE (INCL. 1,2,4,7-12 )KIT, CRANKCASE (INCL. 1,2,4,7-12 )
-
65411394 SEAL, FLANGESEAL, FLANGE
-
77052337 PLUGPLUG
-
87517785 BOLT M8X1.25X55BOLT M8X1.25X55
-
97517784 BOLT M8X1.25X80BOLT M8X1.25X80
-
107517786 BOLT M8X1.25X45BOLT M8X1.25X45
-
115414096 SEAL, FLANGED, MAGSEAL, FLANGED, MAG
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/ CLOSEOFF
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- • CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS W/ SIDE PANELS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL BOTTLE ASSEMBLY
- OIL PUMP W/LINES
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT MOUNTING
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - CRANK ASSEMBLY - REAR
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- TUNNEL ASSEMBLY
- WATER PUMP
- WINDSHIELD
