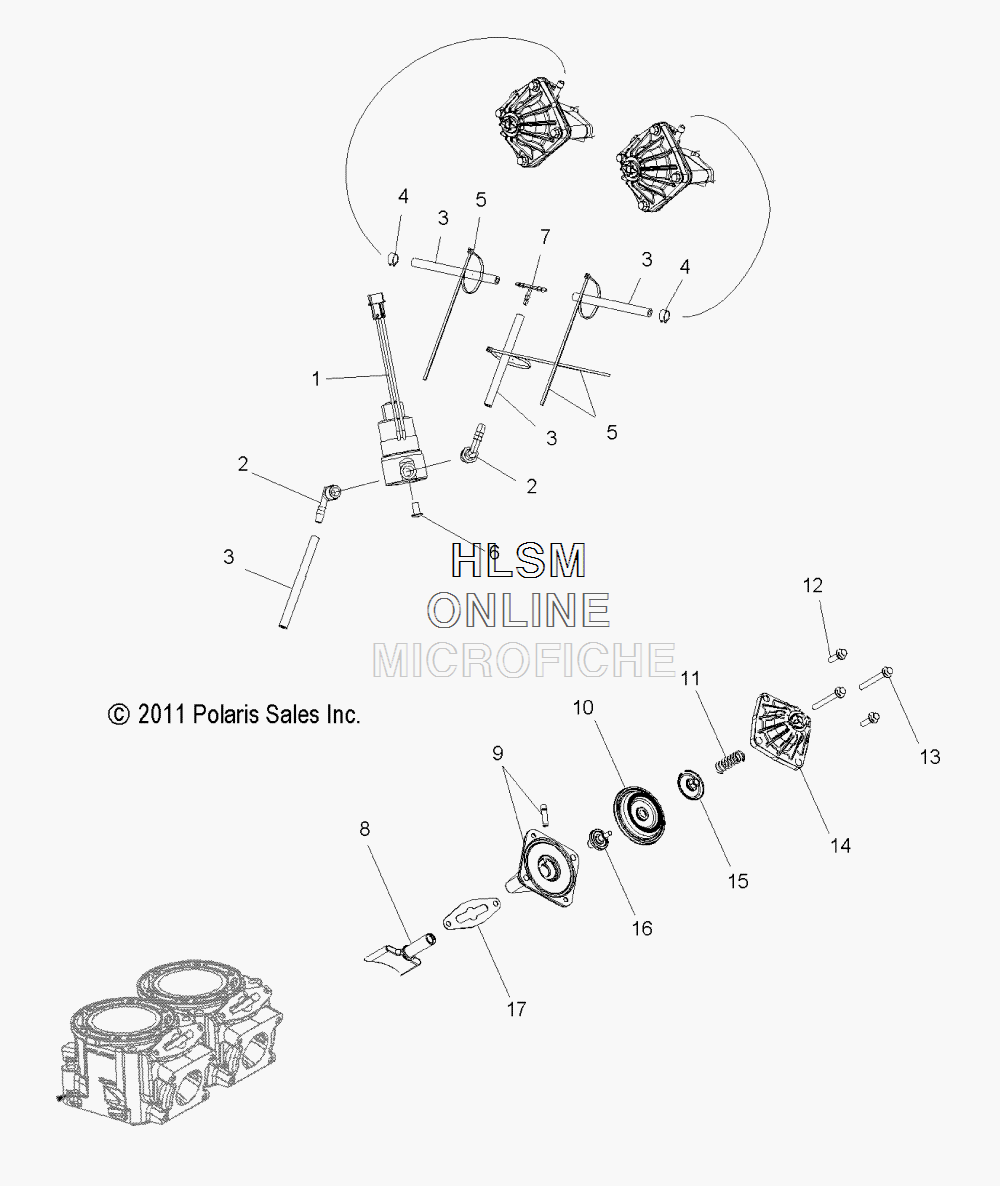

EXHAUST VALVES W/SOLENOID для Polaris 600 SWITCHBACK ES [S12BR6NSL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    4011244 SOLENOID, EV
    SOLENOID, EV
  • 2
    7050000 FITTING
    FITTING
  • 3
    8450040-600 LINE, FUEL
    LINE, FUEL
  • 4
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    7080138 CABLE TIE
    CABLE TIE
  • 6
    7518321 BOLT
    BOLT
  • 7
    7052075 FITTING, TEE
    FITTING, TEE
  • 8
    5137735 VALVE, GUILLOTINE
    VALVE, GUILLOTINE
  • 9
    1204445 BASE, EXHAUST VALVE W/FITTING
    BASE, EXHAUST VALVE W/FITTING
  • 9
    7052145 FITTING
    FITTING
  • 10
    5412733 BELLOWS
    BELLOWS
  • 11
    7041704-04 SPRING, PURPLE
    SPRING, PURPLE
  • 12
    7516820 SCREW
    SCREW
  • 13
    7517932 SCREW
    SCREW
  • 14
    1202640 ASM., HOUSING W/BUSHING
    ASM., HOUSING W/BUSHING
  • 15
    5137602 CAP/NUT, BELLOWS
    CAP/NUT, BELLOWS
  • 16
    5137733 STUD/WASHER, EXHAUST VALVE
    STUD/WASHER, EXHAUST VALVE
  • 17
    5812350 GASKET, BASE TO CYLINDER EXHAUST VALVE
    GASKET, BASE TO CYLINDER EXHAUST VALVE
