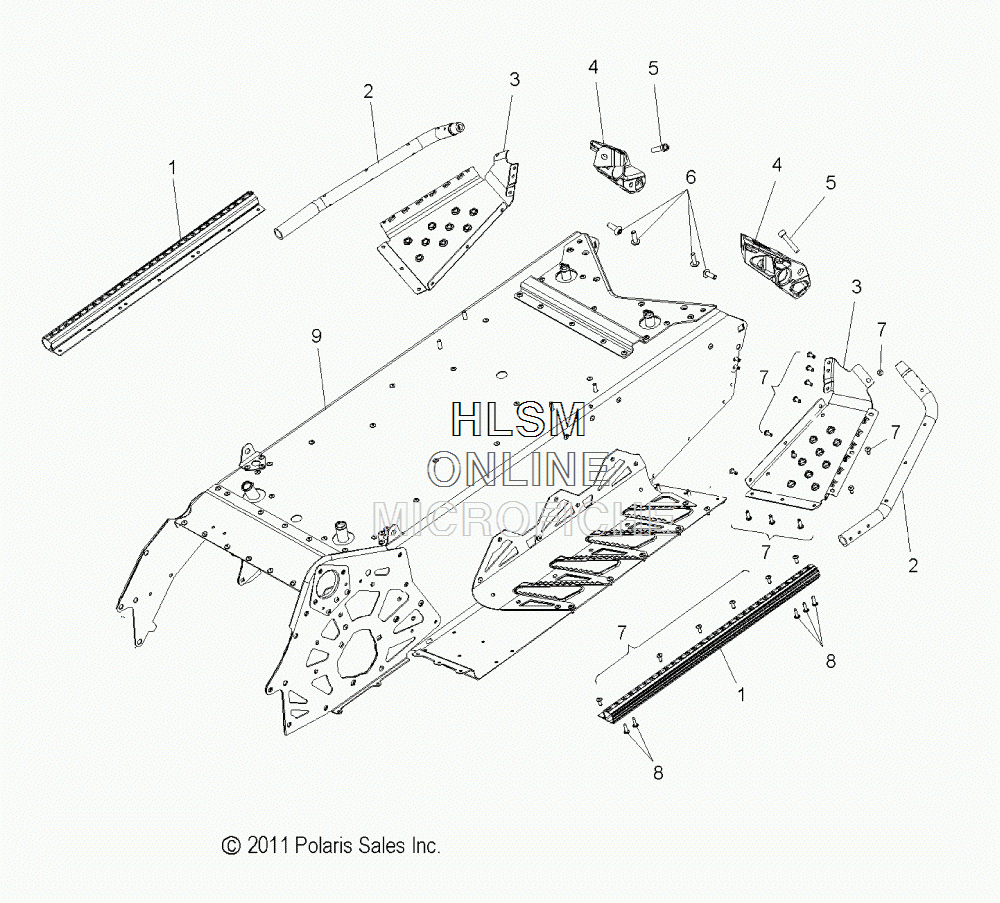

TUNNEL ASSEMBLY для Polaris 600 SWITCHBACK ES [S12BR6NSL] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    5136460 GRIPPER, TUNNEL
    GRIPPER, TUNNEL
  • 2
    1017788 ASM., SUPPORT, RUNNING BOARD
    ASM., SUPPORT, RUNNING BOARD
  • 3
    5254282 CLOSEOFF, RUNNING BOARD, LEFT HAND
    CLOSEOFF, RUNNING BOARD, LEFT HAND
  • 3
    5254283 CLOSEOFF, RUNNING BOARD, RIGHT HAND
    CLOSEOFF, RUNNING BOARD, RIGHT HAND
  • 4
    5137377 BRACE, SUPPORT, REAR, LEFT HAND
    BRACE, SUPPORT, REAR, LEFT HAND
  • 4
    5137378 BRACE, SUPPORT, REAR, RIGHT HAND
    BRACE, SUPPORT, REAR, RIGHT HAND
  • 5
    7518143 SCREW
    SCREW
  • 6
    7518906 SCREW
    SCREW
  • 7
    7661973 RIVET
    RIVET
  • 8
    7661637 RIVET
    RIVET
  • 9
    1017731-1241 ASM., TUNNEL, 136 INCH (MATTE BLACK) (INCL. TUNNEL COOLERS)
    ASM., TUNNEL, 136 INCH (MATTE BLACK) (INCL. TUNNEL COOLERS)
