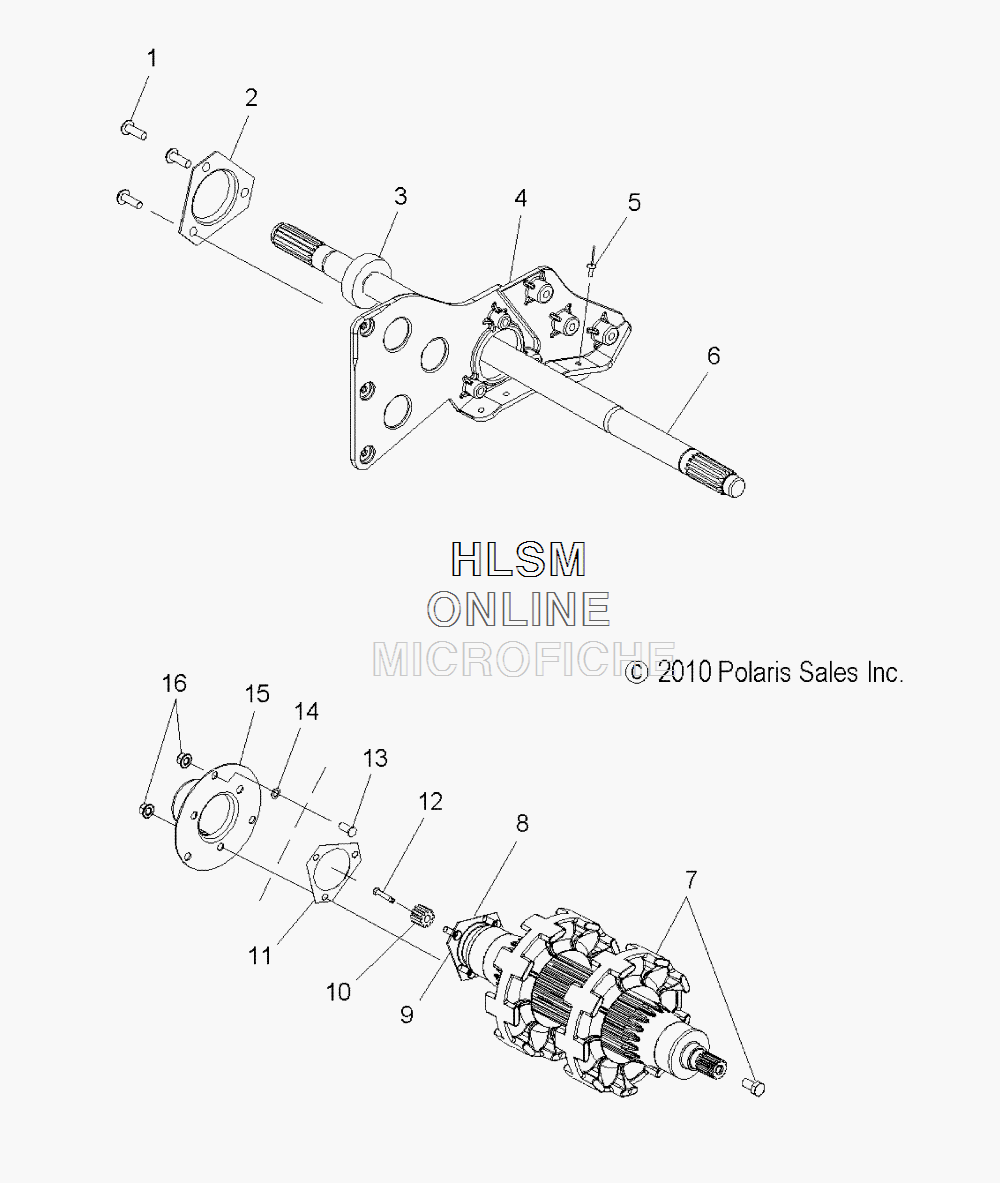

JACKSHAFT ASSEMBLY для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7518444 SCREW
    SCREW
  • 2
    5222751 FLANGETTE
    FLANGETTE
  • 3
    3514617 BEARING
    BEARING
  • 4
    5134106 MOUNT, JACKSHAFT BEARING, LEFT HAND
    MOUNT, JACKSHAFT BEARING, LEFT HAND
  • 5
    7661637 RIVET
    RIVET
  • 6
    1332453 ASM., JACKSHAFT (INCL. 3)
    ASM., JACKSHAFT (INCL. 3)
  • 7
    2204274 KIT, SVC, TUBULAR DRIVE SHAFT, SHORT (INCL. 3,8,9,16)
    KIT, SVC, TUBULAR DRIVE SHAFT, SHORT (INCL. 3,8,9,16)
  • 7
    7519004 SCREW
    SCREW
  • 8
    1016551 ASM., FLANGETTE W/SCREWS
    ASM., FLANGETTE W/SCREWS
  • 9
    3514448 BEARING
    BEARING
  • 10
    5240013 WHEEL, PICKUP, SPEEDO
    WHEEL, PICKUP, SPEEDO
  • 11
    5811095 GASKET, JACKSHAFT, BLACK
    GASKET, JACKSHAFT, BLACK
  • 12
    7516733 SCREW
    SCREW
  • 13
    7518049 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 14
    7547030 PALNUT
    PALNUT
  • 15
    5246960 HOUSING, DRIVE PICKUP
    HOUSING, DRIVE PICKUP
  • 16
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
