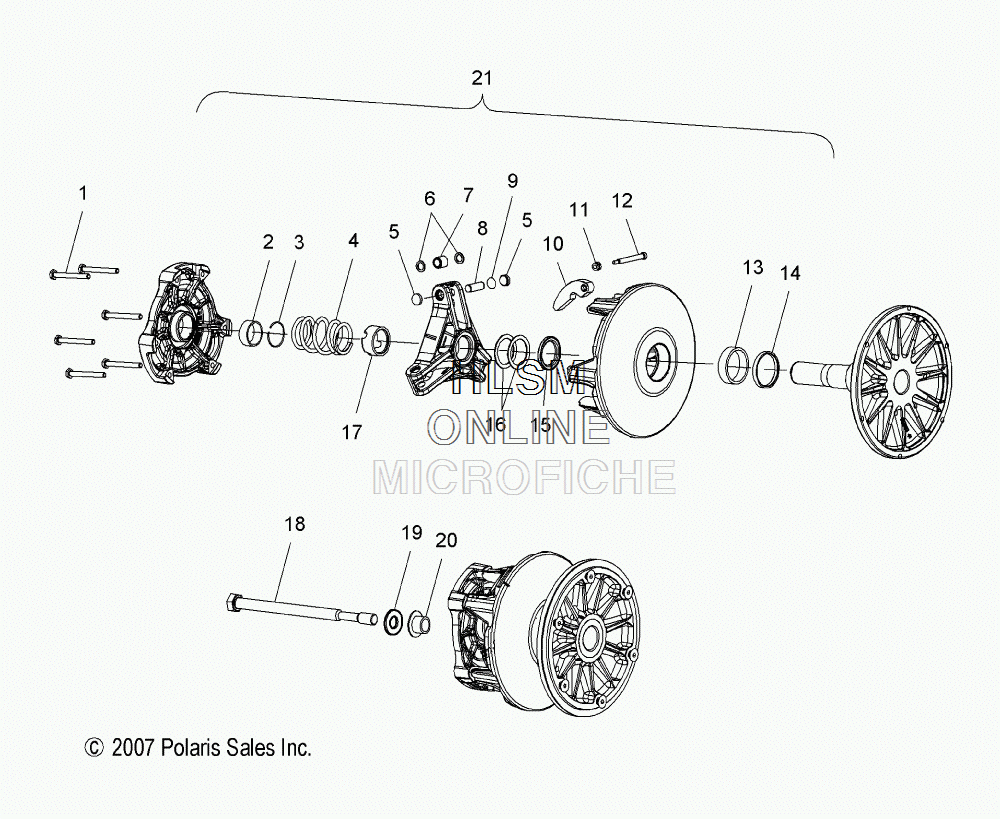

CLUTCH - PRIMARY для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7518349 SCREW
    SCREW
  • 2
    3576516 BEARING, COVER
    BEARING, COVER
  • 3
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 4
    7043121 SPRING, CLUTCH, 100/340
    SPRING, CLUTCH, 100/340
  • 5
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 6
    5430945 WASHER
    WASHER
  • 7
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 8
    5133079 PIN, ROLLER
    PIN, ROLLER
  • 9
    2200387 KIT, SHIM, DRIVE CLUTCH
    KIT, SHIM, DRIVE CLUTCH
  • 10
    1322597 ASM., WEIGHT/BUSHING, 11-66
    ASM., WEIGHT/BUSHING, 11-66
  • 11
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 12
    7515105 PIN, HARDENED WEIGHT
    PIN, HARDENED WEIGHT
  • 13
    3576502 BEARING, SLEEVE
    BEARING, SLEEVE
  • 14
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 15
    5134018 SPACER, .130
    SPACER, .130
  • 16
    5210754 SPACER, .050
    SPACER, .050
  • 16
    5210753 SPACER, .032
    SPACER, .032
  • 16
    5242981 SPACER, .025
    SPACER, .025
  • 16
    5210752 SPACER, .020
    SPACER, .020
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    7518412 SCREW
    SCREW
  • 19
    7556003 WASHER
    WASHER
  • 20
    5131872 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 21
    1322565 ASM., DRIVE CLUTCH, BASIC 225 (LESS 5,11)
    ASM., DRIVE CLUTCH, BASIC 225 (LESS 5,11)
