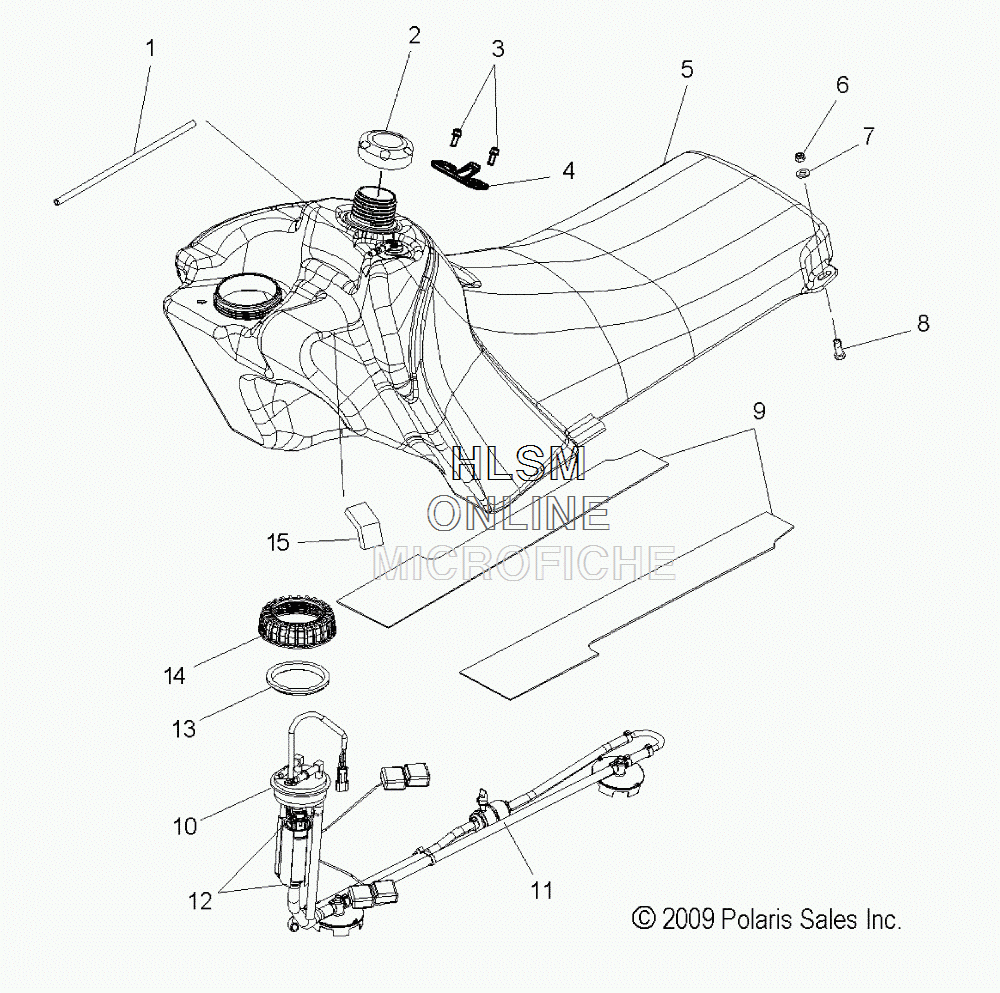

FUEL TANK для Polaris TURBO IQ LX [S11PD7FSL] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    8450126-72 LINE, VENT (VENT)
    LINE, VENT (VENT)
  • 2
    5435534 CAP, FUEL TANK
    CAP, FUEL TANK
  • 3
    7515136 SCREW
    SCREW
  • 4
    5247431 BRACKET, SEAT MOUNT
    BRACKET, SEAT MOUNT
  • 5
    2520798 ASM., FUEL TANK (INCL. 11)
    ASM., FUEL TANK (INCL. 11)
  • 6
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 7
    7556386 WASHER
    WASHER
  • 8
    7512263 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    5813057 PAD, GAS TANK, LEFT HAND
    PAD, GAS TANK, LEFT HAND
  • 9
    5813076 PAD, GAS TANK, RIGHT HAND
    PAD, GAS TANK, RIGHT HAND
  • 10
    2203302 KIT, PUMP/FLANGE, HI CAP, SVC (INCL. PUMP, PICK-UP, CLAMPS)
    KIT, PUMP/FLANGE, HI CAP, SVC (INCL. PUMP, PICK-UP, CLAMPS)
  • 10
    5437046 FLOAT, FUEL SENDER
    FLOAT, FUEL SENDER
  • 11
    2877637 KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #11)
    KIT, FUEL PICK-UP W/CLAMPS (INCL. GASKET, #11)
  • 12
    7081502 CLAMP, OETIKER, 15.3
    CLAMP, OETIKER, 15.3
  • 12
    7081503 CLAMP, OETIKER, 14.5, BLUE
    CLAMP, OETIKER, 14.5, BLUE
  • 13
    5413063 GASKET, PFA
    GASKET, PFA
  • 14
    5436628 NUT, PFA
    NUT, PFA
  • 15
    5813100 PAD, RUBBER
    PAD, RUBBER
