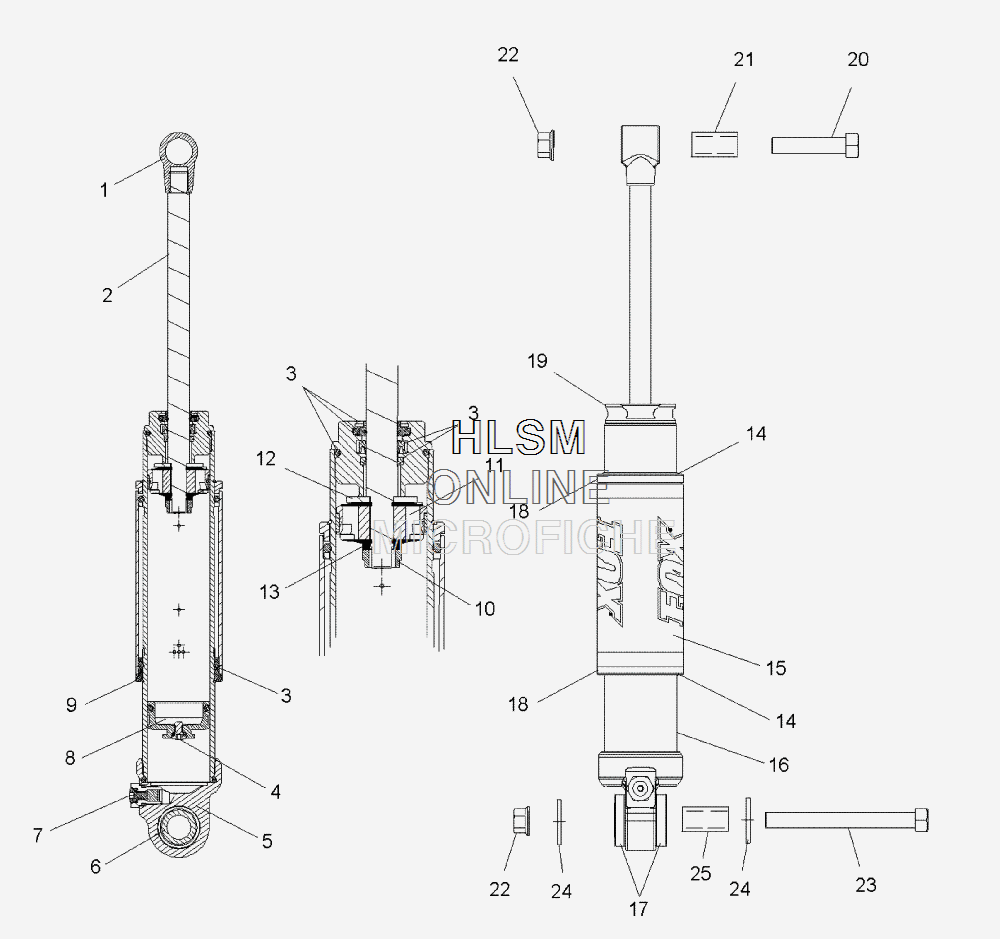

SUSPENSION- SHOCK- REAR TRACK (7043177) для Polaris TURBO LX (2010) [S10PD7FSL] - 2010 года выпуска
-
№АртикулНазвание
-
147043177 SHOCK, REAR TRACK, FOXSHOCK, REAR TRACK, FOX
-
11500598 EYELETEYELET
-
21500599 SHAFTSHAFT
-
31500611 KIT, REBUILDKIT, REBUILD
-
41500161 ASM., SCREW W/O-RINGASM., SCREW W/O-RING
-
51500602 ASM., BODY CAPASM., BODY CAP
-
61500610 SLEEVESLEEVE
-
71500019 SCREWSCREW
-
81500601 ASM., IFPASM., IFP
-
91500605 COLLARCOLLAR
-
101500016 NUT, LOCKNUT, LOCK
-
111500608 PISTONPISTON
-
121500017 PLATE, TOP OUTPLATE, TOP OUT
-
131500015 PLATE, BACK UPPLATE, BACK UP
-
141500607 RING, WIRERING, WIRE
-
151500606 SLEEVE, BYPASSSLEEVE, BYPASS
-
161500603 BODYBODY
-
171500609 BUSHINGBUSHING
-
181500604 COLLARCOLLAR
-
191500600 ASM., BEARINGASM., BEARING
-
207512410 SCREWSCREW
-
215010422 BUSHINGBUSHING
-
227547263 NUT, FLANGENUT, FLANGE
-
237518919 SCREWSCREW
-
247555795 WASHER, WAVEWASHER, WAVE
-
255333905 SLEEVESLEEVE
