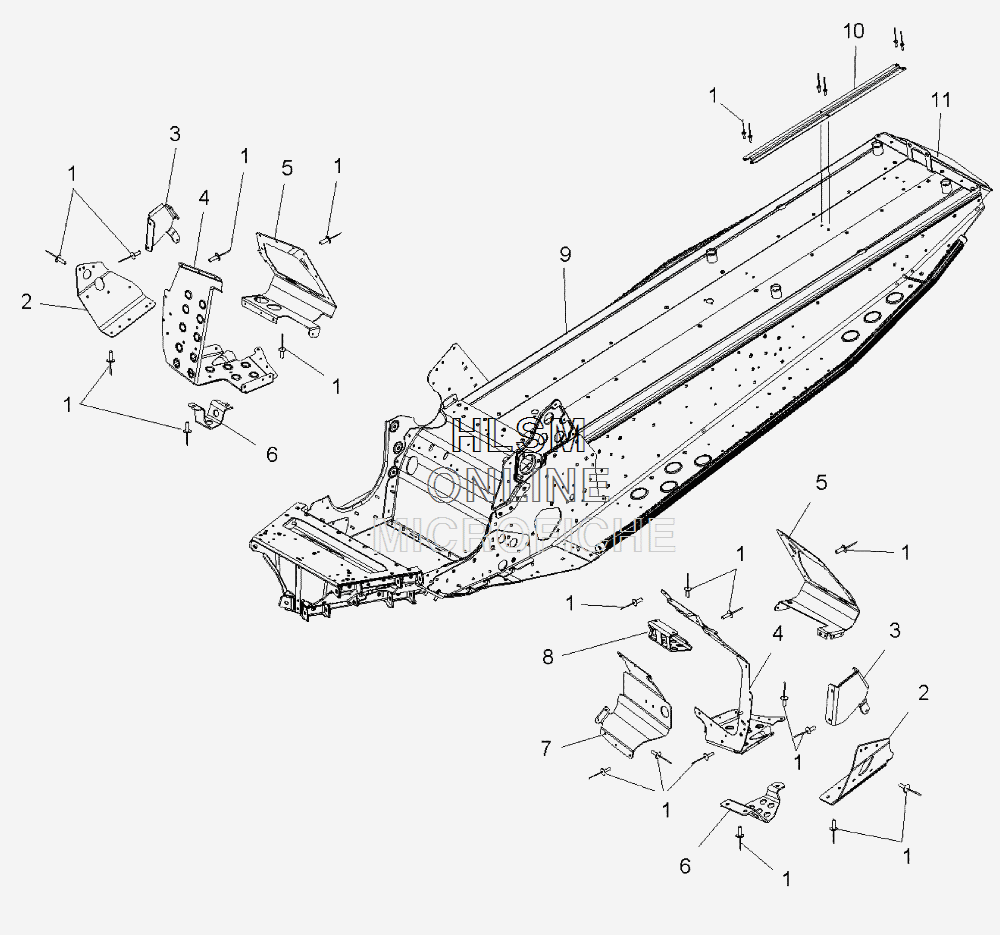

CHASSIS- ASM. AND FOOTRESTS для Polaris TURBO LX (2010) [S10PD7FSL] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET
    RIVET
  • 2
    5248807 SUPPORT, FOOTREST LOWER, LEFT HAND
    SUPPORT, FOOTREST LOWER, LEFT HAND
  • 2
    5248808 SUPPORT, FOOTREST, LOWER, RIGHT HAND
    SUPPORT, FOOTREST, LOWER, RIGHT HAND
  • 3
    5248401 SUPPORT, FOOTREST, BUMPER, LEFT HAND
    SUPPORT, FOOTREST, BUMPER, LEFT HAND
  • 3
    5248402 SUPPORT, FOOTREST BUMPER, RIGHT HAND
    SUPPORT, FOOTREST BUMPER, RIGHT HAND
  • 4
    1015301 ASM., FOOTREST W/STUD, LEFT HAND
    ASM., FOOTREST W/STUD, LEFT HAND
  • 4
    1016004 ASM., FOOTREST W/STUD, RIGHT HAND
    ASM., FOOTREST W/STUD, RIGHT HAND
  • 5
    5250948 TOE CLIP, LEFT HAND
    TOE CLIP, LEFT HAND
  • 5
    5248477 TOE CLIP, RIGHT HAND
    TOE CLIP, RIGHT HAND
  • 6
    5248403 LEG SUPPORT, LEFT HAND
    LEG SUPPORT, LEFT HAND
  • 6
    5248945 LEG SUPPORT, RIGHT HAND
    LEG SUPPORT, RIGHT HAND
  • 7
    5247420 BRACKET, CLUTCH GUARD
    BRACKET, CLUTCH GUARD
  • 8
    5249078 MOUNT, PLENUM
    MOUNT, PLENUM
  • 9
    1016861-309 ASM., CHASSIS, 136, FST, SWITCHBACK (NATURAL)
    ASM., CHASSIS, 136, FST, SWITCHBACK (NATURAL)
  • 10
    5250989 COVER, TAILLIGHT HARNESS
    COVER, TAILLIGHT HARNESS
  • 11
    5250893 CLOSEOFF, TUNNEL, REAR
    CLOSEOFF, TUNNEL, REAR
