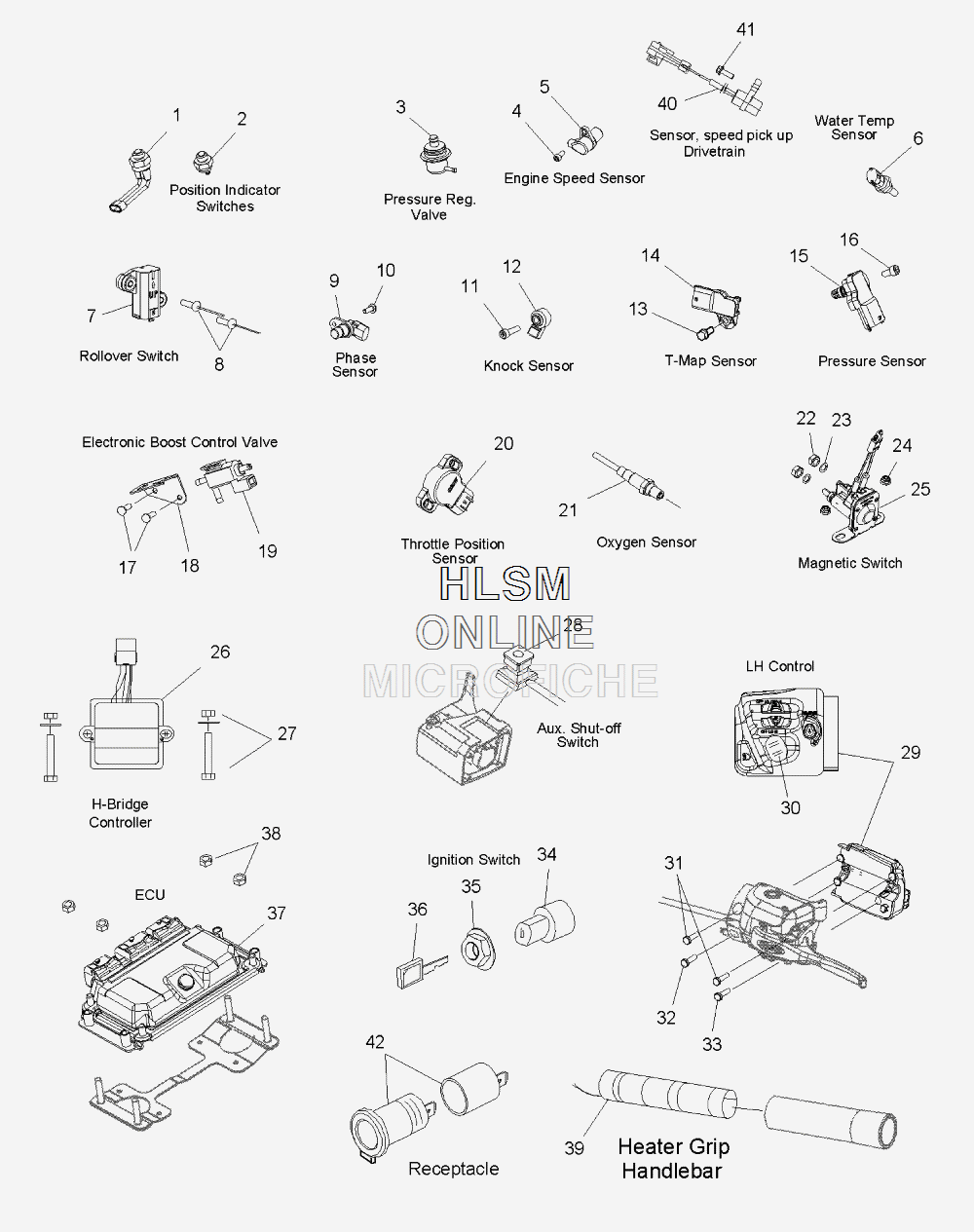

SENSORS- SWITCHES AND COMPONENTS для Polaris TURBO LX (2010) [S10PD7FSL] - 2010 года выпуска
‹-+›
-
№АртикулНазвание
-
14011005 SWITCH, POSITION INDICATORSWITCH, POSITION INDICATOR
-
24011340 SWITCH, POSITIONSWITCH, POSITION
-
30451351 VALVE, PRESSURE REGULATORVALVE, PRESSURE REGULATOR
-
40452957 BOLTBOLT
-
50452956 SENSOR, SPEEDSENSOR, SPEED
-
60451350 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
74011026 SWITCH, ROLLOVERSWITCH, ROLLOVER
-
87661146 RIVETRIVET
-
90451354 SENSOR, PHASESENSOR, PHASE
-
100451998 BOLTBOLT
-
110451565 SCREWSCREW
-
120451509 SENSOR, KNOCKSENSOR, KNOCK
-
137512095 SCREW (PLENUM)SCREW (PLENUM)
-
137517431 SCREW (AIRBOX)SCREW (AIRBOX)
-
142410422 SENSOR, T-MAP (PLENUM)SENSOR, T-MAP (PLENUM)
-
142410605 SENSOR, T-MAP (AIRBOX)SENSOR, T-MAP (AIRBOX)
-
150451352 SENSOR, PRESSURESENSOR, PRESSURE
-
160452957 BOLTBOLT
-
177512026 SCREWSCREW
-
185249291 BRACKET, MOUNT, WASTEGATE VALVEBRACKET, MOUNT, WASTEGATE VALVE
-
194011285 VALVE, ELECTRONIC BOOST CONTROLVALVE, ELECTRONIC BOOST CONTROL
-
203131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
214011040 SENSOR, OXYGENSENSOR, OXYGEN
-
227542105 NUTNUT
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247518287 NUT, NYLON INSERT, FLANGENUT, NYLON INSERT, FLANGE
-
254012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
264011795 CONTROLLER, H-BRIDGECONTROLLER, H-BRIDGE
-
277517263 SCREWSCREW
-
277541925 NUT, NYLOKNUT, NYLOK
-
277555746 WASHERWASHER
-
284011280 SWITCH, AUXILLARY SHUT-OFF/POWERSWITCH, AUXILLARY SHUT-OFF/POWER
-
292010290 ASM., CONTROL, LEFT HANDASM., CONTROL, LEFT HAND
-
305433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
317517441 SCREW, .75SCREW, .75
-
327512078 SCREW, 1.12 (10)SCREW, 1.12 (10)
-
337517566 SCREW, 1.50SCREW, 1.50
-
342200358 KIT, IGNITION SWITCHKIT, IGNITION SWITCH
-
357547035 NUT, IGNITIONNUT, IGNITION
-
365410611 KEY W/CAPKEY W/CAP
-
374012259 ECUECU
-
387542122 NUT, NYLOKNUT, NYLOK
-
392410836 HEATER, GRIP, LO/MED/HI, SHORTHEATER, GRIP, LO/MED/HI, SHORT
-
402411353 SENSOR, SPEED PICK UPSENSOR, SPEED PICK UP
-
417512232 SCREWSCREW
-
424010638 RECEPTACLE, 12V OUTLETRECEPTACLE, 12V OUTLET
