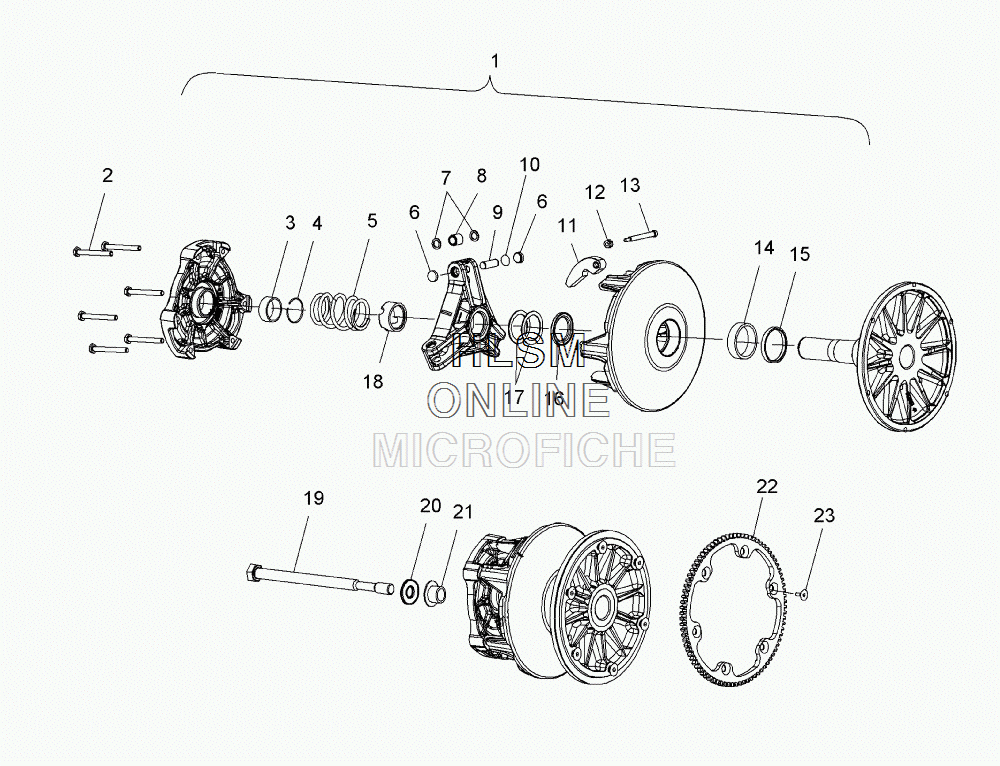

DRIVE TRAIN- CLUTCH- PRIMARY для Polaris 800 SWITCHBACK ES (2010) [S10PR8ESL] - 2010 года выпуска`
-
№АртикулНазвание
-
11322800 ASM., DRIVE CLUTCH, BASIC 224 ES (INCL. 2-4,6-10,14-17)ASM., DRIVE CLUTCH, BASIC 224 ES (INCL. 2-4,6-10,14-17)
-
11322796 ASM., DRIVE CLUTCH, BASIC 223 (INCL. 2-4,6-10,14-17)ASM., DRIVE CLUTCH, BASIC 223 (INCL. 2-4,6-10,14-17)
-
27518349 BOLT, FLANGEBOLT, FLANGE
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57043342 SPRING, CLUTCH, HP, 140/330 (E.S.)SPRING, CLUTCH, HP, 140/330 (E.S.)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
95133079 PIN, ROLLERPIN, ROLLER
-
102200387 KIT, SHIM, DRIVE CLUTCHKIT, SHIM, DRIVE CLUTCH
-
111322427 ASM., WEIGHT/BUSHING, 10-68ASM., WEIGHT/BUSHING, 10-68
-
127541906 NUT, FLEXLOCNUT, FLEXLOC
-
137515105 PIN, HARDENED WEIGHTPIN, HARDENED WEIGHT
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165134018 SPACER, .130SPACER, .130
-
165210754 SPACER, .050SPACER, .050
-
165210753 SPACER, .032SPACER, .032
-
165242981 SPACER, .025SPACER, .025
-
175210752 SPACER, .020SPACER, .020
-
185020425 NUT, JAMNUT, JAM
-
197518412 SCREWSCREW
-
207556003 WASHERWASHER
-
215132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
222870002 KIT, GEAR, STARTER, RING (E.S.) (INCL. 23)KIT, GEAR, STARTER, RING (E.S.) (INCL. 23)
-
237515351 SCREW (E.S.)SCREW (E.S.)
