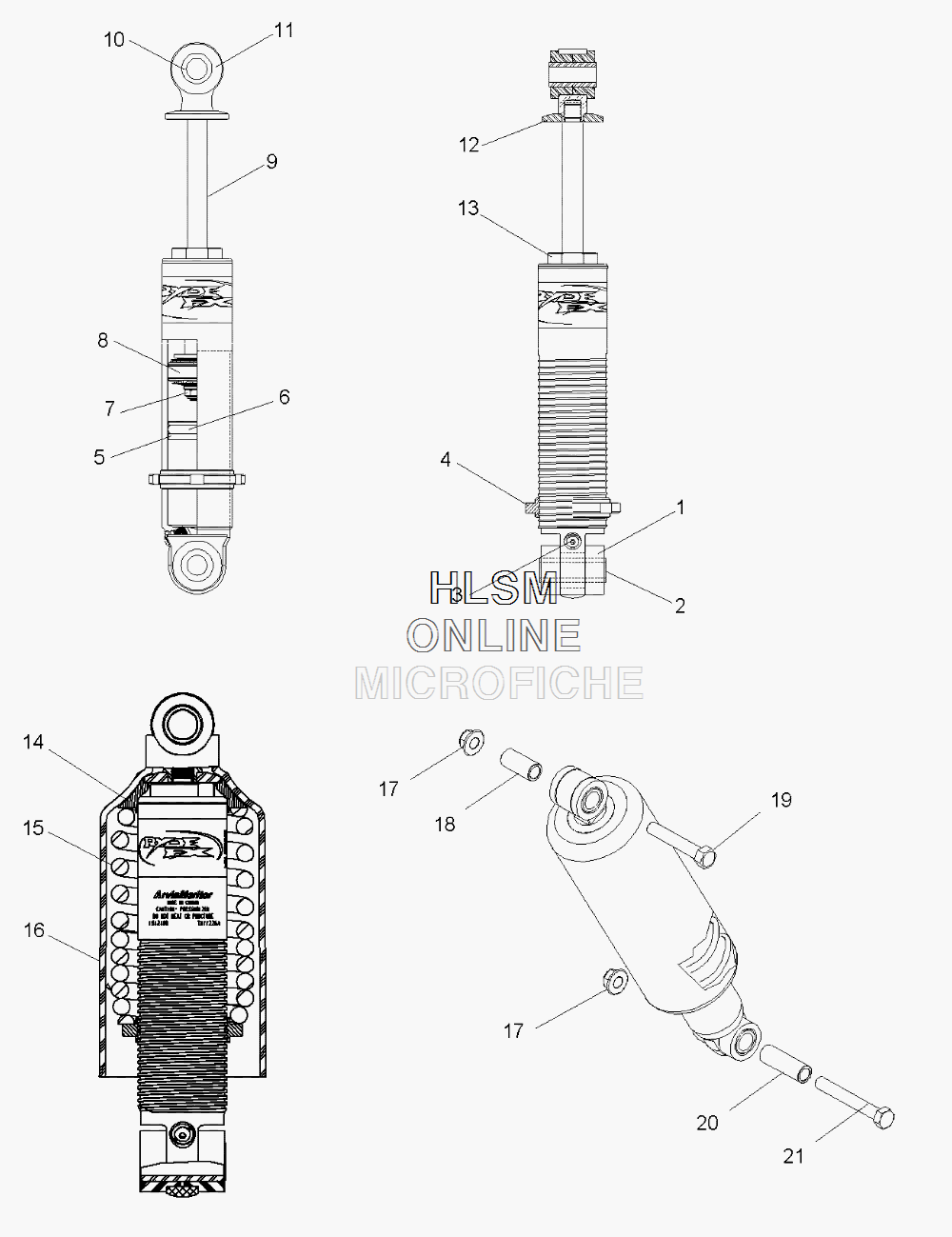

SUSPENSION- SHOCK- FRONT TRACK (7043244) для Polaris 800 SWITCHBACK ES (2010) [S10PR8ESL] - 2010 года выпуска
-
№АртикулНазвание
-
97043244 SHOCK, FRONT TRACKSHOCK, FRONT TRACK
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVESLEEVE
-
31700184 VALVE, PRESSUREVALVE, PRESSURE
-
31700055 SCREW, VALVESCREW, VALVE
-
41700237 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51700233 IFPIFP
-
61700048 O-RINGO-RING
-
71700057 NUTNUT
-
81700238 PISTONPISTON
-
81700236 WEAR BANDWEAR BAND
-
81700077 WASHER, TOP-OUTWASHER, TOP-OUT
-
81700078 WASHER, BACK-UPWASHER, BACK-UP
-
91700026 SHAFTSHAFT
-
101700069 SLEEVESLEEVE
-
111700075 BUSHINGBUSHING
-
121700011 MOUNT, UPPERMOUNT, UPPER
-
131700156 ASM., CYLINDER HEADASM., CYLINDER HEAD
-
145632166 RETAINER, SPRING CONE, CASTRETAINER, SPRING CONE, CAST
-
157043147-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
165437525 SHIELD, SPRINGSHIELD, SPRING
-
177547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
185333905 SLEEVESLEEVE
-
197515415 SCREWSCREW
-
205333906 SLEEVESLEEVE
-
217515417 SCREWSCREW
