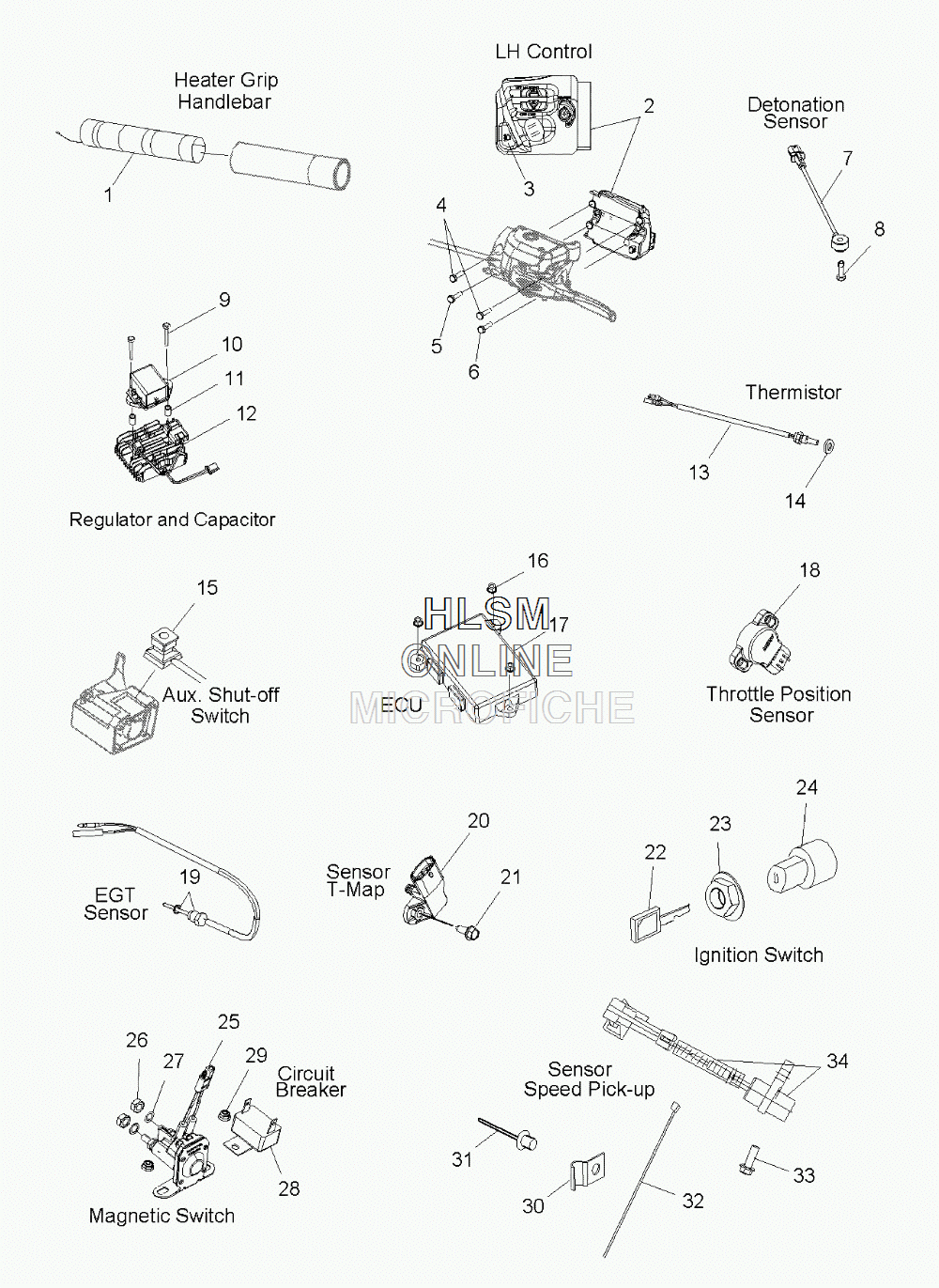

SWITCHES- SENSORS AND COMPONENTS для Polaris 800 SWITCHBACK ES (2010) [S10PR8ESL] - 2010 года выпуска
‹-+›
-
№АртикулНазвание
-
12410777 HEATER, GRIP, LO/MED/HI, SHORTHEATER, GRIP, LO/MED/HI, SHORT
-
22010290 ASM., LEFT HAND CONTROL (INCL. 3)ASM., LEFT HAND CONTROL (INCL. 3)
-
35433291 BUTTON, SWITCH, HI/LO, LEFT HAND CONTROLBUTTON, SWITCH, HI/LO, LEFT HAND CONTROL
-
47517441 SCREW, .75SCREW, .75
-
57512078 SCREW, 1.12SCREW, 1.12
-
67517566 SCREW, 1.50SCREW, 1.50
-
72410369 SENSOR, DETONATIONSENSOR, DETONATION
-
87517262 SCREWSCREW
-
97518157 SCREWSCREW
-
104011114 CAPACITORCAPACITOR
-
115010339 SPACERSPACER
-
124012476 REGULATOR, V7, SDIREGULATOR, V7, SDI
-
134010868 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
147556357 WASHERWASHER
-
154012270 SWITCH, AUXILLARY SHUT-OFFSWITCH, AUXILLARY SHUT-OFF
-
167547274 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
174011518 ECUECU
-
183131591 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
192410983 ASM., EGT SENSOR W/WASHER (INCL. WASHER)ASM., EGT SENSOR W/WASHER (INCL. WASHER)
-
195335351 WASHER, EGT SENSORWASHER, EGT SENSOR
-
202410422 SENSOR, T-MAPSENSOR, T-MAP
-
217512095 SCREWSCREW
-
225410611 CAP W/KEYCAP W/KEY
-
237547035 NUT, IGNITIONNUT, IGNITION
-
242200358 KIT, IGNITION, SWITCHKIT, IGNITION, SWITCH
-
254012358 SWITCH, MAGNETICSWITCH, MAGNETIC
-
267542105 NUT, HEXNUT, HEX
-
277552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
282434009 BREAKER, CIRCUIT, 12 AMPBREAKER, CIRCUIT, 12 AMP
-
297518287 NUTNUT
-
307080963 J-CLIPJ-CLIP
-
317661637 RIVETRIVET
-
327080138 CABLE TIECABLE TIE
-
337512232 SCREWSCREW
-
342410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
348360056-25 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
