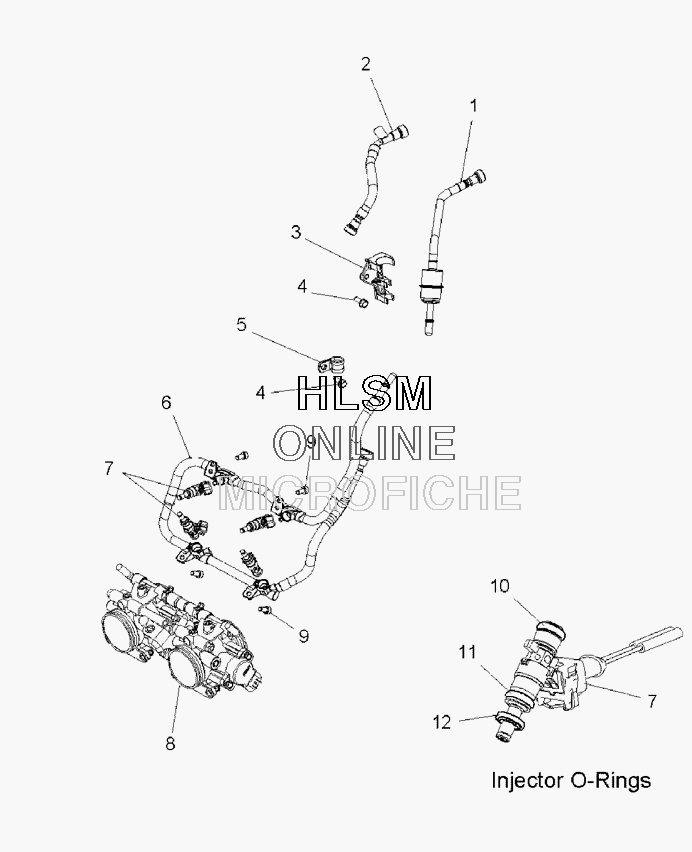

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 700 RMK 155 AND ES - 2009 года выпуска`
-
№АртикулНазвание
-
12520771 ASM-FUEL LINE,W/FILTER,RMK SDIASM-FUEL LINE,W/FILTER,RMK SDI
-
22520770 ASM-FUEL LINE,RETURN,RMK SDIASM-FUEL LINE,RETURN,RMK SDI
-
31203256 ASM-FUEL FILTER RETAINERASM-FUEL FILTER RETAINER
-
35812996 PAD-FUEL FILTERPAD-FUEL FILTER
-
47512095 SCREWSCREW
-
57080573 CLAMP,RUBBER-COATED,.562CLAMP,RUBBER-COATED,.562
-
62520572 ASM-FUEL RAIL 600 SDIASM-FUEL RAIL 600 SDI
-
72203325-015 KIT-INJECTOR 500G/MIN,REDKIT-INJECTOR 500G/MIN,RED
-
72203325-027 KIT-INJECTOR MY07 600 SDI BLUKIT-INJECTOR MY07 600 SDI BLU
-
72203325-053 KIT-INJECTOR 500G/MIN,YLWKIT-INJECTOR 500G/MIN,YLW
-
81203213 ASM-THROTTLE BODYASM-THROTTLE BODY
-
97517431 SCREWSCREW
-
101500198 O-RING (BLACK)O-RING (BLACK)
-
115412891 O-RING, BOSCH, E10076 (BROWN)O-RING, BOSCH, E10076 (BROWN)
-
125436287 BUSHING-RUBBER, INJ ELASTOMER (GREEN)BUSHING-RUBBER, INJ ELASTOMER (GREEN)
