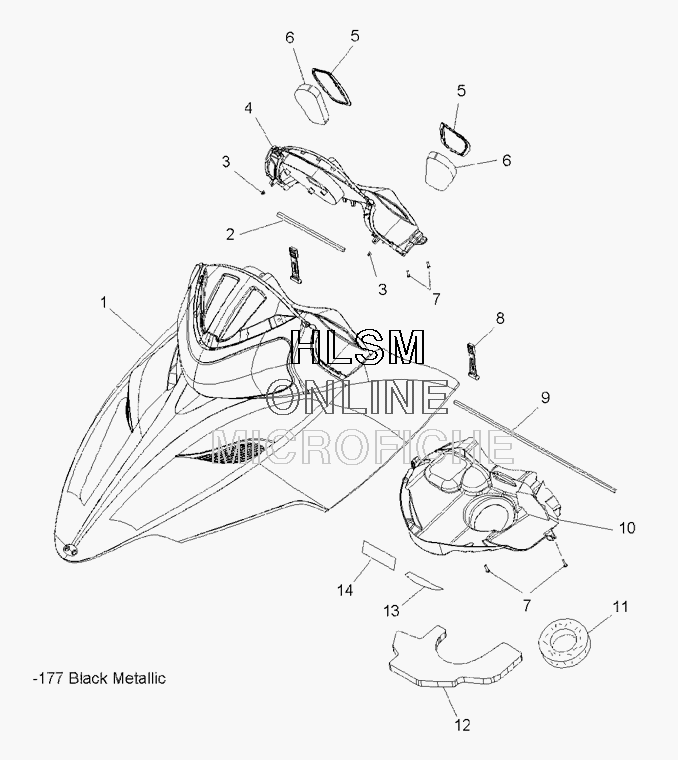

HOOD ASSEMBLY W/ INSERT для Polaris 700 RMK 155 AND ES - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2633729-177 ASM-HOOD,MTN SDI SVC, BLACK [INCL FOAM/FOIL]
    ASM-HOOD,MTN SDI SVC, BLACK [INCL FOAM/FOIL]
  • 2
    5521697-350 SEAL-BULB,.375,350CM
    SEAL-BULB,.375,350CM
  • 3
    7670112 NUT-#10,U-TYPE,A(.065-.087)
    NUT-#10,U-TYPE,A(.065-.087)
  • 4
    5437049-070 POD-INSTRUMENT, BLACK
    POD-INSTRUMENT, BLACK
  • 5
    5437372 VENT-INTAKE, RIGHT HAND
    VENT-INTAKE, RIGHT HAND
  • 5
    5437371 VENT-INTAKE, LEFT HAND
    VENT-INTAKE, LEFT HAND
  • 6
    5813248 FOAM-FILTER,INLET
    FOAM-FILTER,INLET
  • 7
    7518577 SCR-10X 5/8 TX PN PLST-243
    SCR-10X 5/8 TX PN PLST-243
  • 8
    5433150 STRAP
    STRAP
  • 9
    5812782 FOAM-SEAL 35''
    FOAM-SEAL 35''
  • 10
    2633309 ASM-HEADLIGHT ACCESS COVER [INCL 9,11-14]
    ASM-HEADLIGHT ACCESS COVER [INCL 9,11-14]
  • 11
    5813186 FOAM-AIRBOX,CHIMNEY,W/PSA
    FOAM-AIRBOX,CHIMNEY,W/PSA
  • 12
    5812937 FOIL-HDLIGHT ACCESS COVER #1
    FOIL-HDLIGHT ACCESS COVER #1
  • 13
    5812938 FOIL-HDLIGHT ACCESS COVER,#2
    FOIL-HDLIGHT ACCESS COVER,#2
  • 14
    5813094 FOAM-HEADLIGHT ACCESS COVER
    FOAM-HEADLIGHT ACCESS COVER
