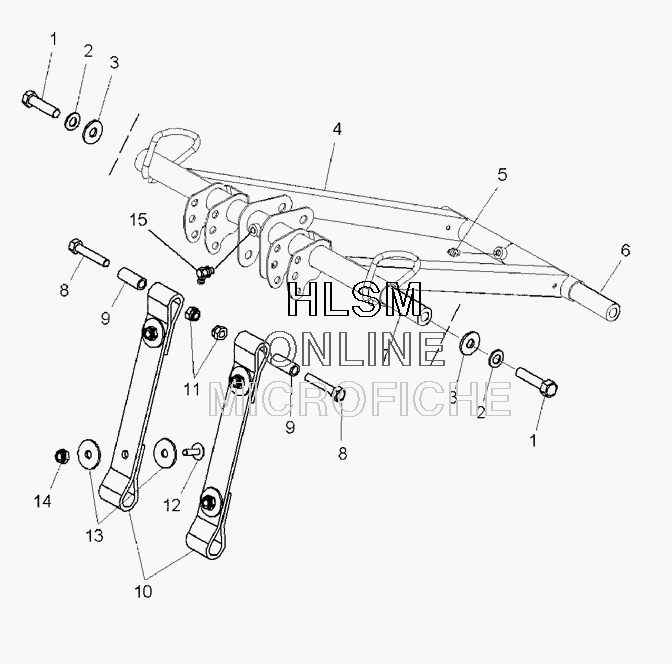

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 RMK 155 AND ES - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7518005 SCR-3/8-16X1.50-HX/CP-GR5-P80Y
    SCR-3/8-16X1.50-HX/CP-GR5-P80Y
  • 2
    7552603 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 3
    7555893 WASHER,FLAT
    WASHER,FLAT
  • 4
    1542471-329 WELD-FTA,RMK,ECOAT
    WELD-FTA,RMK,ECOAT
  • 5
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    5334026 SHAFT-.740X.390X8.490,ANODIZE
    SHAFT-.740X.390X8.490,ANODIZE
  • 7
    5133987 SHAFT-.75X15.404,2024
    SHAFT-.75X15.404,2024
  • 8
    7512329 BOLT
    BOLT
  • 9
    5333522 BUSHING
    BUSHING
  • 10
    5412556 STRAP-LIMITER
    STRAP-LIMITER
  • 11
    7542324 NUT,NYLOK
    NUT,NYLOK
  • 12
    7517313 SCREW
    SCREW
  • 13
    7556175 WASHER-.325X1.20X.090,FL-Y
    WASHER-.325X1.20X.090,FL-Y
  • 14
    7542344 NUT,NYLOK
    NUT,NYLOK
  • 15
    7080510 FITTING, ZERK,90 DEGREE
    FITTING, ZERK,90 DEGREE
