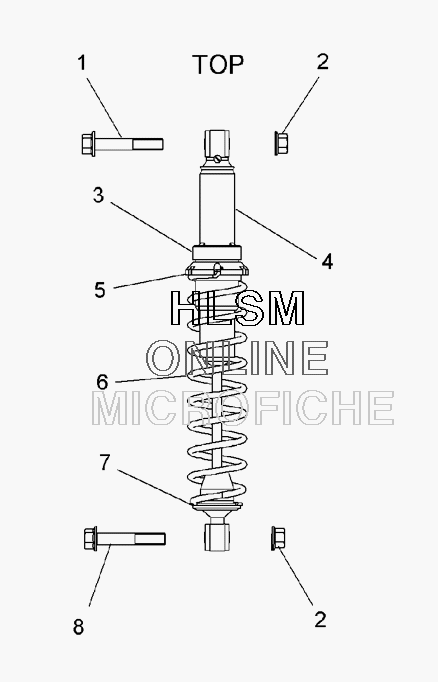

SUSPENSION - IFS SHOCK для Polaris 700 RMK 155 AND ES - 2009 года выпуска`
-
№АртикулНазвание
-
17518554 SCR-3/8-16X2.25 HX FLG GR5 YSCR-3/8-16X2.25 HX FLG GR5 Y
-
27547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
37043222 SHOCK-IFS,ARVIN TWIN TUBESHOCK-IFS,ARVIN TWIN TUBE
-
41500063 RETAINER,SPRING,BODY,THREADEDRETAINER,SPRING,BODY,THREADED
-
55431734 RING,SPRING PRELOAD ADJ.RING,SPRING PRELOAD ADJ.
-
67041551-133 SPRING-COMP,IFS,10.75/100#/WHTSPRING-COMP,IFS,10.75/100#/WHT
-
75630580 RETAINER,SPRING,SLOTTEDRETAINER,SPRING,SLOTTED
-
87518278 SCR-3/8-16X2 FLG HX GR5 ZSCR-3/8-16X2 FLG HX GR5 Z
