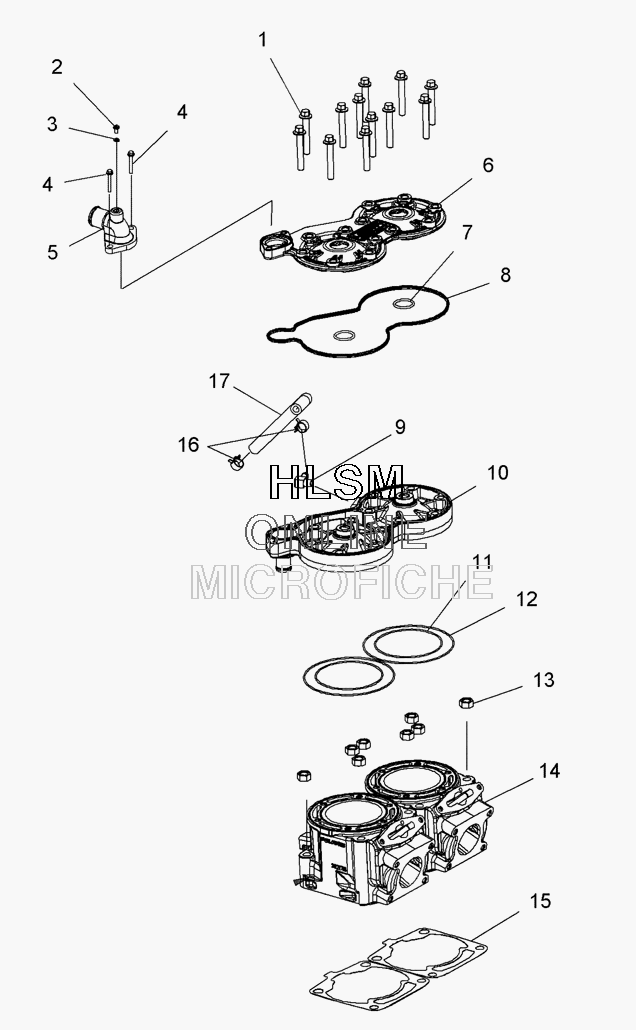

CYLINDER ASSEMBLY для Polaris 700 RMK 155 AND ES - 2009 года выпуска`
-
№АртикулНазвание
-
17517533 SCREW,M8X1.25X55SCREW,M8X1.25X55
-
27517679 SCREW,M6X1.0 X 13,SL/HX/FL-ZSCREW,M6X1.0 X 13,SL/HX/FL-Z
-
37555998 WASHER,FLATWASHER,FLAT
-
47516827 SCREWSCREW
-
55136512 COVER-THERMOSTAT M6 BLEED MACHCOVER-THERMOSTAT M6 BLEED MACH
-
65631822-329 CVR-HEAD,SDI, BLACKCVR-HEAD,SDI, BLACK
-
75411411 O-RINGO-RING
-
85413036 SEAL-GLAND, HEADSEAL-GLAND, HEAD
-
97052157 FITTING-5/16''HOSE BARB,1/8-90°FITTING-5/16''HOSE BARB,1/8-90°
-
103021768 HEAD-CYL 81 TWIN SDIHEAD-CYL 81 TWIN SDI
-
115410932 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUTNUT
-
143021866 CYLINDER-81MM SDI W/DECOMPCYLINDER-81MM SDI W/DECOMP
-
1558133122 GASKETGASKET
-
167081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
175413080 HOSE-COOLANT,THROTTLE BODYHOSE-COOLANT,THROTTLE BODY
