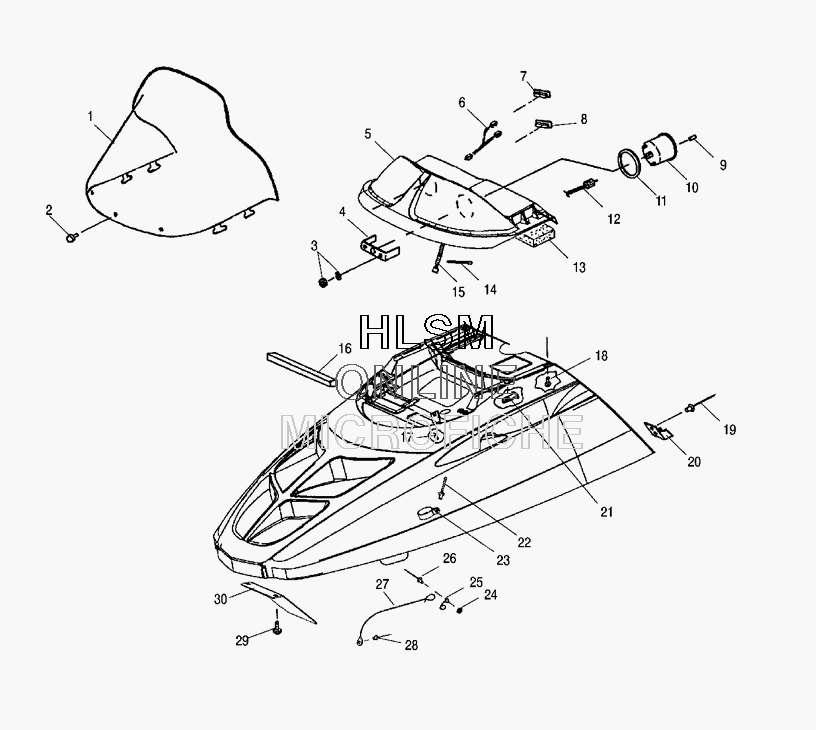

HOOD ASSEMBLY W/ WINDSHIELD AND INSTRUMENT HOUSING для Polaris WIDETRAK LX AND EURO (S08SU4BS) - 2008 года выпуска`
-
№АртикулНазвание
-
15433168 WINDSHIELD, FLR, 20'' CLEARWINDSHIELD, FLR, 20'' CLEAR
-
27621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
37546703 NUT, NYLOKNUT, NYLOK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRKT, TACH/SPEEDO, 5''BRKT, TACH/SPEEDO, 5''
-
52632596 ASM-INSTRUMENT HOUSING (INCL. WARNING DECALS)ASM-INSTRUMENT HOUSING (INCL. WARNING DECALS)
-
62460877 HARNESS-JUMPER TEMP/REVHARNESS-JUMPER TEMP/REV
-
74040011 INDICATOR'TEMP'WARN.INDICATOR'TEMP'WARN.
-
84040019 INDICATOR'REVERSE'WARN.INDICATOR'REVERSE'WARN.
-
93280186 KNOB, TRIP ODOMETER, LEFT HAND THD.KNOB, TRIP ODOMETER, LEFT HAND THD.
-
103280407 ASM-SPEEDO, 5'', 120 MPH, WHT/BKASM-SPEEDO, 5'', 120 MPH, WHT/BK
-
104030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
113280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
127081499 ASM-SPEEDO CABLE W/FOIL (INCL. FOIL)ASM-SPEEDO CABLE W/FOIL (INCL. FOIL)
-
125811763 TAPE, FOIL1.5''X12''3M1430/5.5MILTAPE, FOIL1.5''X12''3M1430/5.5MIL
-
135811625 FOAM, PREFILTERFOAM, PREFILTER
-
147080138 CABLE TIECABLE TIE
-
152460909 HARNESS-HEADLIGHTHARNESS-HEADLIGHT
-
155811765 FOIL, 4X5 3M#1430PSA5.5MILFOIL, 4X5 3M#1430PSA5.5MIL
-
165811687 FOAM-HEADLIGHT SEAL W/PSAFOAM-HEADLIGHT SEAL W/PSA
-
177080886 CLIP, ROSEBUD, GRAYCLIP, ROSEBUD, GRAY
-
187517441 SCREW, .75SCREW, .75
-
197621334 RIVETRIVET
-
205430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
215410970 RETAINER, WINDSHIELD,RETAINER, WINDSHIELD,
-
227621485 RIVETRIVET
-
237080833 CLAMP-1''UMPCO#AN735016CLAMP-1''UMPCO#AN735016
-
247555904 WASHERWASHER
-
255242893 CLIP, PIGTAILCLIP, PIGTAIL
-
267661084 RIVET, 3/16(.251-.375)RIVET, 3/16(.251-.375)
-
277080764 CABLE, HOOD, HYB.CABLE, HOOD, HYB.
-
287621402 RIVET, POPRIVET, POP
-
297512068 SCREWSCREW
-
305243393 DEFLECTOR-AIRDEFLECTOR-AIR
