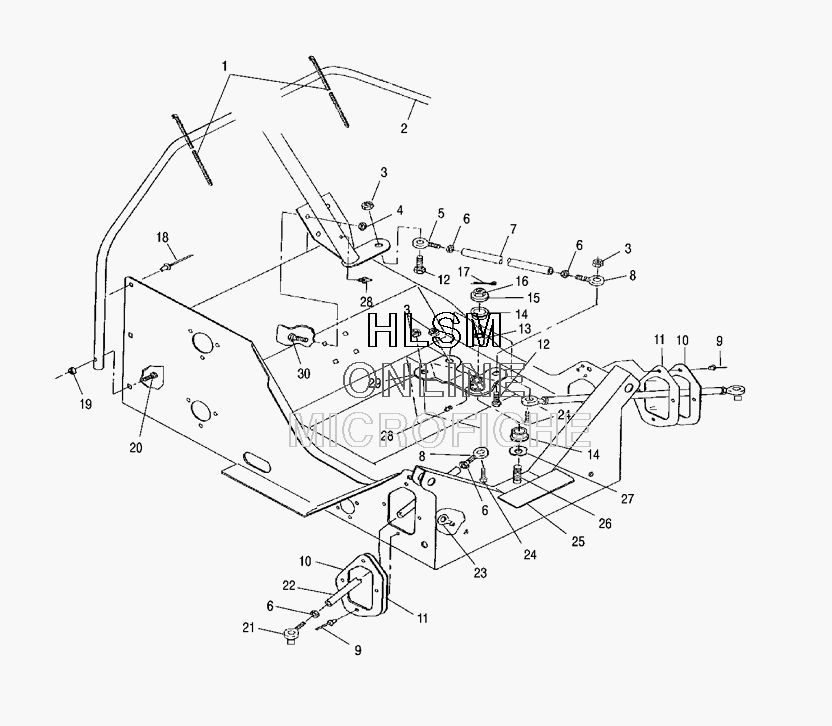

STEERING ASSEMBLY для Polaris WIDETRAK LX AND EURO (S08SU4BS) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE-RELEASABLE, 5 1/2''
    CABLE TIE-RELEASABLE, 5 1/2''
  • 2
    1012729-067 WELD-STEER HOOP, BLACK
    WELD-STEER HOOP, BLACK
  • 3
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 4
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 5
    7060167 ROD END, RIGHT HAND
    ROD END, RIGHT HAND
  • 6
    7542424 NUT, LEFT HAND
    NUT, LEFT HAND
  • 6
    7542401 NUT, HEX, RIGHT HAND
    NUT, HEX, RIGHT HAND
  • 7
    5334113-067 ROD-DRAG LINK, STEEL, BLACK
    ROD-DRAG LINK, STEEL, BLACK
  • 8
    7060166 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 9
    7621323 POP RIVET
    POP RIVET
  • 10
    5222942-067 PLATE, BOOTSEAL, BLACK.
    PLATE, BOOTSEAL, BLACK.
  • 11
    5410761 BOOT, TIEROD
    BOOT, TIEROD
  • 12
    7515528 BOLT
    BOLT
  • 13
    5010463 BUSHING
    BUSHING
  • 14
    3563907 BUSHING
    BUSHING
  • 15
    7555721 WASHER
    WASHER
  • 16
    7547065 NUT-1/2-20, NYLOK, Y
    NUT-1/2-20, NYLOK, Y
  • 17
    7661203 PIN, COTTER
    PIN, COTTER
  • 18
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 19
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 20
    7512275 BOLT-CARRIAGE
    BOLT-CARRIAGE
  • 21
    7060174 ROD-END, RIGHT HAND, 3/8, HI-ANGLE
    ROD-END, RIGHT HAND, 3/8, HI-ANGLE
  • 22
    5020878 ROD-TIE
    ROD-TIE
  • 23
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 24
    7512410 BOLT
    BOLT
  • 25
    5630563 BLOCK, STRG, (CAST)
    BLOCK, STRG, (CAST)
  • 26
    7512682 BOLT
    BOLT
  • 27
    7555735 WASHER, WAVE
    WASHER, WAVE
  • 28
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
  • 29
    1822217 STRG.ASM, CTRIGHT HAND (INCL. 14, 28)
    STRG.ASM, CTRIGHT HAND (INCL. 14, 28)
  • 30
    7517428 BOLT
    BOLT
