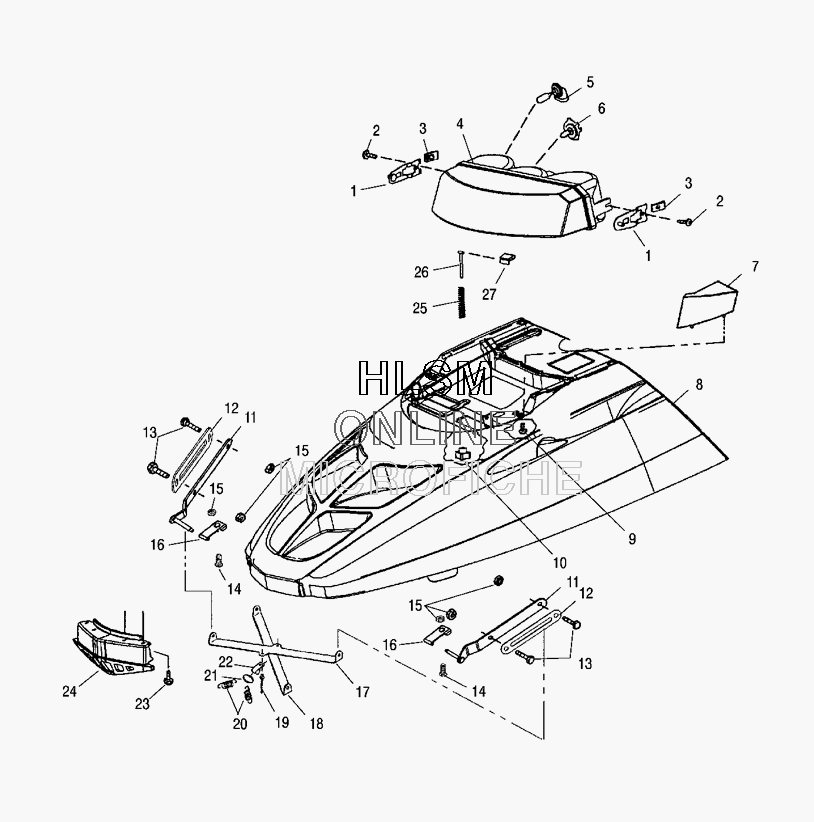

HOOD ASSEMBLY W/ LATCH AND HEADLIGHT для Polaris WIDETRAK LX AND EURO (S08SU4BS) - 2008 года выпуска`
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD, H/LMOUNT, WELD, H/L
-
27515140 SCREWSCREW
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 ASM-HEADLAMP, THREE BULB (INCL. BULBS)ASM-HEADLAMP, THREE BULB (INCL. BULBS)
-
54010253 BULB-HEADLIGHT, 50 WATTBULB-HEADLIGHT, 50 WATT
-
62870448 BULB, QUARTZ.H/L H4, 60/55WBULB, QUARTZ.H/L H4, 60/55W
-
75431855 LENS, LEFT HAND, CLRIGHT HANDREFLECTORLENS, LEFT HAND, CLRIGHT HANDREFLECTOR
-
75431856 LENS, RIGHT HAND, CLRIGHT HANDREFLECTORLENS, RIGHT HAND, CLRIGHT HANDREFLECTOR
-
82633394-177 ASM-HOOD, WTRAK, SVC, PC BLACK (INCL. FOAM/FOIL)ASM-HOOD, WTRAK, SVC, PC BLACK (INCL. FOAM/FOIL)
-
97511953 SCREWSCREW
-
107080887 KNOB, HEADLIGHT, ADJUST, LOCKINGBKNOB, HEADLIGHT, ADJUST, LOCKINGB
-
111012750 HINGE, LEFT HAND, UPPERHINGE, LEFT HAND, UPPER
-
111012751 HINGE, RIGHT HAND, UPPERHINGE, RIGHT HAND, UPPER
-
125242948 PLATE-BOLTPLATE-BOLT
-
137515184 BOLTBOLT
-
147512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
157542122 NUT-NYLOKNUT-NYLOK
-
165244395 PLATE, HINGE, LOWERPLATE, HINGE, LOWER
-
175242945 BRACE, HOOD, UPPERBRACE, HOOD, UPPER
-
185242946 BRACE, HOOD, LOWERBRACE, HOOD, LOWER
-
197661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
207041732 SPRING-EXT.SPRING-EXT.
-
217041760 SPRING-ATTACHMENT RINGSPRING-ATTACHMENT RING
-
227080372 CLAMP, RETAINERCLAMP, RETAINER
-
237517441 SCREW, .75SCREW, .75
-
245432931 SCREEN, FRONT, HYBSCREEN, FRONT, HYB
-
257041308 SPRING, H/LEFT HANDADJ.SPRING, H/LEFT HANDADJ.
-
267517746 BOLT, TEE ADJUSTER, 2.25BOLT, TEE ADJUSTER, 2.25
-
277670040 CLIP-U TYPECLIP-U TYPE
