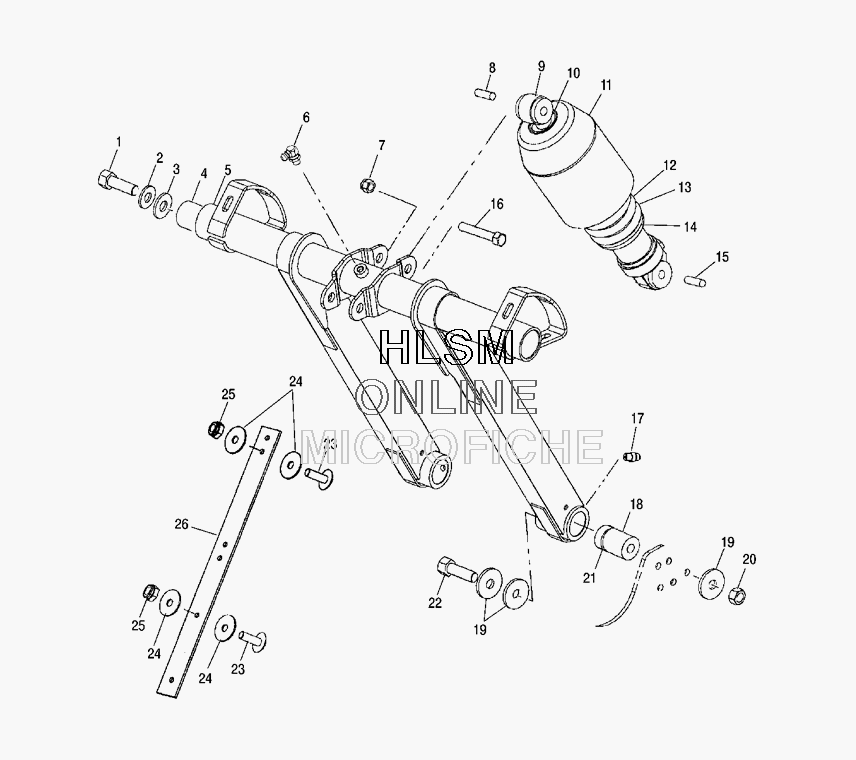

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris SUPERSPORT AND EURO (S08NP5BS/BE) - 2008 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT, UPPERSHAFT, UPPER
-
51541779-067 WELD-ARM, FRONT TORQUE, BLACKWELD-ARM, FRONT TORQUE, BLACK
-
67080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
97041939 SHOCK-FRONT TRACKSHOCK-FRONT TRACK
-
105630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
115430671 SHIELD-SPRINGSHIELD-SPRING
-
127041253-067 SPRING, COMPRESSION, BLACKSPRING, COMPRESSION, BLACK
-
135245067 RETAINER-SPRING, GAB, PLATEDRETAINER-SPRING, GAB, PLATED
-
145210953 RETAINER, SPRINGRETAINER, SPRING
-
155333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
167515415 SCREWSCREW
-
177080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
185133308 SHAFT-.453X.999X1.60, ORINGSHAFT-.453X.999X1.60, ORING
-
197556156 WASHER, .483X1.37X.083WASHER, .483X1.37X.083
-
207547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
215412022 O-RING-0.739X0.879X0.070O-RING-0.739X0.879X0.070
-
227512597 BOLT-7/16-20X2.75, HXCAP, GR5, YBOLT-7/16-20X2.75, HXCAP, GR5, Y
-
237517313 SCREWSCREW
-
247556175 WASHER-.325X1.20X.090, FL-YWASHER-.325X1.20X.090, FL-Y
-
257542344 NUT, NYLOKNUT, NYLOK
-
265412140 STRAP-LIM, FRTSTRAP-LIM, FRT
