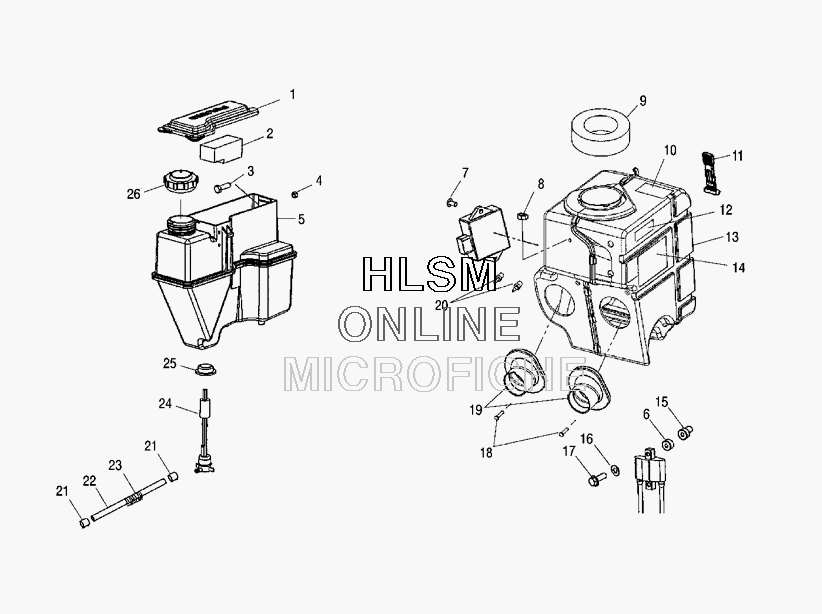

OIL TANK W/ AIR BOX ASSEMBLY для Polaris SUPERSPORT AND EURO (S08NP5BS/BE) - 2008 года выпуска
-
№АртикулНазвание
-
15434089 COVER-TOOL BOXCOVER-TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT-NYLOKNUT-NYLOK
-
51253453 WELD-OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 24)WELD-OIL BOTTLE/TOOL BOX W/MNT (INCL. 1, 24)
-
51261199 WELD-OIL BOTTLE/TOOL BOX W/MNTWELD-OIL BOTTLE/TOOL BOX W/MNT
-
67555932 WASHER, NYLONWASHER, NYLON
-
77512095 SCREWSCREW
-
87670102 CLIPCLIP
-
95811882 FOAMFOAM
-
107075351 DECALDECAL
-
115433150 STRAPSTRAP
-
127073426 DECAL, GREASINGDECAL, GREASING
-
131203570 ASM-AIR SILENCER, 550 W/ERASM-AIR SILENCER, 550 W/ER
-
147174701 PADPAD
-
157547103 NUT, WELLNUT, WELL
-
167552604 WASHERWASHER
-
177517610 SCREW [INCL.19 & DECALS]SCREW [INCL.19 & DECALS]
-
187511862 SCREWSCREW
-
195412189 BOOT-CARBURETORBOOT-CARBURETOR
-
207052127 FITTING, HOSEFITTING, HOSE
-
217080307 CLAMP, HOSECLAMP, HOSE
-
228450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
234010051-30 CONDUIT, CONVOLUTED(30 CM)CONDUIT, CONVOLUTED(30 CM)
-
244010660 SENDER-OIL, W/ FRONT TERMINALSSENDER-OIL, W/ FRONT TERMINALS
-
257052305 GROMMET-OIL SENDERGROMMET-OIL SENDER
-
261240094 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
