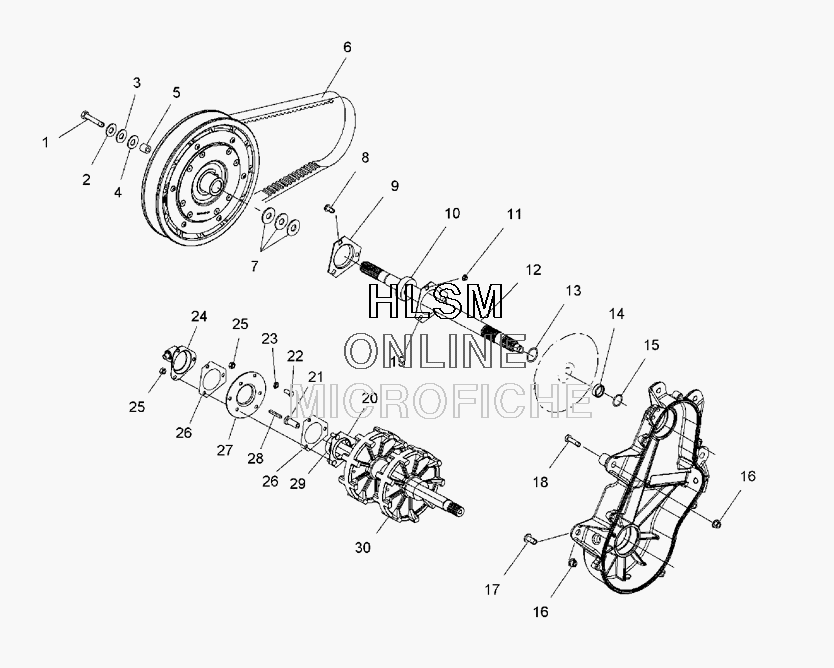

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris IQ SHIFT AND EURO (S08PB6FS/FE) - 2008 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55135611 SPACER-INPUT SHAFT, .875 OD ALSPACER-INPUT SHAFT, .875 OD AL
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
95247680 FLANGETTE-.100 OFFSETFLANGETTE-.100 OFFSET
-
103514617 BEARING-1XM52XM15, SPHBEARING-1XM52XM15, SPH
-
117542343 NUT, FLANGENUT, FLANGE
-
121332336 JACKSHAFT ASM, 15/21 SPL W/BRG (INCL. 10, 13)JACKSHAFT ASM, 15/21 SPL W/BRG (INCL. 10, 13)
-
137710422 RING, RETAININGRING, RETAINING
-
145135231 SLEEVE-SEAL, 45 DEGREE CHAMFERSLEEVE-SEAL, 45 DEGREE CHAMFER
-
155410613 O RINGO RING
-
167547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
177518494 BOLT-CARR 3/8-16X1.00 GR5-YBOLT-CARR 3/8-16X1.00 GR5-Y
-
187518268 BOLT-CARRIAGE, 3/8-16X1.75-YBOLT-CARRIAGE, 3/8-16X1.75-Y
-
195222751 FLANGETTEFLANGETTE
-
201014299 ASM-FLANGETTE W/SCREWSASM-FLANGETTE W/SCREWS
-
213280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
227518049 BOLT-CARR 5/16-18X5/8 GR5-YBOLT-CARR 5/16-18X5/8 GR5-Y
-
237547030 PALNUTPALNUT
-
243280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
257542324 NUT, NYLOKNUT, NYLOK
-
265811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
275249151 FLANGETTE 52MM SEAT 72MM FFFLANGETTE 52MM SEAT 72MM FF
-
283280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
293514448 BEARING-25MM SPH OD LUBEBEARING-25MM SPH OD LUBE
-
301590432 ASM., DRIVESHAFTASM., DRIVESHAFT
