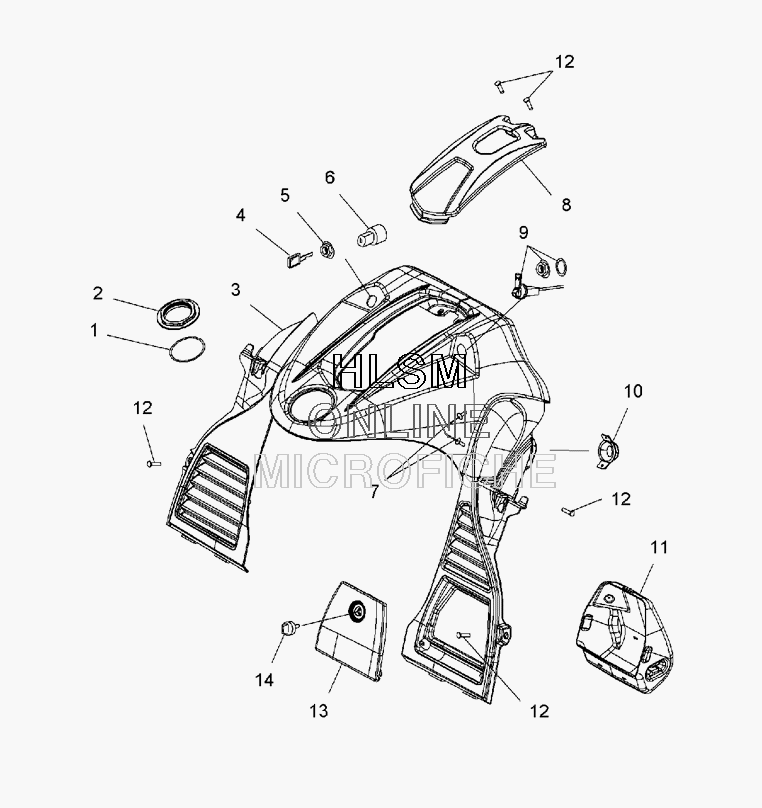

CONSOLE для Polaris IQ SHIFT AND EURO (S08PB6FS/FE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5411174 O-RING
    O-RING
  • 2
    5435156 NUT-FILLER NECK
    NUT-FILLER NECK
  • 3
    2633498-070 ASM-CONSOLE, SDI W/ CHOKE, BLACK
    ASM-CONSOLE, SDI W/ CHOKE, BLACK
  • 4
    5410611 KEY (SEE NOTE)
    KEY (SEE NOTE)
  • 5
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 6
    2200358 KIT, IGN.SWITCH
    KIT, IGN.SWITCH
  • 7
    7621323 POP RIVET
    POP RIVET
  • 8
    5436664 COVER-CONSOLE, FXD SP
    COVER-CONSOLE, FXD SP
  • 9
    7081409 CABLE-CHOKE, RACK, IQ, CR
    CABLE-CHOKE, RACK, IQ, CR
  • 9
    2201439 KIT, CHOKE LEVER REPAIR
    KIT, CHOKE LEVER REPAIR
  • 9
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 9
    7556374 WASHER, INTERLOCK
    WASHER, INTERLOCK
  • 10
    5248563 BRKT-ROPE GUIDE
    BRKT-ROPE GUIDE
  • 11
    5435944 COMPARTMENT-STORAGE, RIGHT HAND
    COMPARTMENT-STORAGE, RIGHT HAND
  • 12
    7517916 SCR-1/4-20X3/4-TR/TX/TAP-M
    SCR-1/4-20X3/4-TR/TX/TAP-M
  • 13
    2632858-070 DOOR ASM, CONSOLE, RIGHT HAND, BLACK
    DOOR ASM, CONSOLE, RIGHT HAND, BLACK
  • 14
    5435207-070 KEY-BLACK
    KEY-BLACK
