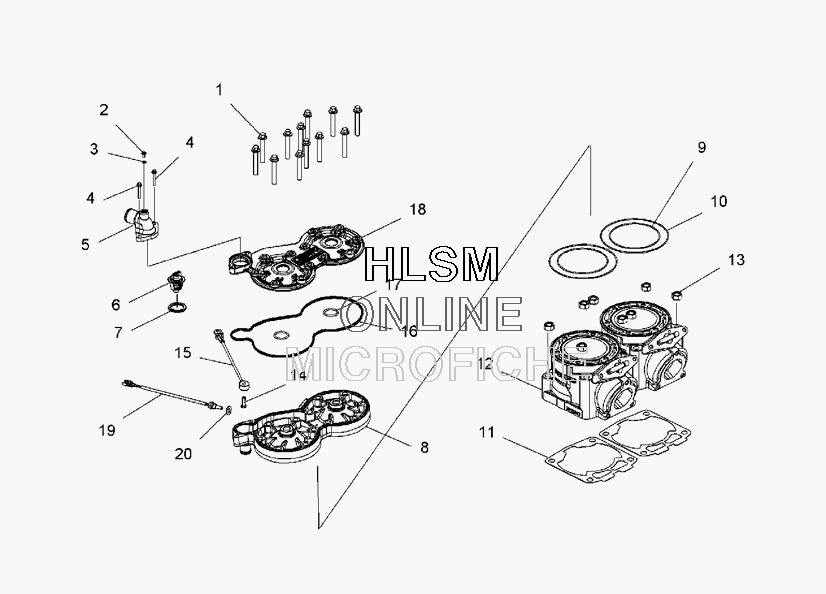

CYLINDER ASSEMBLY для Polaris IQ SHIFT AND EURO (S08PB6FS/FE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7517533 SCREW, M8X1.25X55
    SCREW, M8X1.25X55
  • 2
    7517679 SCREW, M6X1.0 X 13, SL/HX/FL-Z
    SCREW, M6X1.0 X 13, SL/HX/FL-Z
  • 3
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 4
    7516827 SCREW
    SCREW
  • 5
    5134756 COVER-THERMOSTAT M6 BLEED MACH
    COVER-THERMOSTAT M6 BLEED MACH
  • 6
    7052433 THERMO-120°F W/O BYPASS HD
    THERMO-120°F W/O BYPASS HD
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    3021790 HEAD-CYL, 77.25 TWIN SDI MACH
    HEAD-CYL, 77.25 TWIN SDI MACH
  • 9
    5410932 O-RING
    O-RING
  • 10
    5411359 O-RING
    O-RING
  • 11
    5812494 GASKET-CYLINDER BASE, WEB
    GASKET-CYLINDER BASE, WEB
  • 12
    3021542 CYLINDER-77.25
    CYLINDER-77.25
  • 13
    7547013 NUT
    NUT
  • 14
    7517262 SCR-M8X1.25X30, HX/FL-YD
    SCR-M8X1.25X30, HX/FL-YD
  • 15
    2410369 SENSOR-DETONATION BOSCH
    SENSOR-DETONATION BOSCH
  • 15
    7080138 CABLE TIE
    CABLE TIE
  • 16
    5413036 SEAL-GLAND, HEAD
    SEAL-GLAND, HEAD
  • 17
    5411411 O-RING
    O-RING
  • 18
    5631822-329 CVR-HEAD, SDI, BLACK
    CVR-HEAD, SDI, BLACK
  • 19
    4011695 SENSOR-THERMISTOR
    SENSOR-THERMISTOR
  • 20
    7556357 WASHER-18X12X2.5MM-COPPER
    WASHER-18X12X2.5MM-COPPER
