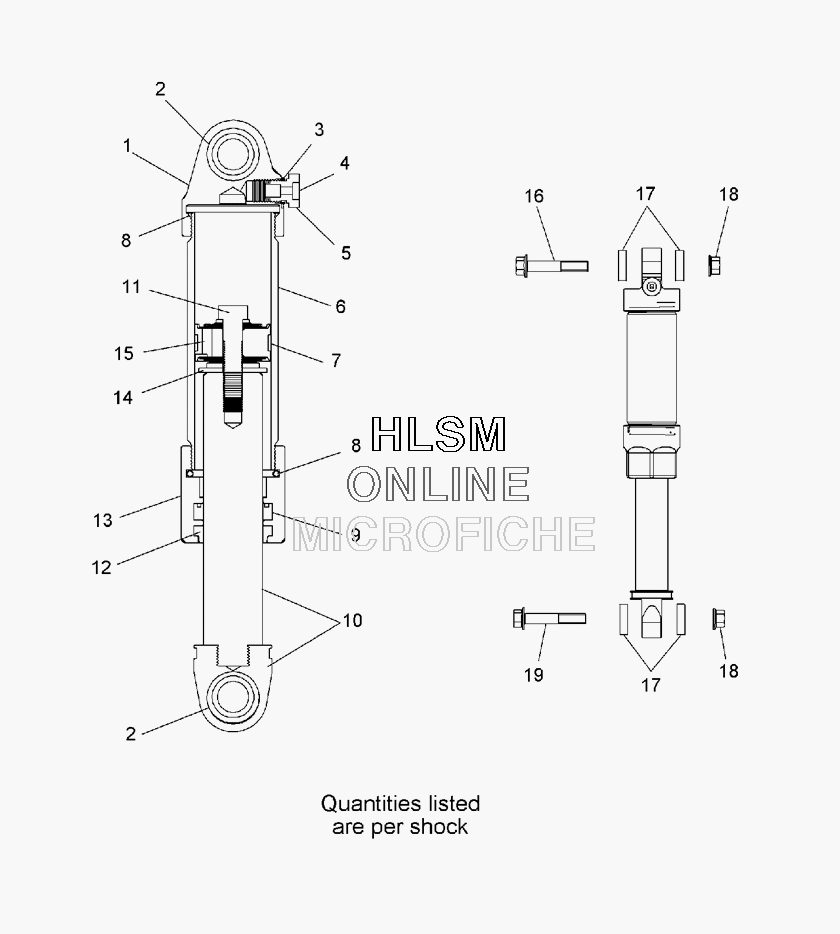

SUSPENSION - SHOCK IFS для Polaris 800 DRAGON RMK 155 SPECIAL LATE PROD. (S08PG8ES) - 2008 года выпуска

  • №
    Артикул
    Название
  • 7043364 SHOCK-IFS, WEE AIR
    SHOCK-IFS, WEE AIR
  • 1800320 ASM. SEAL REBUILD (540323) (INCL. 8, 9, 12)
    ASM. SEAL REBUILD (540323) (INCL. 8, 9, 12)
  • 1
    1800273 BODY LOOP (200147)
    BODY LOOP (200147)
  • 2
    1800319 ASM., EYELET BRG/RET. RING
    ASM., EYELET BRG/RET. RING
  • 3
    1800108 O-RING
    O-RING
  • 4
    1800109 SCREW-BUTTON HEAD 8/32
    SCREW-BUTTON HEAD 8/32
  • 5
    1800107 VALVE-NEEDLE
    VALVE-NEEDLE
  • 6
    1800285 BODY (500165)
    BODY (500165)
  • 7
    1800029 WEAR BAND, TEFLON (100311)
    WEAR BAND, TEFLON (100311)
  • 8
    1800030 O-RING BODY
    O-RING BODY
  • 9
    1800278 U-CUP SEAL (500323)
    U-CUP SEAL (500323)
  • 10
    1800317 ASM., SHAFT/EYELET (520171)
    ASM., SHAFT/EYELET (520171)
  • 11
    1800275 BOLT 3/8X1 1/2 (500314)
    BOLT 3/8X1 1/2 (500314)
  • 12
    1800279 WIPER SEAL (500321)
    WIPER SEAL (500321)
  • 13
    1800277 SEAL HEAD (500157)
    SEAL HEAD (500157)
  • 14
    1800276 WASHER (500503)
    WASHER (500503)
  • 15
    1800130 ASM-PISTON W/BAND CONVEX
    ASM-PISTON W/BAND CONVEX
  • 16
    7518554 SCR-3/8-16X2.25 HX FLG GR5 Y
    SCR-3/8-16X2.25 HX FLG GR5 Y
  • 17
    5135396 SPACER-.375X.50X.577
    SPACER-.375X.50X.577
  • 18
    7547180 NUT-FLANGED, 3/8-16 NYLON-Z
    NUT-FLANGED, 3/8-16 NYLON-Z
  • 19
    7518278 SCR-3/8-16X2 FLG HX GR5 Z
    SCR-3/8-16X2 FLG HX GR5 Z
