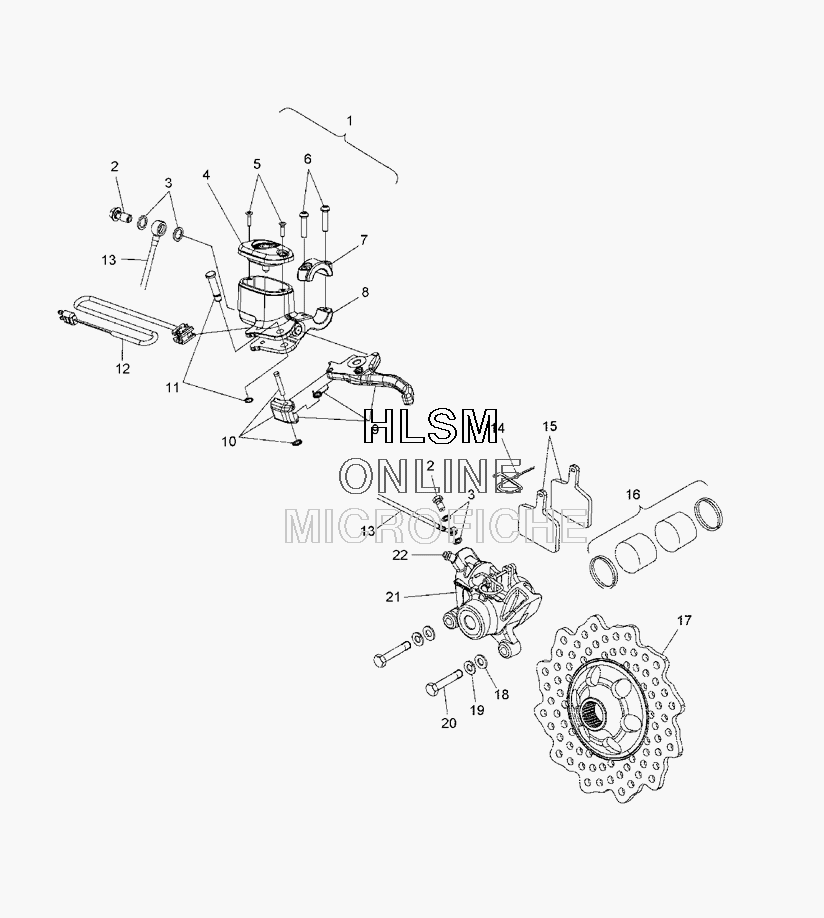

BRAKE ASSEMBLY для Polaris 800 DRAGON RMK 155 SPECIAL LATE PROD. (S08PG8ES) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2203693 KIT-FULLASM CYCII HBMC 9822335 (INCL. 2-12)
    KIT-FULLASM CYCII HBMC 9822335 (INCL. 2-12)
  • 2
    2203392 KIT-M10X1.25 BANJO
    KIT-M10X1.25 BANJO
  • 3
    2203393 KIT-STATOSEAL WASHER (2 PER)
    KIT-STATOSEAL WASHER (2 PER)
  • 4
    2203055 KIT-M/C COVER, HB
    KIT-M/C COVER, HB
  • 5
    2202796 KIT-RES COVER SCR 98-16758
    KIT-RES COVER SCR 98-16758
  • 6
    2202798 KIT-CLAMP SCR 98-16760
    KIT-CLAMP SCR 98-16760
  • 7
    2203093 KIT-CLAMP, HB, 11/16''
    KIT-CLAMP, HB, 11/16''
  • 8
    2203061 KIT-PISTON AND RES, BODY, 5/8, HB
    KIT-PISTON AND RES, BODY, 5/8, HB
  • 9
    2202791 KIT-BRAKE LEVER W/PARK, 98-16753 (INCL. SPRING)
    KIT-BRAKE LEVER W/PARK, 98-16753 (INCL. SPRING)
  • 10
    2203054 KIT-PARK LEVER, HB
    KIT-PARK LEVER, HB
  • 11
    2202799 KIT-PVT PINANDSNAP RNG 98-16761
    KIT-PVT PINANDSNAP RNG 98-16761
  • 12
    2202794 KIT-BRAKE LIGHT SWTCH 98-16756
    KIT-BRAKE LIGHT SWTCH 98-16756
  • 13
    2203758 KIT-BKLN30''INVFLR20°BJO9822799
    KIT-BKLN30''INVFLR20°BJO9822799
  • 14
    2202206 KIT-PIN RETAINING
    KIT-PIN RETAINING
  • 15
    2202727 KIT-BRAKE PAD, TYPE 94 (2 PER)
    KIT-BRAKE PAD, TYPE 94 (2 PER)
  • 16
    2202207 KIT-PISTON/SEAL
    KIT-PISTON/SEAL
  • 16
    2202204 KIT-SEAL
    KIT-SEAL
  • 17
    22037122 WASHER, .380X.813X.150
    WASHER, .380X.813X.150
  • 19
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 20
    7515534 SCREW
    SCREW
  • 21
    2202742 KIT, ASM., BRAKE CALIPER (INCL. 14-16)
    KIT, ASM., BRAKE CALIPER (INCL. 14-16)
  • 22
    2202205 KIT-BLEEDER FITTING
    KIT-BLEEDER FITTING
