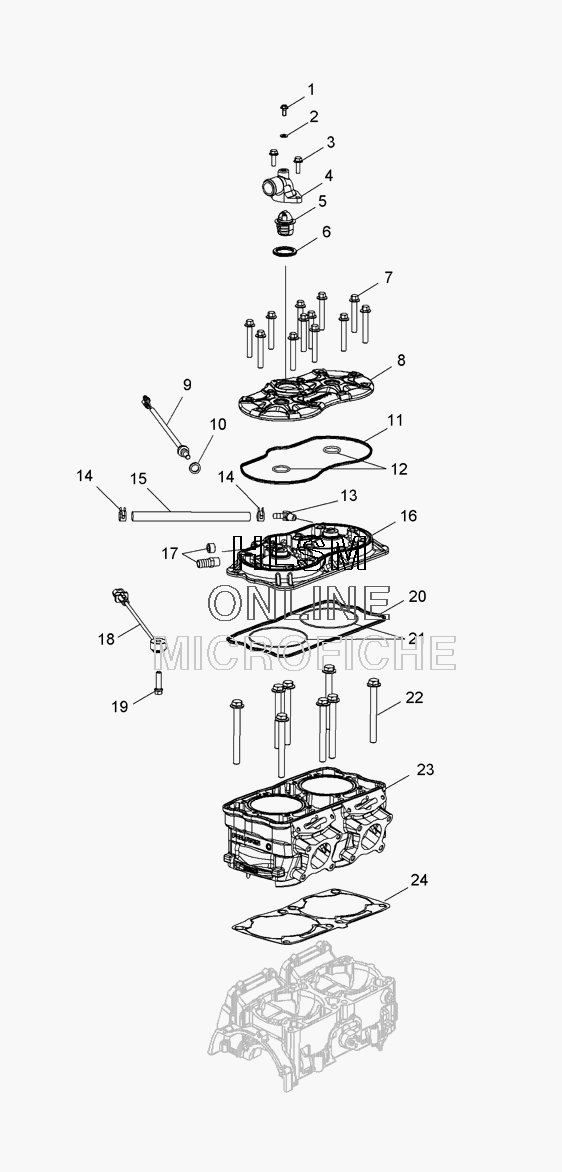

CYLINDER ASSEMBLY для Polaris 800 DRAGON RMK 155 SPECIAL LATE PROD. (S08PG8ES) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7517679 SCREW, M6X1.0 X 13, SL/HX/FL-Z
    SCREW, M6X1.0 X 13, SL/HX/FL-Z
  • 2
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 3
    7516822 SCREW
    SCREW
  • 4
    5134756 COVER-THERMOSTAT M6 BLEED MACH
    COVER-THERMOSTAT M6 BLEED MACH
  • 5
    7052452 THERMOSTAT-3.5 BYPASS
    THERMOSTAT-3.5 BYPASS
  • 6
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 7
    7517533 SCREW, M8X1.25X55
    SCREW, M8X1.25X55
  • 8
    5136071-329 CVR-HEAD 85 TWIN SDI MACH BLACK
    CVR-HEAD 85 TWIN SDI MACH BLACK
  • 9
    4010868 SENSOR-WATER TEMP
    SENSOR-WATER TEMP
  • 10
    7556357 WASHER-18X12X2.5MM-COPPER
    WASHER-18X12X2.5MM-COPPER
  • 11
    5413230 SEAL-GLAND HEAD
    SEAL-GLAND HEAD
  • 12
    5411411 O-RING
    O-RING
  • 13
    7052444 FITTING-5/16 HOSE BARB, 1/8 45
    FITTING-5/16 HOSE BARB, 1/8 45
  • 14
    7081432 CLAMP-HOSE, 17/32, GREEN
    CLAMP-HOSE, 17/32, GREEN
  • 15
    5413080 HOSE-COOLANT, THROTTLE BODY
    HOSE-COOLANT, THROTTLE BODY
  • 16
    3021844 HEAD-CYL 85 TWIN SDI MACH
    HEAD-CYL 85 TWIN SDI MACH
  • 17
    7052413 PLUG-3/8 NPT, HX/SOC W/SEALANT
    PLUG-3/8 NPT, HX/SOC W/SEALANT
  • 18
    2410369 SENSOR-DETONATION BOSCH
    SENSOR-DETONATION BOSCH
  • 18
    7080138 CABLE TIE
    CABLE TIE
  • 19
    7517262 SCR-M8X1.25X30, HX/FL-YD
    SCR-M8X1.25X30, HX/FL-YD
  • 20
    5413288 SEAL-GLAND, CYLINDER
    SEAL-GLAND, CYLINDER
  • 21
    5413319 O-RING 3.664X3.804X07, HI-TMP
    O-RING 3.664X3.804X07, HI-TMP
  • 22
    7518774 SCR-M10X1.50X100MM, HXFL, 10.9
    SCR-M10X1.50X100MM, HXFL, 10.9
  • 23
    3021843 CYLINDER-85MM SDI MONOBLOCK
    CYLINDER-85MM SDI MONOBLOCK
  • 24
    5813258 GASKET-BASE CYLINDER
    GASKET-BASE CYLINDER
