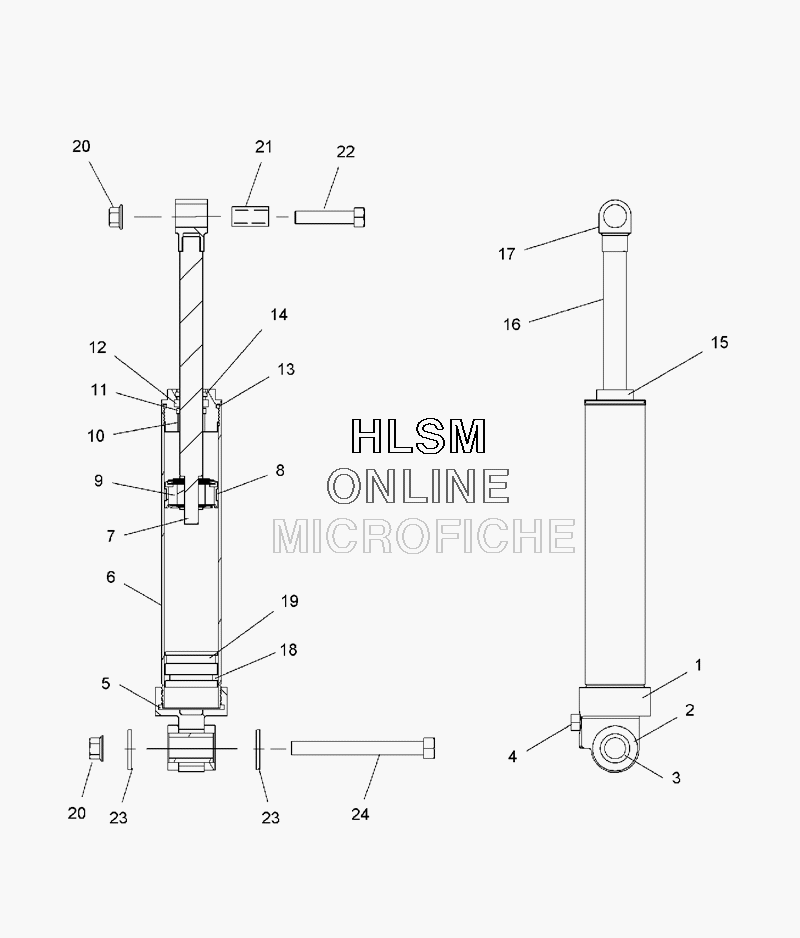

SUSPENSION - REAR SHOCK TRACK для Polaris 700 DRAGON RMK 163 EURO (S08PH7JE) - 2008 года выпуска
-
№АртикулНазвание
-
-7043366 SHOCK-R/T, WEESHOCK-R/T, WEE
-
11800273 BODY LOOP (200147)BODY LOOP (200147)
-
21800036 BUSHING/URETHANEBUSHING/URETHANE
-
31800032 SLEEVE 1.202''LSLEEVE 1.202''L
-
41800107 VALVE-NEEDLEVALVE-NEEDLE
-
41800108 O-RINGO-RING
-
41800109 SCREW-BUTTON HEAD 8/32SCREW-BUTTON HEAD 8/32
-
51800030 O-RING BODYO-RING BODY
-
61800291 BODY (200164)BODY (200164)
-
71800031 3/8'' CRIMP NUT3/8'' CRIMP NUT
-
81800029 WEAR BAND, TEFLON (100311)WEAR BAND, TEFLON (100311)
-
91800230 PISTON-W/BAND, .040 REDPISTON-W/BAND, .040 RED
-
101800292 BUSHING, SHAFT (100307)BUSHING, SHAFT (100307)
-
111800095 O-RINGO-RING
-
121800294 SEAL, U-CUP (100303)SEAL, U-CUP (100303)
-
131800027 O-RING BODYO-RING BODY
-
141800295 SEAL, WIPER (100301)SEAL, WIPER (100301)
-
151800293 SEAL, HEAD (600157)SEAL, HEAD (600157)
-
161800296 SHAFT .50 (500173)SHAFT .50 (500173)
-
171800096 EYELETEYELET
-
181800028 O-RING RESERVOIRO-RING RESERVOIR
-
191800214 PISTON-RES., W/BLEED SCREWPISTON-RES., W/BLEED SCREW
-
207547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
215010422 BUSHINGBUSHING
-
227512410 BOLTBOLT
-
237555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
247518263 SCR-3/8-24X4.00 HXCP-GR5-YSCR-3/8-24X4.00 HXCP-GR5-Y
