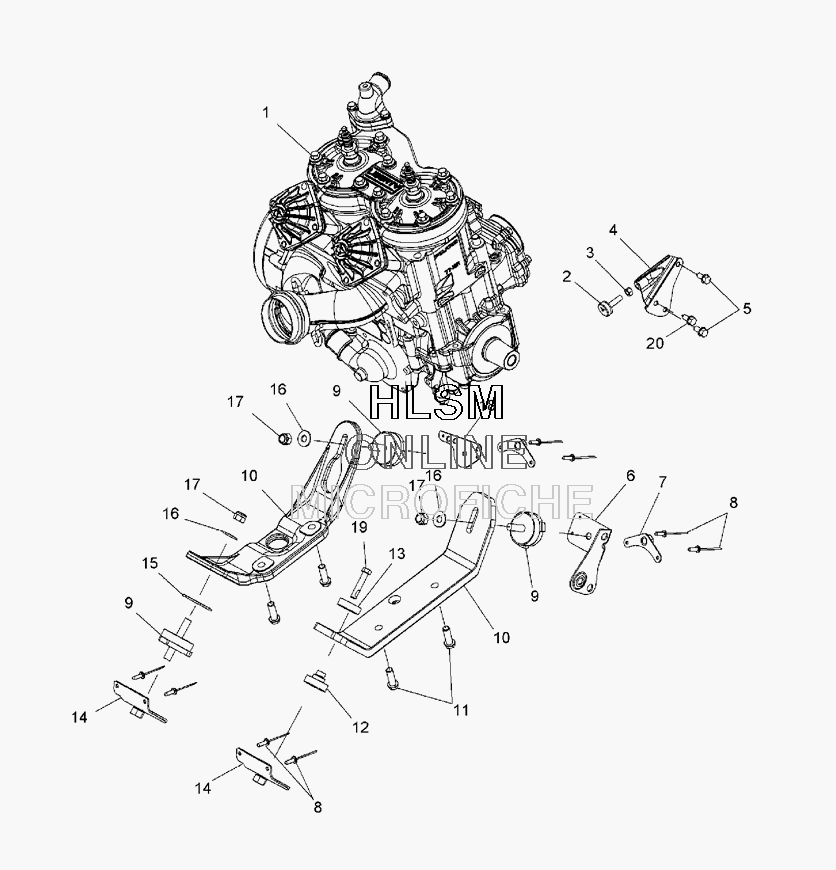

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 700 DRAGON RMK 163 EURO (S08PH7JE) - 2008 года выпуска
-
№АртикулНазвание
-
12203600 KIT-SHT BLACK S-3471-7400-PU7J (SEE NOTE)KIT-SHT BLACK S-3471-7400-PU7J (SEE NOTE)
-
23021354 STOP-TORQUE, COURSE, 3/8-16 1.50STOP-TORQUE, COURSE, 3/8-16 1.50
-
37542404 NUTNUT
-
41015359 WELD-TORQUE STOPWELD-TORQUE STOP
-
57517854 SCR-3/8-16X1-P30-SPEC-YSCR-3/8-16X1-P30-SPEC-Y
-
61015415 WELD-TORQUE STOP/ENGINE MOUNTWELD-TORQUE STOP/ENGINE MOUNT
-
71015202 WELD-NUT PLATE, REARWELD-NUT PLATE, REAR
-
87661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
93021717 ISOLATOR-RUBBERISOLATOR-RUBBER
-
105135856 STRAP-ENGINE MNT, LEFT HAND, SDISTRAP-ENGINE MNT, LEFT HAND, SDI
-
105135326 STRAP-ENGINE, RIGHT HAND, MACHSTRAP-ENGINE, RIGHT HAND, MACH
-
117518644 SCR-M10X1.50X35 HX/FLSCR-M10X1.50X35 HX/FL
-
125413303 MOUNT-ENGINE RUBBER, BOTTOM 3/8MOUNT-ENGINE RUBBER, BOTTOM 3/8
-
135413350 MOUNT-ENGINE RUBBER TOP, 3/8MOUNT-ENGINE RUBBER TOP, 3/8
-
141016001 ASM- CLINCH NUT PLATEASM- CLINCH NUT PLATE
-
157555915 WASHER, FLATWASHER, FLAT
-
167555893 WASHER, FLATWASHER, FLAT
-
177542451 NUT, NYLOKNUT, NYLOK
-
185250173 SUPPORT-ENG MNT RR, MAGSUPPORT-ENG MNT RR, MAG
-
197518782 BOLT3/8-16X2.25HXCSGR8-Y, SPPTBOLT3/8-16X2.25HXCSGR8-Y, SPPT
-
207517632 SCREWSCREW
