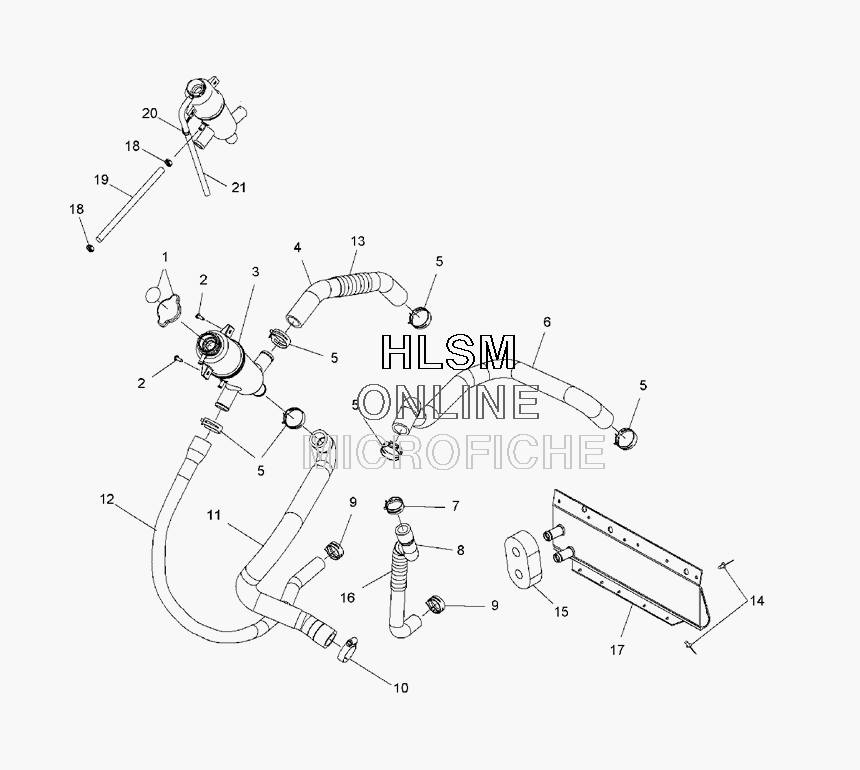

COOLING SYSTEM для Polaris 700 DRAGON RMK 163 EURO (S08PH7JE) - 2008 года выпуска
-
№АртикулНазвание
-
11240169 CAP-PRESSURECAP-PRESSURE
-
17170063 DECAL-WATER BOTTLE CAPDECAL-WATER BOTTLE CAP
-
27515148 SCREW [RMK]SCREW [RMK]
-
32520479 COOLANT BOTTLECOOLANT BOTTLE
-
45413045 HOSE-TUNNEL COOLER/BOTTLEHOSE-TUNNEL COOLER/BOTTLE
-
57080844 CLAMP, SPRINGBAND 35/12, BLACKCLAMP, SPRINGBAND 35/12, BLACK
-
65413053 HOSE-ENGINE OUT/TUNNEL COOLHOSE-ENGINE OUT/TUNNEL COOL
-
77080842 CLAMP, SPRINGBAND 29/12, BLACKCLAMP, SPRINGBAND 29/12, BLACK
-
85413199 HOSE-BY-PASS/CENTER COOLERHOSE-BY-PASS/CENTER COOLER
-
97080841 CLAMP, SPRINGBAND 27/12, GREENCLAMP, SPRINGBAND 27/12, GREEN
-
107080560 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
115413006 HOSE-BOTTLE/INLETHOSE-BOTTLE/INLET
-
125413046 HOSE-CENTER COOLER/BOTTLEHOSE-CENTER COOLER/BOTTLE
-
135521510 TUBING-CONVOLUTED 1.25''X3''TUBING-CONVOLUTED 1.25''X3''
-
147661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
155813082 SEAL-FRT CLOSEOFF COOLERSEAL-FRT CLOSEOFF COOLER
-
165521242 TUBING, CONVOL, 1''X2.5''TUBING, CONVOL, 1''X2.5''
-
171240263 WELD-COOLER, BULKHEADWELD-COOLER, BULKHEAD
-
187080534 CLAMP, HOSECLAMP, HOSE
-
198450044-153 FUEL LINE, 5 FT.FUEL LINE, 5 FT.
-
207080884 CLIP, JCLIP, J
-
218450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
