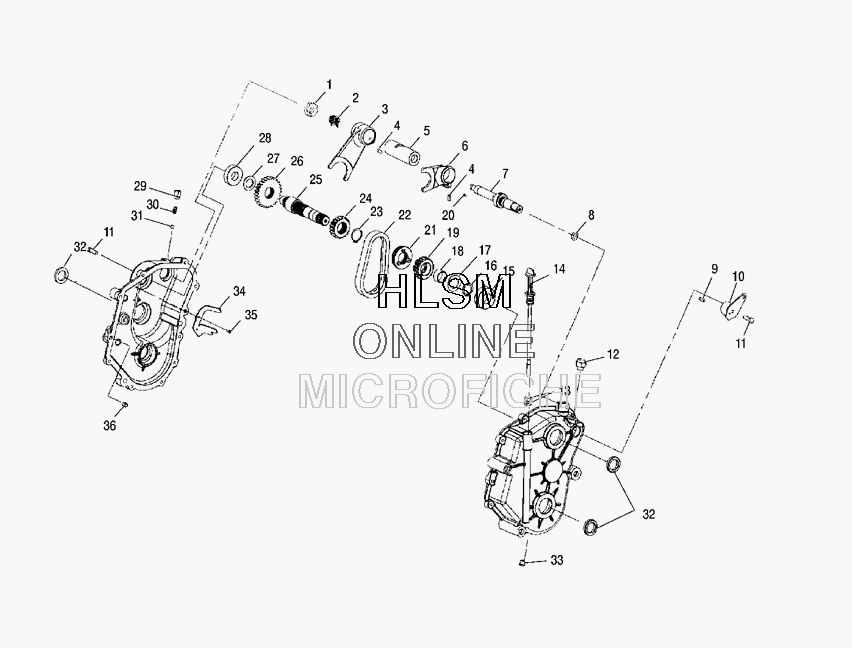

GEARCASE (1 OF 2) для Polaris WIDETRAK LX AND EURO (S07SU4BS/BE) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1341494 GEARCASE ASM. (INCL. 1-36 AND ALL FROM GEARCASE (2 OR 2))
    GEARCASE ASM. (INCL. 1-36 AND ALL FROM GEARCASE (2 OR 2))
  • 1
    3234170 SHIFT-INDEX
    SHIFT-INDEX
  • 2
    3234171 SPRING
    SPRING
  • 3
    3233503 SHIFT FORK, LOW
    SHIFT FORK, LOW
  • 4
    3233375 PIN, DOWELL
    PIN, DOWELL
  • 5
    3233504 DRUM, SHIFT
    DRUM, SHIFT
  • 6
    3233505 SHIFT, FORK, HIGH
    SHIFT, FORK, HIGH
  • 7
    3233403 SHAFT, SHIFT
    SHAFT, SHIFT
  • 8
    5410440 O RING
    O RING
  • 9
    3233414 KEY, (3/16 X 1/4)
    KEY, (3/16 X 1/4)
  • 10
    3233393 BELLCRANK, WTD
    BELLCRANK, WTD
  • 11
    3233026 SCREW
    SCREW
  • 12
    3233410 SWITCH
    SWITCH
  • 13
    5410675 O-RING
    O-RING
  • 14
    5431419 ASM-DIPSTICK
    ASM-DIPSTICK
  • 15
    3233019 BEARING
    BEARING
  • 16
    3233106 RING, SNAP
    RING, SNAP
  • 17
    3233468 WASHER, THRUST
    WASHER, THRUST
  • 18
    3233383 BEARING, NEEDLE
    BEARING, NEEDLE
  • 19
    3233509 SPROCKET, 19T, .75W MUST ORDER WITH REF. 21
    SPROCKET, 19T, .75W MUST ORDER WITH REF. 21
  • 20
    3233415 KEY, (1/8 X 1/4)
    KEY, (1/8 X 1/4)
  • 21
    3233470 DOG, ENGAGE, HIGH MUST ORDER WITH REF. 19
    DOG, ENGAGE, HIGH MUST ORDER WITH REF. 19
  • 22
    3233508 CHAIN-23-147, .375X.75X40P
    CHAIN-23-147, .375X.75X40P
  • 23
    3233424 RING, RETAINING
    RING, RETAINING
  • 24
    3233507 SPROCKET, 19T
    SPROCKET, 19T
  • 25
    3233506 SHAFT, INPUT
    SHAFT, INPUT
  • 26
    3233419 GEAR, 27T
    GEAR, 27T
  • 27
    3233416 SPACER
    SPACER
  • 28
    3233018 BEARING
    BEARING
  • 29
    3234173 EXTENSION-DETENT
    EXTENSION-DETENT
  • 30
    7041483 SPRING, SHIFTER DETENT
    SPRING, SHIFTER DETENT
  • 31
    7080310 BALL, DETENT
    BALL, DETENT
  • 32
    3233413 SEAL-DUAL LIP .0984X1.500X.25
    SEAL-DUAL LIP .0984X1.500X.25
  • 33
    7052115 PLUG
    PLUG
  • 34
    3233406 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 35
    3233033 SCREW-TAPPING, W/LOCK WASHER
    SCREW-TAPPING, W/LOCK WASHER
  • 36
    3233021 PIPE, KNOCK
    PIPE, KNOCK
