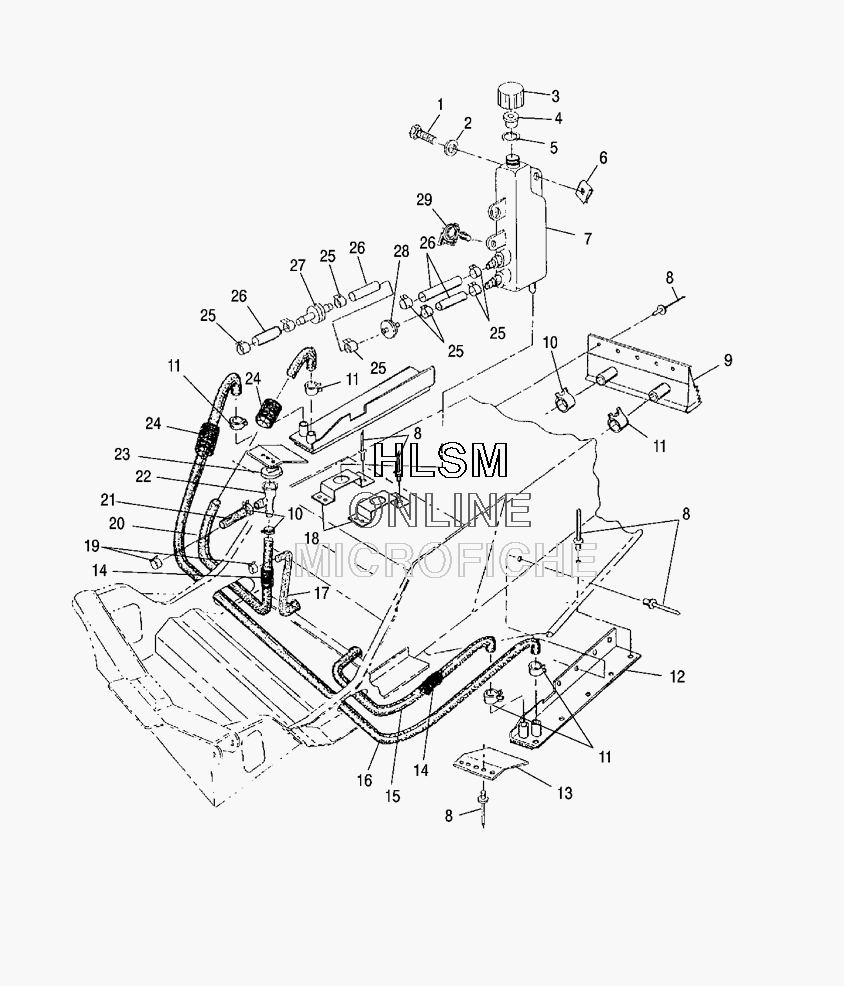

COOLING SYSTEM для Polaris WIDETRAK LX AND EURO (S07SU4BS/BE) - 2007 года выпуска

№

Артикул

Название
1

7512276 BOLT

BOLT
2

7558302 WASHER, WROUGHT

WASHER, WROUGHT
3

5430743 CAP, OVERFLOW

CAP, OVERFLOW
4

5431096 PLUG

PLUG
5

5810279 GASKET

GASKET
6

7670096 NUT

NUT
7

5431733 BOTTLE, O'FLOW, W/FITTING

BOTTLE, O'FLOW, W/FITTING
8

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z
9

2511187 EXT, CTR.COOLING

EXT, CTR.COOLING
10

7080844 CLAMP, SPRINGBAND 35/12, BLACK

CLAMP, SPRINGBAND 35/12, BLACK
11

7080841 CLAMP, SPRINGBAND 27/12, GREEN

CLAMP, SPRINGBAND 27/12, GREEN
12

2511257 COOLER, SIDE, X-10, LH

COOLER, SIDE, X-10, LH
12

2511258 COOLER, RIGHT HAND, SIDE (XTRA 10)

COOLER, RIGHT HAND, SIDE (XTRA 10)
13

5240555 GUARD, COOL.EXT.

GUARD, COOL.EXT.
14

5411396 TUBING, CONVOL, 8''X1''

TUBING, CONVOL, 8''X1''
15

5410558 HOSE, CROSSOVER, SHORT

HOSE, CROSSOVER, SHORT
16

5410557 HOSE, CROSSOVER

HOSE, CROSSOVER
17

5411382 HOSE, CLOSEOFF, OUT ENG.

HOSE, CLOSEOFF, OUT ENG.
18

5241334 BRKT, OILTANK, COINED

BRKT, OILTANK, COINED
19

7080842 CLAMP, SPRINGBAND 29/12, BLACK

CLAMP, SPRINGBAND 29/12, BLACK
20

5411381 HOSE, FILLER OUT, RIGHT HAND.EXT.

HOSE, FILLER OUT, RIGHT HAND.EXT.
21

5411010 HOSE, ENG.OUT/FILLER

HOSE, ENG.OUT/FILLER
22

5433364 FILLER-REMOTE COOLANT

FILLER-REMOTE COOLANT
23

2511256 CAP, PRESS.(19-21 LB.)

CAP, PRESS.(19-21 LB.)
24

5521242 TUBING, CONVOL, 1''X2.5''

TUBING, CONVOL, 1''X2.5''
24

7041079 SPRING, HOSE RETAINER

SPRING, HOSE RETAINER
25

7080307 CLAMP, HOSE

CLAMP, HOSE
26

8450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)

LINE, FUEL, 1/4 ID (1525 CM.)
27

7052038 VALVE, CHECK

VALVE, CHECK
28

2530024 FILTER, COOLANT, LGE.

FILTER, COOLANT, LGE.
29

4020139 CLIP, ROSEBUD

CLIP, ROSEBUD
