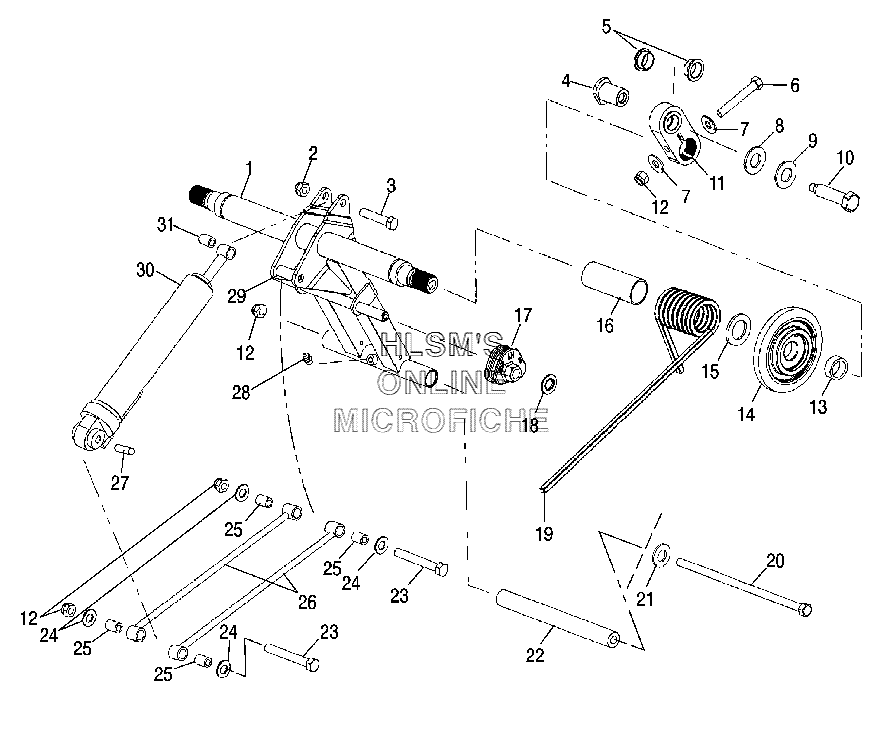

SUSPENSION - REAR SHOCK TRACK для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
11541969-067 WELD-ARM, TORQUE (REAR/BLACK)WELD-ARM, TORQUE (REAR/BLACK)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37512410 BOLTBOLT
-
45333758 SHAFT-ARMSHAFT-ARM
-
53514331 BUSHINGBUSHING
-
67515415 SCREWSCREW
-
77556188 WASHER, FLATWASHER, FLAT
-
87555893 WASHER, FLATWASHER, FLAT
-
97552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107517435 SCREWSCREW
-
111541967 ARM ASSY. (2.00) (INCL. 5)ARM ASSY. (2.00) (INCL. 5)
-
127542439 NUT, NYLOKNUT, NYLOK
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590343 CARRIER WHEEL ASSY/CARRIER WHEEL ASSY/
-
157555787 WASHERWASHER
-
165431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175434589 ROLLER-SPRING, TRI-ADJ (LEFT)ROLLER-SPRING, TRI-ADJ (LEFT)
-
175434590 ROLLER-SPRING, TRI-ADJ (RIGHT)ROLLER-SPRING, TRI-ADJ (RIGHT)
-
187080394 CLIP, PUSH ONCLIP, PUSH ON
-
197041942-067 SPRING-TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT.)SPRING-TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT.)
-
197041943-067 SPRING-TORSION (375SQ/77Ш) (RIGHT/BLACK) (OPT.)SPRING-TORSION (375SQ/77Ш) (RIGHT/BLACK) (OPT.)
-
197041940-067 SPRING-TORSION (.405SQ/77Ш) (LEFT/BLACK) (STD/FIRM)SPRING-TORSION (.405SQ/77Ш) (LEFT/BLACK) (STD/FIRM)
-
197041941-067 SPRING-TORSION (.405SQ/77Ш) (RIGHT/BLACK) (STD/FIRM)SPRING-TORSION (.405SQ/77Ш) (RIGHT/BLACK) (STD/FIRM)
-
207517232 SCREWSCREW
-
217555806 WASHER, FLATWASHER, FLAT
-
225334025 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 ROD, SHOCK (12.850) (BLACK)ROD, SHOCK (12.850) (BLACK)
-
275333905 SLEEVESLEEVE
-
287080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
295333904 SPACERSPACER
-
307042138 SHOCK-R/TSHOCK-R/T
