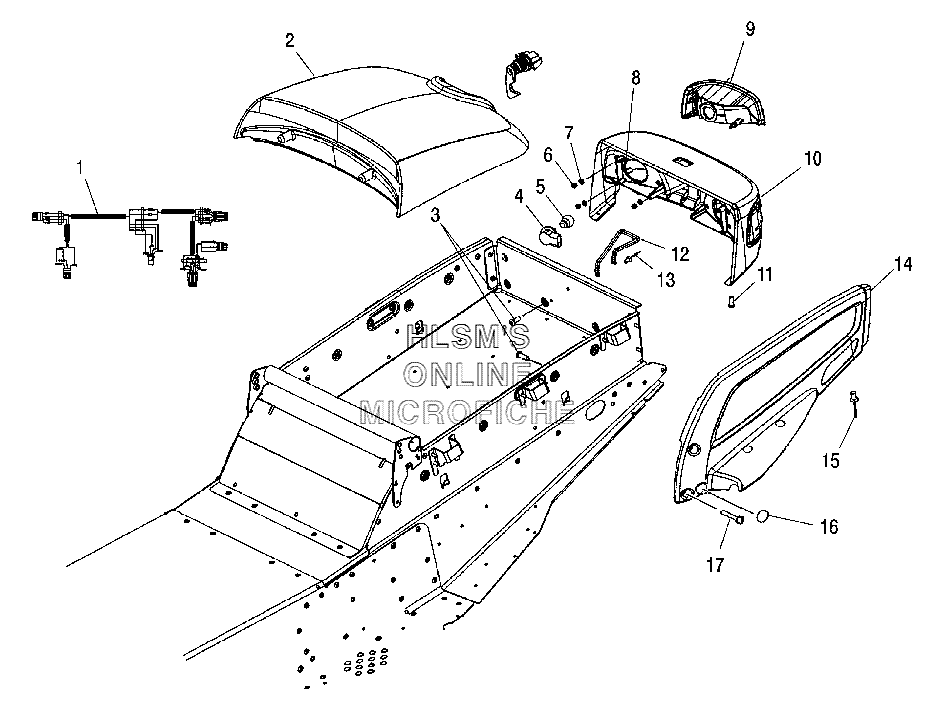

SEAT COVER W/ TAILLIGHT для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
12461166 HARNESS-TAILLIGHTHARNESS-TAILLIGHT
-
22875964 BAG, 2 UP TOURINGBAG, 2 UP TOURING
-
37512076 SCREWSCREW
-
44010767 SOCKET-BULBSOCKET-BULB
-
54010764 BULB-TAILLIGHTBULB-TAILLIGHT
-
67546703 NUT, NYLOKNUT, NYLOK
-
77556088 WASHER, FLATWASHER, FLAT
-
87670042 U-CLIPU-CLIP
-
92410327 REFLECTOR ASSY (LEFT)REFLECTOR ASSY (LEFT)
-
92410328 REFLECTOR ASSY (RIGHT)REFLECTOR ASSY (RIGHT)
-
117670125 FASTNER-PUSH-ON CLIPFASTNER-PUSH-ON CLIP
-
125246523 BAIL-TRUNK LOCKBAIL-TRUNK LOCK
-
137661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
145435128-070 PANEL (LEFT)PANEL (LEFT)
-
145435129-070 PANEL (RIGHT)PANEL (RIGHT)
-
145412449 PLUG-HANDWARMER SWITCH (RIGHT ONLY)PLUG-HANDWARMER SWITCH (RIGHT ONLY)
-
157621467 RIVET, BLINDRIVET, BLIND
-
165410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
177517916 SCREWSCREW
-
-2410324-067 TAILLIGHT (INCL. 6-9)TAILLIGHT (INCL. 6-9)
Все узлы модели:
- BATTERY BOX
- BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- BRAKE - MASTER CYLINDER ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DECALS
- DRIVE GEAR W/ PULLEY
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL SYSTEM
- GENERATOR ASSEMBLY
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT ADJUSTABLE
- • SEAT COVER W/ TAILLIGHT
- SKI ASSEMBLY
- STARTING MOTOR ASSEMBLY
- STEERING LINKAGE
- STEERING POST - HOOP
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION/TRACK
- TOOL KIT
