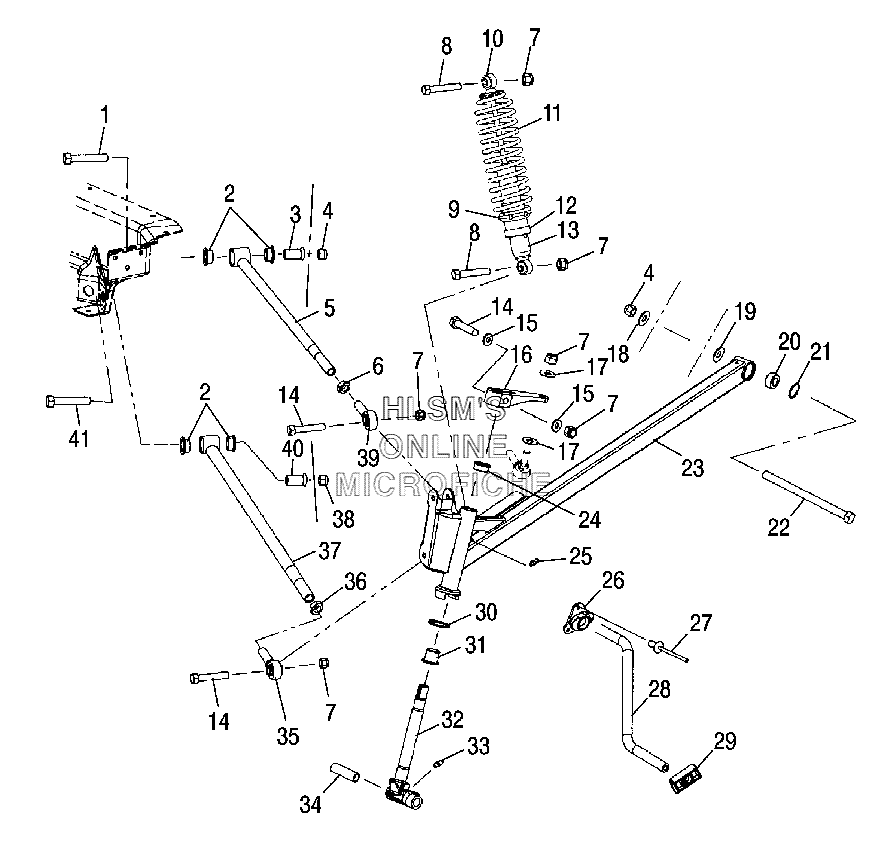

SUSPENSION - FRONT W/ STEERING для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17517980 BOLTBOLT
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING-SHOULDERBUSHING-SHOULDER
-
47547066 NUT, NYLOKNUT, NYLOK
-
51820679-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
105630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
117042074-385 SPRING-COMPSPRING-COMP
-
121500063 RETAINER, SPRING BODYRETAINER, SPRING BODY
-
137041918 SHOCK, GASSHOCK, GAS
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
165132728 ARM-STEERINGARM-STEERING
-
177555797 WASHER, FLATWASHER, FLAT
-
187555820 WASHER, FLATWASHER, FLAT
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING-SPHERICALBEARING-SPHERICAL
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 SCREWSCREW
-
231821165-385 TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)
-
231821166-385 TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 20, 21)
-
243573909 BUSHING-FLANGEBUSHING-FLANGE
-
257080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
265433814 BUSHING, TORSION BARBUSHING, TORSION BAR
-
277621452 RIVETRIVET
-
285244557-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
295434371 SLIDE-TORSION BARSLIDE-TORSION BAR
-
307556509 BUSHINGBUSHING
-
313574208 BUSHING, FLANGEDBUSHING, FLANGED
-
326230225-067 SHAFT-SPINDLE, W/STEER STOP (BLACK)SHAFT-SPINDLE, W/STEER STOP (BLACK)
-
337080306 FITTING, LUBE W/BALLFITTING, LUBE W/BALL
-
345010158 BUSHING, PIVOTBUSHING, PIVOT
-
357061060 ROD END, RADIUSROD END, RADIUS
-
367542711 NUT-JAMNUT-JAM
-
371820677-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
387547065 NUT, NYLOKNUT, NYLOK
-
397061061 ROD END, RADIUSROD END, RADIUS
-
405132780 BUSHING-SHOULDERBUSHING-SHOULDER
-
417512684 BOLTBOLT
