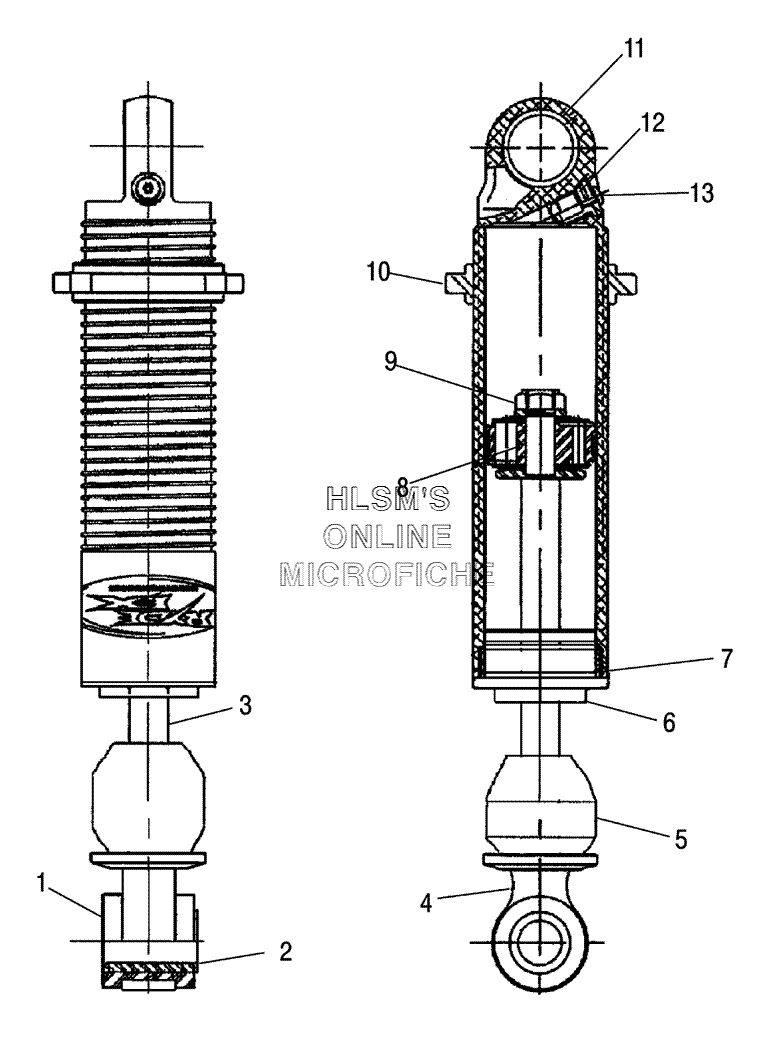

SUSPENSION - REAR SHOCK TRACK для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1700075 BUSHING
    BUSHING
  • 2
    1700069 SLEEVE
    SLEEVE
  • 3
    1700215 SHAFT
    SHAFT
  • 4
    1700011 MOUNT (UPPER)
    MOUNT (UPPER)
  • 5
    1700042 BUMPER, COMPRESSION
    BUMPER, COMPRESSION
  • 6
    1700156 CYLINDER HEAD ASSY
    CYLINDER HEAD ASSY
  • 7
    1700051 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 8
    1700100 BANDED PISTON ASSY (.060'' ORIFCE)
    BANDED PISTON ASSY (.060'' ORIFCE)
  • 8
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 8
    1700077 TOP OUT WASHER
    TOP OUT WASHER
  • 8
    1700078 BACK UP WASHER
    BACK UP WASHER
  • 9
    1700216 NUT
    NUT
  • 10
    1700033 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 11
    3514450 BEARING PLAIN (.87X1.00X.625)
    BEARING PLAIN (.87X1.00X.625)
  • 12
    1700056 VALVE SCREW
    VALVE SCREW
  • 13
    1700184 PRESS VALVE ASSY
    PRESS VALVE ASSY
  • 13
    1700047 PRESS VALVE O-RING
    PRESS VALVE O-RING
