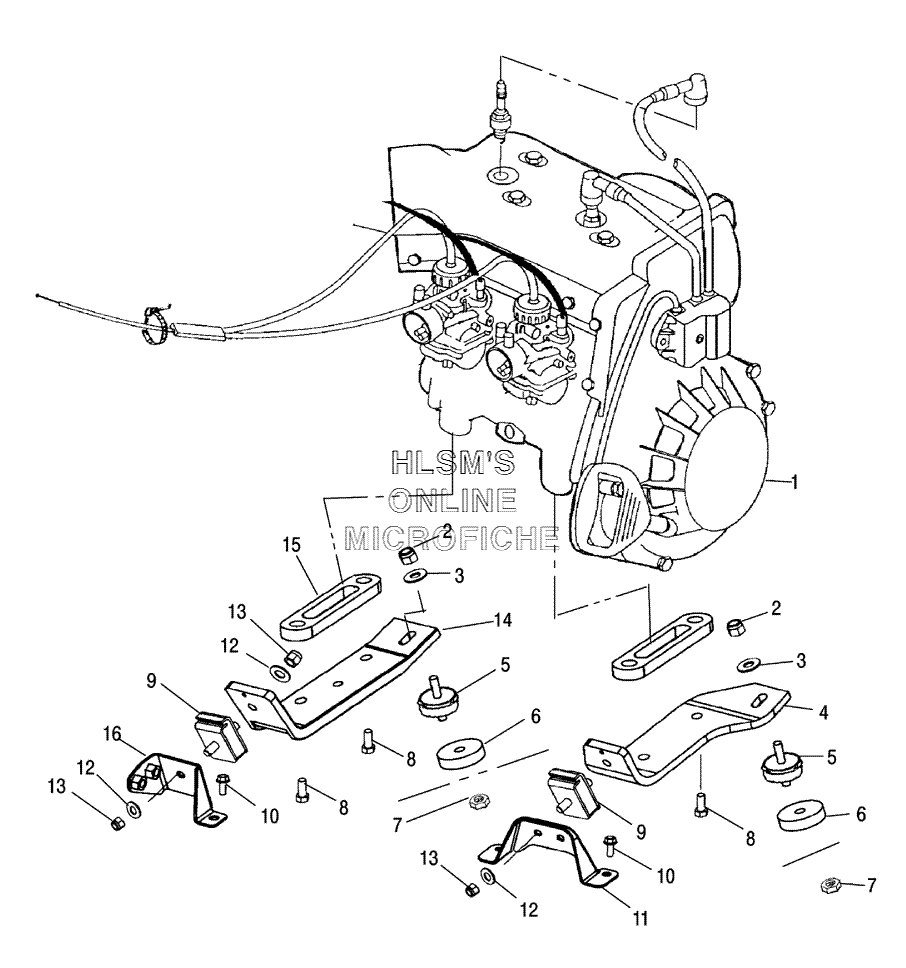

ENGINE MOUNTING W/ SHORT BLOCK для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска
-
№АртикулНазвание
-
13088822 ENGINE (SEE NOTE:)ENGINE (SEE NOTE:)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINEMOUNT ENGINE
-
65245117 SPACER ENGINE MOUNT (.44)SPACER ENGINE MOUNT (.44)
-
77547180 NUT FLANGEDNUT FLANGED
-
87517399 SCREWSCREW
-
93021206 MOUNT ENGINEMOUNT ENGINE
-
107517854 SCREWSCREW
-
115245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
145245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
155245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
-
161013397 WELDED ENGINE MOUNT BRACKET (LEFT)WELDED ENGINE MOUNT BRACKET (LEFT)
