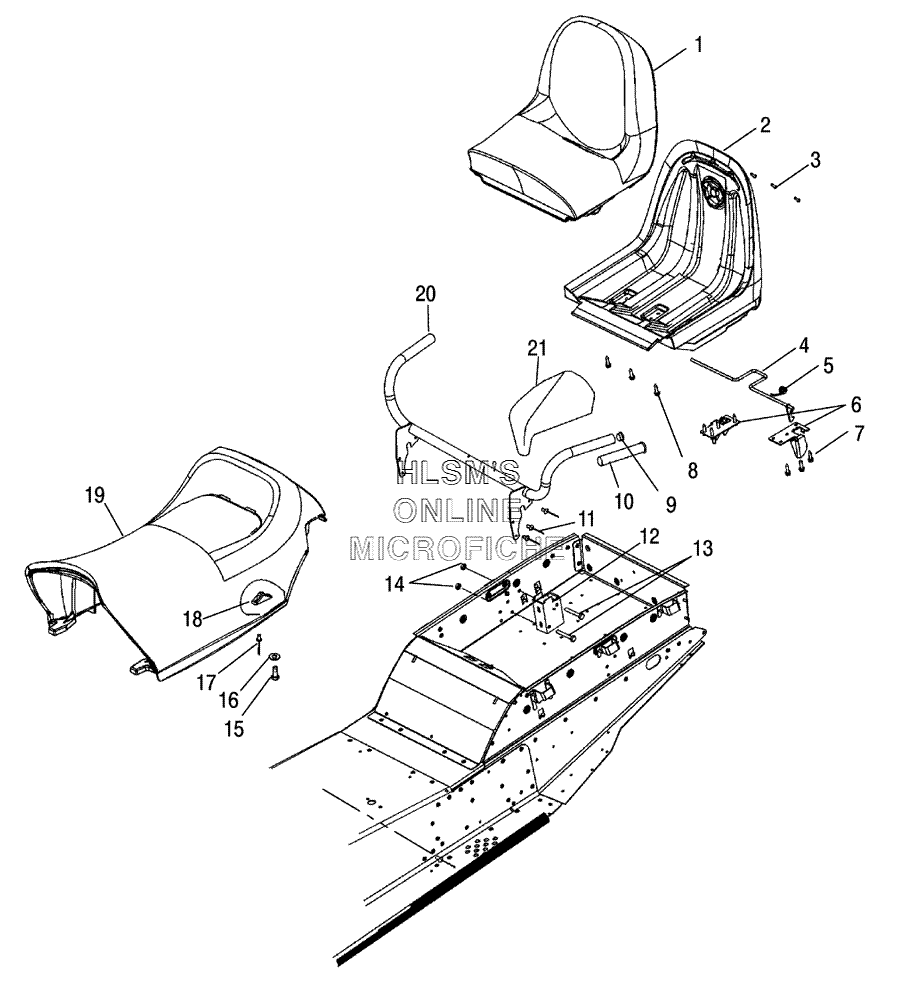

SEAT W/ TAILLIGHT для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска
-
№АртикулНазвание
-
12683680 BASE PASSENGER SEAT ASSY, SECONDARYBASE PASSENGER SEAT ASSY, SECONDARY
-
12683681 PASSENGER SEAT COVER ASSYPASSENGER SEAT COVER ASSY
-
22683679 PASSENGER SEAT ASSY, TOURING (INCL. 1 8)PASSENGER SEAT ASSY, TOURING (INCL. 1 8)
-
37512026 SCREWSCREW
-
41013935 WELD LATCH, SEATWELD LATCH, SEAT
-
57042246 SPRING SEAT LATCH, TORSIONSPRING SEAT LATCH, TORSION
-
65247090 PLATE LATCH MOUNT (LEFT)PLATE LATCH MOUNT (LEFT)
-
65247091 PLATE LATCH MOUNT (RIGHT)PLATE LATCH MOUNT (RIGHT)
-
77621485 RIVETRIVET
-
87512098 SCREWSCREW
-
95431096 PLUGPLUG
-
105432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
117661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
125246855 TUBE STRIKERTUBE STRIKER
-
137512130 BOLTBOLT
-
147542122 NUT NYLOKNUT NYLOK
-
157517219 SCREWSCREW
-
167558301 WASHER, FLATWASHER, FLAT
-
177621319 RIVETRIVET
-
185631194 NUT SEATNUT SEAT
-
192683677 SEAT ASSY, TOURINGSEAT ASSY, TOURING
-
192683678 SEAT COVER ASSYSEAT COVER ASSY
-
201014241-067 WELD GRABHANDLE, NON ADJUSTABLE (BLACK)WELD GRABHANDLE, NON ADJUSTABLE (BLACK)
-
2683071 BASE PASSENGER SEAT, PRIMARY (INCL. 2 8)BASE PASSENGER SEAT, PRIMARY (INCL. 2 8)
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- • SEAT W/ TAILLIGHT
- SKI ASSEMBLY #1
- SKI ASSEMBLY #2
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
