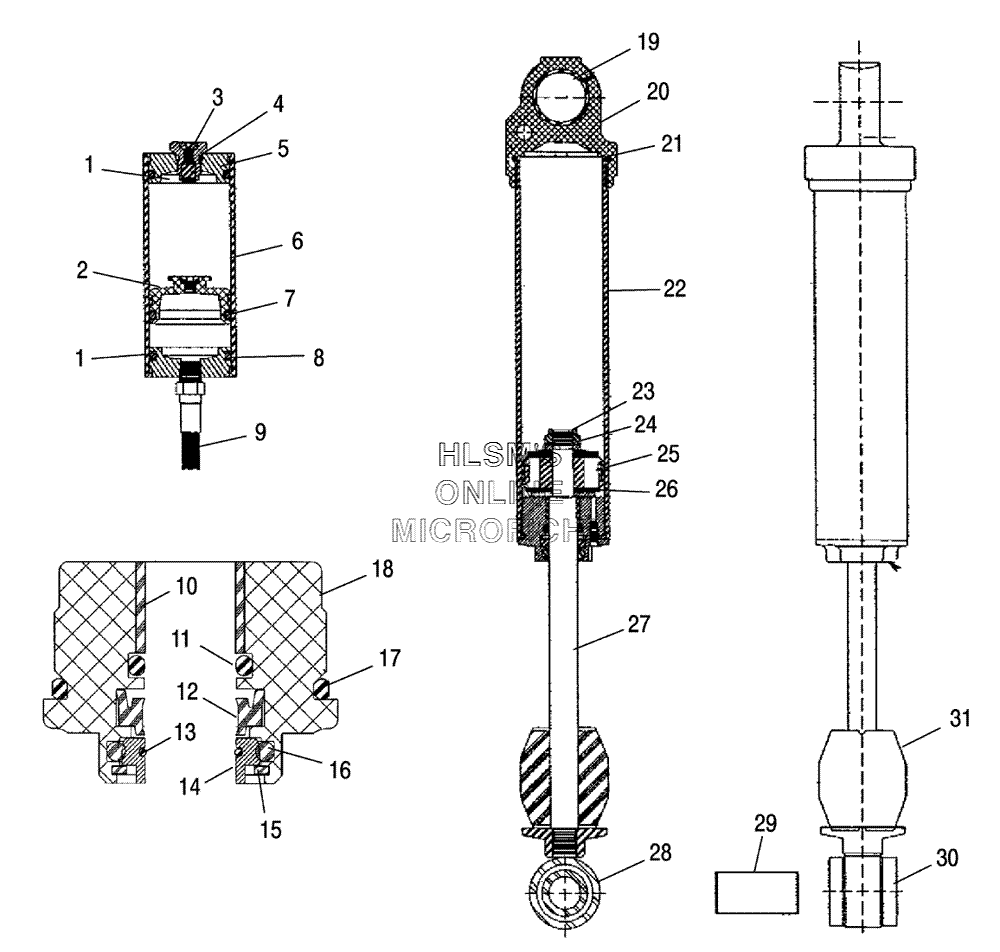

SUSPENSION - REAR SHOCK TRACK (M-10) для Polaris SuperSport (S06NP5BSB) - 2006 года выпуска`
-
№АртикулНазвание
-
11500450 SEAL-O-RINGSEAL-O-RING
-
21500187 PISTON FLOATINGPISTON FLOATING
-
31500014 VALVE AIR ASSYVALVE AIR ASSY
-
41500023 O-RING (OUTER)O-RING (OUTER)
-
51500160 RESERVOIR, ENDCAP ASSYRESERVOIR, ENDCAP ASSY
-
61500451 DAMPENERDAMPENER
-
71500003 O-RING, END CAPO-RING, END CAP
-
81500163 ENDCAP RESERVOIR ASSYENDCAP RESERVOIR ASSY
-
91500445 HOSE 14.00 TLGHOSE 14.00 TLG
-
101500488 BEARINGBEARING
-
111500021 O-RING (INNER)O-RING (INNER)
-
121500266 U-CUP URETHU-CUP URETH
-
131500484 O-RINGO-RING
-
141500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500483 O-RINGO-RING
-
171500020 O-RINGO-RING
-
181500545 DAMPENER ASSY (INCL. 10-17)DAMPENER ASSY (INCL. 10-17)
-
191500444 BEARINGBEARING
-
201500448 BODY CAP ASSYBODY CAP ASSY
-
211500108 O-RINGO-RING
-
221500446 BODY THEADBODY THEAD
-
231500016 NUT, LOCKNUT, LOCK
-
241500015 PLATE, BACKUPPLATE, BACKUP
-
251500002 BEARING, PISTONBEARING, PISTON
-
261500017 PLATE, TOP OUTPLATE, TOP OUT
-
271500447 SHAFTSHAFT
-
281500164 EYELET, BASEEYELET, BASE
-
291500310 SLEEVESLEEVE
-
301500309 BUSHINGBUSHING
-
315410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
-1500449 RESERVIOR, NON ADJUST ASSY (INCL. 1-3)RESERVIOR, NON ADJUST ASSY (INCL. 1-3)
