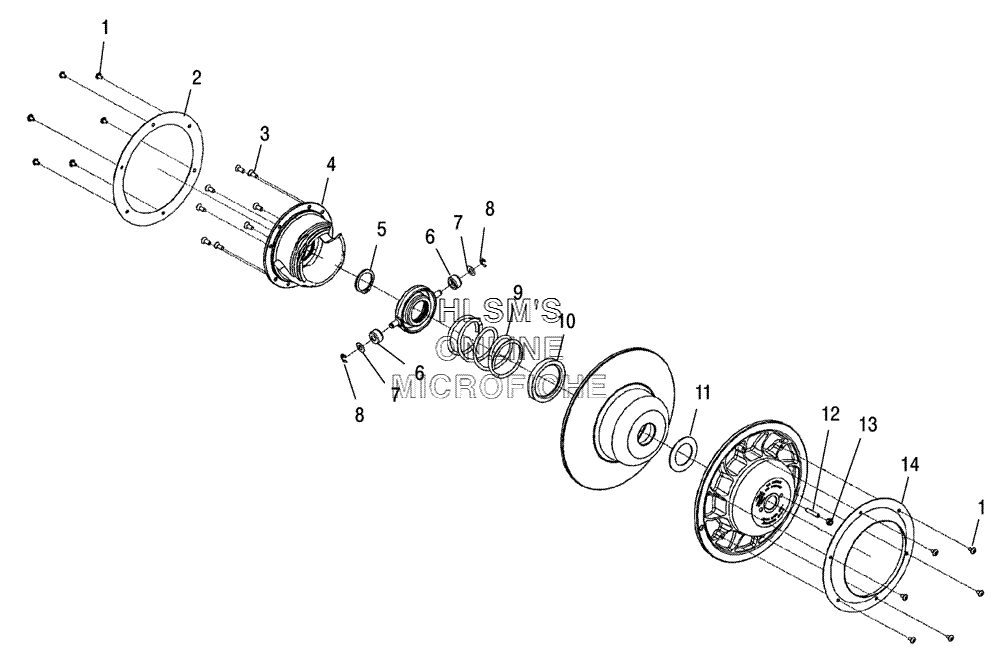

CLUTCH - DRIVEN для Polaris SuperSport (S06NP5BSB) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7518023 SCREW THEAD
    SCREW THEAD
  • 2
    5246216 PLATE WINDAGE MOV
    PLATE WINDAGE MOV
  • 3
    3233996 SCREW CAP TORX
    SCREW CAP TORX
  • 4
    5133887 RAMP DRIVEN
    RAMP DRIVEN
  • 5
    7710522 RETAINING RING EXTENSION
    RETAINING RING EXTENSION
  • 6
    5434534 ROLLER
    ROLLER
  • 7
    7556226 WASHER THRUST
    WASHER THRUST
  • 8
    7710523 RETAINING RING EXTENSION
    RETAINING RING EXTENSION
  • 9
    7043057 SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)
    SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)
  • 10
    7556227 WASHER THRUST
    WASHER THRUST
  • 11
    3234033 SPACER
    SPACER
  • 12
    3234228 SCREW SET HEXAGON SKT
    SCREW SET HEXAGON SKT
  • 13
    3234229 NUT 1/4-20 UNC CROWN LOCK
    NUT 1/4-20 UNC CROWN LOCK
  • 14
    5246217 PLATE WINDAGE STAT
    PLATE WINDAGE STAT
  • -
    1322433 DRIVEN CLUTCH ASSY (INCL. 3, 5-8, 10-13)
    DRIVEN CLUTCH ASSY (INCL. 3, 5-8, 10-13)
