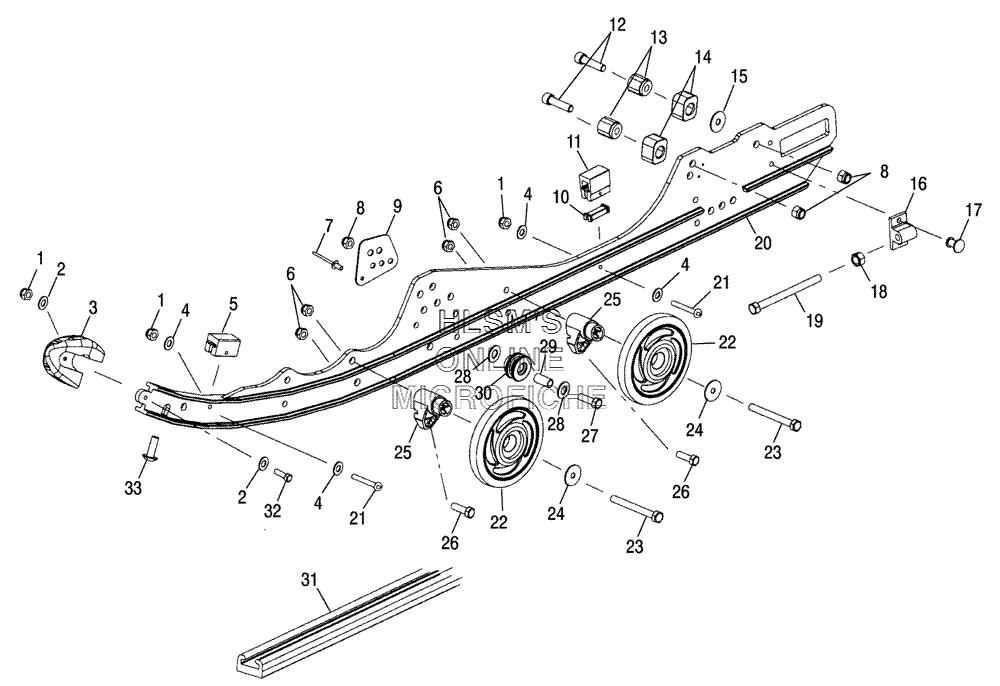

RAIL ASSEMBLY W/ IDLER WHEELS (EDGE) для Polaris SuperSport (S06NP5BSB) - 2006 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555792 WASHERWASHER
-
35434374 CAP RAIL TIPCAP RAIL TIP
-
47555783 WASHER, FLATWASHER, FLAT
-
55521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
67542324 NUT, NYLOKNUT, NYLOK
-
77661845 RIVETRIVET
-
87542439 NUT, NYLOKNUT, NYLOK
-
95244677 BRACKET, RAIL REINFORCEDBRACKET, RAIL REINFORCED
-
105432946 LINER, BUMPERLINER, BUMPER
-
115521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
127515537 BOLTBOLT
-
135131113 MOUNT, BUMPERMOUNT, BUMPER
-
145410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
155244371 SPACERSPACER
-
165132444 BLOCK, IDLER BOLT ADJUSTMENT (7/16)BLOCK, IDLER BOLT ADJUSTMENT (7/16)
-
177621501 RIVETRIVET
-
187547156 NUTNUT
-
197517773 SCREW HEXAGON HEADSCREW HEXAGON HEAD
-
201541755 RAIL ASSY, 121 (LEFT) (INCL. 3, 5, 11, 14, 16)RAIL ASSY, 121 (LEFT) (INCL. 3, 5, 11, 14, 16)
-
201541756 RAIL ASSY, 121 (RIGHT) (INCL. 3, 5, 11, 14, 16)RAIL ASSY, 121 (RIGHT) (INCL. 3, 5, 11, 14, 16)
-
217510504 SCREWSCREW
-
221590275-293 WHEEL SCROLLED, ASSY 5.35 (INDY RED)WHEEL SCROLLED, ASSY 5.35 (INDY RED)
-
221590275-446 WHEEL SCRLLD, ASSY 5.35 (COSMIC SUN)WHEEL SCRLLD, ASSY 5.35 (COSMIC SUN)
-
227718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
223514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
237515346 SCREWSCREW
-
247556179 WASHER SPRING, CONWASHER SPRING, CON
-
255631065 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
267515317 BOLTBOLT
-
277515438 BOLTBOLT
-
287555983 WASHER FLATWASHER FLAT
-
295333948 SPACERSPACER
-
305433959 ROLLER SPRING, SQUAREROLLER SPRING, SQUARE
-
315521571 SLIDER, XL SERVICE BASICSLIDER, XL SERVICE BASIC
-
327511975 SCREWSCREW
-
337515199 SCREWSCREW
