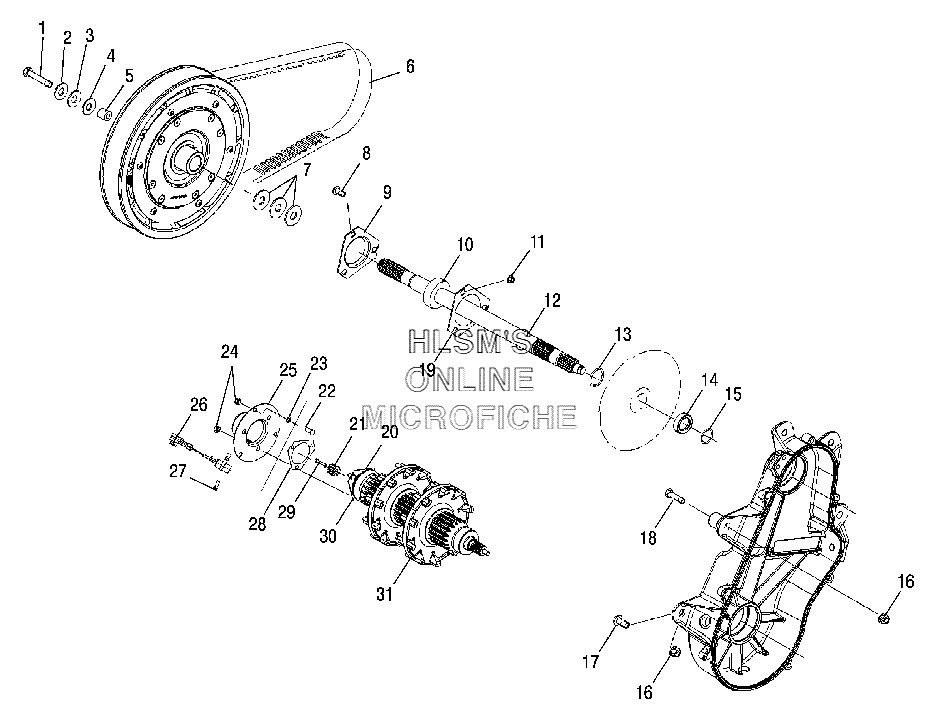

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 600 HO Switchback (S06PS6FS) - 2006 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55134371 SPACER-INPUT SHAFTSPACER-INPUT SHAFT
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77555957 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
95247680 FLANGETTE-.100 OFFSETFLANGETTE-.100 OFFSET
-
103514352 BEARINGBEARING
-
117542343 NUT, FLANGENUT, FLANGE
-
121332336 JACKSHAFT ASSY. W/BEARING (15/21 SPLINE) (INCL. 10)JACKSHAFT ASSY. W/BEARING (15/21 SPLINE) (INCL. 10)
-
137710422 RING, RETAININGRING, RETAINING
-
145135231 SLEEVE-SEAL, 45 DEGREE CHAMFERSLEEVE-SEAL, 45 DEGREE CHAMFER
-
155410613 O RINGO RING
-
167547180 NUT-FLANGEDNUT-FLANGED
-
177518494 BOLT-CARRIAGEBOLT-CARRIAGE
-
187518268 BOLT-CARRIAGEBOLT-CARRIAGE
-
195222751 FLANGETTEFLANGETTE
-
203514448 BEARINGBEARING
-
215240013 WHEEL-PICKUP, SPEEDO (9 TEETH)WHEEL-PICKUP, SPEEDO (9 TEETH)
-
227518049 BOLT-CARRIAGEBOLT-CARRIAGE
-
237547030 PALNUTPALNUT
-
247542324 NUT, NYLOKNUT, NYLOK
-
255246960 HOUSING-DRIVE PICKUPHOUSING-DRIVE PICKUP
-
262410376 SENSOR-SPEED PICKUPSENSOR-SPEED PICKUP
-
277512232 BOLTBOLT
-
285811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
297516733 SCREWSCREW
-
301014299 FLANGETTE ASSY W/SCREWSFLANGETTE ASSY W/SCREWS
-
311590411 DRIVESHAFT TUBULAR ASSY (9 TEETH)DRIVESHAFT TUBULAR ASSY (9 TEETH)
