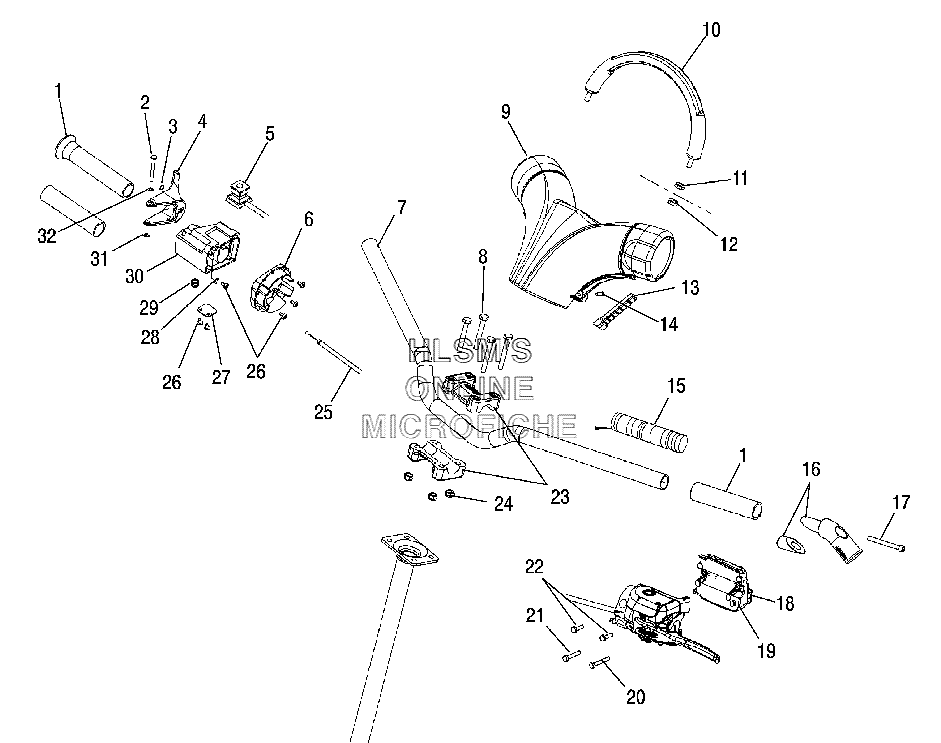

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 600 HO Switchback (S06PS6FS) - 2006 года выпуска
-
№АртикулНазвание
-
15435394-070 GRIP-HANDLEBAR (BLACK)GRIP-HANDLEBAR (BLACK)
-
27661624 PIN-RETAININGPIN-RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45432970 THROTTLE, LEVER, 35.5MMTHROTTLE, LEVER, 35.5MM
-
42010171 LEVER ASSY, HEATER, HI/LO 35.5MMLEVER ASSY, HEATER, HI/LO 35.5MM
-
54110106 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
65433345 ADAPTER-BLOCK, THROTTLEADAPTER-BLOCK, THROTTLE
-
71821463-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
87517238 SCREWSCREW
-
95434990-070 COVER-HANDLEBAR (BLACK)COVER-HANDLEBAR (BLACK)
-
105243396-070 BAR-MOUNTAIN (BLACK)BAR-MOUNTAIN (BLACK)
-
107517672 STUD, CAP W/THRU HOLESTUD, CAP W/THRU HOLE
-
117547107 NUTNUT
-
127542344 NUT, NYLOKNUT, NYLOK
-
297512465 SCREW, SETSCREW, SET
-
305431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
317710401 RING, RETAININGRING, RETAINING
-
327555730 WASHERWASHER
-
135434959-070 SLIDE-HANDLEBAR COVER (BLACK)SLIDE-HANDLEBAR COVER (BLACK)
-
144010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
152461239 HEATER-GRIP, LO/MED/HI, SHORTHEATER-GRIP, LO/MED/HI, SHORT
-
161253274-070 HOOK, HANDLEBAR 45DEG (BLACK)HOOK, HANDLEBAR 45DEG (BLACK)
-
177517834 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
185433291 BUTTON SWITCH HI/LO (LEFT)BUTTON SWITCH HI/LO (LEFT)
-
192010237 CONTROL ASSY. (LEFT)CONTROL ASSY. (LEFT)
-
207517566 SCREW, 1.50SCREW, 1.50
-
217512078 SCREW, 1.12SCREW, 1.12
-
227517441 SCREW, .75SCREW, .75
-
235630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
247542122 NUT-NYLOKNUT-NYLOK
-
257080867 CABLE, THROTTLECABLE, THROTTLE
-
267511848 SCREWSCREW
-
275432261 HOLDER-WIREHOLDER-WIRE
-
287555727 WASHERWASHER
